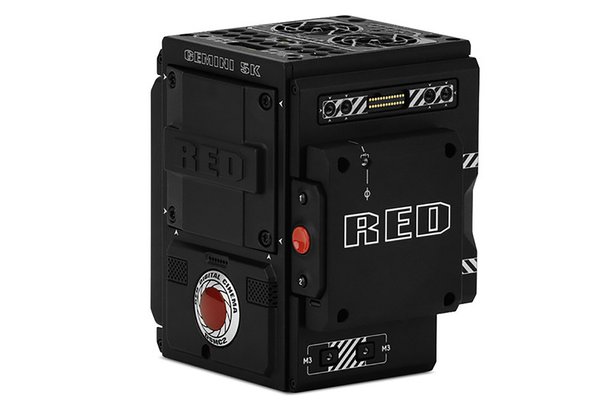

The RED DSMC2 GEMINI 5K S35 Brain is a cinema-quality, modular camera brain featuring a 5K, Super 35, dual-ISOsensor for improved sensitivity in low-light conditions. This version is housed in a new unified DSMC2 brain. Key features include:

  • 5K, Super 35, dual-ISOCMOS sensor

  • Frame rates up tp to 96fps at 5K & 300fps at 2K

  • Full-sensor 4K ProRes & DNx

  • Fully compatible with RED DSMC2 components

What’s New? RED cites “better data rates and REDCODEsettings” in the DSMC2 Gemini, but in practice, this does not change options for resolution, frame rate, or REDCODEcompression from the previous Epic-W Gemini 5K S35 brain. Barring future firmware that further distinguishes the two, this is a change in name only.

New 5K, Super 35 CMOS Sensor. The RED DSMC2 GEMINI5K S35 Brain introduces a new dual-sensitivity sensor capable of recording high frame rate footage in REDCODERAW at up to 96fps with a reported 16.5 stops of dynamic range. Cropping the sensor to 2K allows for video frame rates to be extended to 300fps. The sensor measures 35.61mm diagonally and renders 15.4 megapixels of resolution for a slightly wider field-of-view when compared to previous Helium and Dragon sensors.

Dual ISO Sensitivity. RED joins Panasonic in offering a sensor with the ability to operate in two different sensitivity modes. Use the standard ISO 800 mode to preserve every bit of detail in brightly lit scenarios, or switch to low-light mode to render less noise and more shadow detail in exchange for a slight clipping of highlights at ISO 3200.

High Data Rates. The DSMC2 GEMINI can handle 300 MB/s transfer rates, which allows you to record REDCODE RAWfiles at the highest quality while also recording ProRes and DNx proxy files in 422 HQ, 422, and 422 LT at 4K resolutions. 4K ProRes and DNx files maintain full sensor readout with no cropping.

Greater Versatility. The new DSMC2 unified brains feature the DSMC2 Interchangeable OLPF system. This means that you can optimize your footage for your environment by swapping out the optical low pass filter. We send the DSMC2 Standard OLPF installed for balanced shooting, but we also rent the Skin Tone-Highlight and Low-Light Optimized OLPFs as add-ons.

Semi-Backwards Compatible. A fully redesigned brain also means support for some components/accessories has been dropped. Any RED component labeled DSMC2 is fully compatible, and we include the DSMC2 Lemo A Adapter to retain compatibility with original DSMC Touch LCDmonitors.

Additional Items Required. This rental only includes the brain with an integrated media bay. At a minimum, you’ll need the following additional items to operate this camera:

Brand

RED

Camcorder Type

Cinema

Camera Type

Camcorder

Imaging

Maximum Resolution

  • 5120 × 3000
Sensor
  • Type: Super 35, CMOS
  • Size: 30.72 × 18.00 mm (35.61mm diagonal)
  • Color Filter: Bayer
  • Shutter Type: Rolling
Crop Factor
  • Approximately x 1.22
ISO
  • Dynamic Range: 16.5 Stops
  • Sensitivity: 800 – 3200
  • Base ISO: 800 and 3200



Inputs/Outputs

Audio Inputs

  • 3.5mm (1/8") stereo mini-jack
Audio Output
  • 3.5mm (1/8") stereo mini-jack
Video Out
  • HDMI Type-A
  • BNC 3G-SDI
Additional Inputs/Outputs
  • Sync: 1 × 4-pin 00B LEMO socket
  • Control: 1 × 4-pin 00B LEMO socket
  • DC In: 6-pin 1B LEMOsocket



Item Type

Camera

Physical

Dimensions (W x H x D)

  • 4.57 × 4.76 × 1.50″
Weight
  • 7.16 oz
Accessory Mounts
  • Tripod Base: ¼-20 and ⅜-16
  • Additional: M3 and ¼-20



Recording

Formats

  • Video: REDCODERAW, ProRes, DNx
  • Audio: 2-Channel 24-Bit 48.0 kHz
Modes
  • REDCODE RAW: 5120 × 3000 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60 fps
  • ProRes422HQ 4:2:2: 4096 × 2160 at 23.98, 24, 25, 29.97 fps
  • ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
  • ProRes422 4:2:2: 4096 × 2160 at 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
  • ProRes422HQ 4:2:2: 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
  • DNxHR 4:2:2 12-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps, 2048 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
  • DNxHR 4:2:2 8-Bit: 4096 × 2160 at 23.98, 24, 25, 29.97 fps
  • DNxHD 4:4:4 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
  • DNxHD 4:2:2 10-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
  • DNxHD 4:2:2 8-Bit: 1920 × 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
Media
  • Mini-Mag

RED Brain - DSMC2 Gemini 5K S35

RED - DSMC AC Power Adapter

RED - DSMC2 SSD Module for Weapon

Charger - 3 Prong Universal Power Cord 6ft

RED - DSMC2 OLPF Case - Standard

RED - DSMC2 Base Expander

RED - DSMC2 Lemo Adapter A
