Canon EOS C500 Mark II 5.9K Full-Frame Camera (EF)
becomes available?

Want to add more than this item? Head to our waitlist builder

×

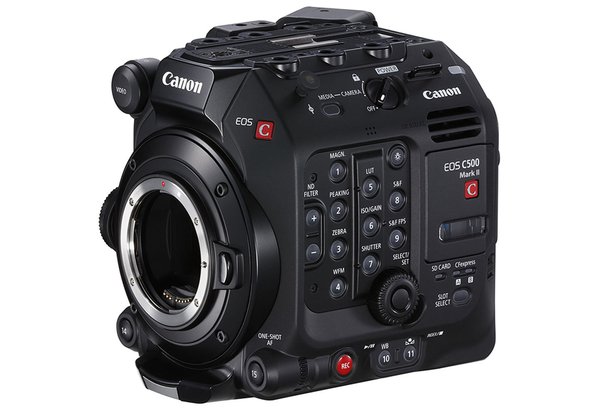

Canon EOS C500 Mark II 5.9K Full-Frame Camera (EF)

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$635.00

Shipping
Included*

*up to 2nd day air - overnight available

The C500 Mark II is a cinema-quality camera with a 5.9K, full-frame sensor that is capable of recording Canon Cinema RAW Light to dual CFexpress media slots. Key features include:

  • 20.8MP, 5.9K, full-frame, CMOS sensor

  • Internal, 12-bit Canon RAW Light to dual CFexpress media slots

  • 4.3-inch touchscreen LCD monitor included

  • EF-mount lens compatibility

Remember the C500? The Canon EOS C500 Mark II 5.9K Full-Frame Camera (EF) is an update to the Canon C500 in name only. This camera is better described as a mashup of the Canon EOS C200 Cinema Camera and the Canon C700 Full Frame camera. Body styling definitely trends toward the C200 with many of the professional features from the C700 Full Frame, including that beautiful 5.7K sensor, squeezed into the smaller form factor.

Affordable Full-Frame Cinema. The likes of ARRI and Sony have already entered the full-frame cinema camera race with their Alexa Mini LF and Sony Venice cameras, but those rentals may price out budget-minded shooters. The C500 Mark II and its 5.9K full-frame CMOS sensor offers the full-frame look at roughly a quarter of the price.

Canon Color & Autofocus. The staples that have made Canon Cinema series cameras a mainstay in documentary and indie filmmaking are still found in the C500 Mark 2. The 20.8MP sensor has 80% coverage for top-of-its-class dual-pixel autofocus, and Canon’s always-dependable color science makes grading your images quick and simple.

Introducing CFexpress Media. This camera features dual CF express media slots. The form factor of this media is the same as XQD but features maximum write speeds around 1200 MB/s. For the C500 Mk II, that means internal 12-bit recording in Canon’s Cinema RAW Light codec at up to 59.94 fps. There is also an SD slot for recording XF-AVC 4:2:2 10-bit files or 8-bit XF-AVC proxies.

Canon EF Lens Mount. This C500 Mark II is compatible with all of Canon’s servo-zooms, EF Cinema, and EF lenses—over 100 lenses, including compact primes, super telephotos, specialty tilt-shifts, macros, and fisheyes. Please note that you’ll need to set the camera to a cropped sensor mode to use some cine and EF-S lenses.

Please read the manual here.

Q & A

Do you carry this camera in other mounts?

  • Yes! We also carry the Canon EOS C500 Mark II 5.9K Full-Frame Camera in PL and Locking EF-C mounts.


Brand

Canon

Camera Type

Camcorder

Imaging

Sensor

  • Type: CMOS
  • Effective Pixels: 18.69 MP
Maximum Resolution
  • 5952 × 3140
Bit Depth
  • Raw: 10-bit/12-bit
  • XF-AVC: 4:2:0 8-bit



Inputs/Outputs

Audio Inputs

  • 2x XLR 3-pin
  • MIC (3.5mm mini-jack)
  • Monaural mic
Audio Output
  • Headphone out (3.5mm mini-jack)
Video Outputs
  • 12G/HD-SDI (BNC)
  • Monitor Out (BNC)
  • HDMI (Type A)
Additional Inputs/Outputs
  • USB
  • Remote (2.5mm sub-mini jack)
  • Video terminal (Canon monitors)
  • Remote



Item Type

Camera

Monitoring

LCD Panel

  • 4.3” capacitive touchscreen
  •

Mount

Canon EF

Physical

Dimensions (WxHxD)

  • Camera Unit: 6.0 × 5.8 × 6.6 in.
Weight
  • Camera Unit: Approximately 3.8 lbs.
Accessory Mounts:
  • Tripod: ¼”-20 & ⅜”-16 threaded holes
  • Additional: ¼”-20 threaded holes (camera bottom) (3x), ¼”-20 threaded holes (camera top) (8x)



Power Supply

AC Adapter

  • AC-E19
Battery
  • Type: BP-A30 (available separately)/BP-A60 (included)



Recording

Media

  • CFexpress (Cinema Raw Light/XF-AVC) (2x)
  • SDXC (MP4/XF-AVC) (1x)
Formats
  • Video: RAW: Cinema RAW Light, XF-AVCMPEG-4 AVC/H.264
  • Audio: Linear PCM (24 bit – 48kHz; 4-channel recording)

Canon EOS C500 Mark II 5.9K Full-Frame Camera (EF)

AC Adapter - Canon CA-CP200B Compact Power Adapter

AC Adapter - Wooden 15v 10A XLR4

Adapter - Canon C500 Mark II Standard EF

Battery - Canon BP-A60

Canon EF Body Cap

Charger - 3 Prong Universal Power Cord 6ft

Charger - Canon CG-A20

Charger - Non-Polarized Cable

Hardware - C200 Mic Mount Screws for Canon

Hardware - Canon C Series

Video Support - Canon GR-V1 Cable Lock (C200/ C500 II)

Video Support - Canon GR-V1 Camera Grip (C200/ C500 II)

Video Support - Canon HDU-2 Top Handle w/ Mt Base (C500 II)

Video Support - Canon LA-V1/V2 Camera Arm (C200/500 II)

Video Support - Canon LM-V2 4.3-inch LCD Monitor

Video Support - Canon Mic Mount v2

Video Support - Canon UN-5 Unit Cable

Video Support - LA-V2 LCD Attachment Unit (C500 II) for Canon
