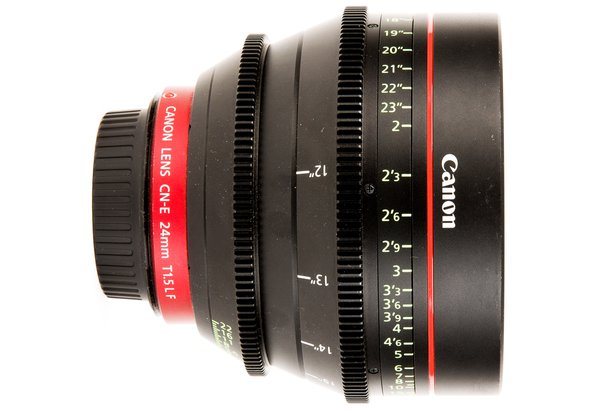

The Canon CN-E 24mm T1.5 L F Cine is a fast-aperture lens designed for cine-applications. Key features include:
Optimized for 4K
Upgraded, extremely sharp optics
Geared focus and aperture rings
Canon EF Mount
4K-Ready. Based around the popular Canon 24mm f/1.4L, the CN-E 24mm offers extremely sharp optics in a traditional video-lens housing. It features upgraded optics and coatings that have been optimized for cinema use, with resolving power all the way up to 4K. The 11-blade stepless aperture diaphragm accommodates minute exposure adjustments with pleasing bokeh and out-of-focus highlights.
Geared Rings. Both focus and aperture rings are geared, allowing the use of any standard follow focus, with easily visible markings for controlling focus and aperture from behind the camera. It offers a focus-rotation angle of approximately 300 degrees, allowing for long focus throws.
Canon EF Mount. Its standard Canon EF mount makes the CN-E 24mm compatible with a wide variety of cameras from the EOS C200 EF and C300 Mark II EF to full-frame Canon DSLRs like the EOS 5D Mark IV and 1DX Mark II.
Product Category
EF Cinema lenses, Prime Series
Product Series
CN-E24mm T1.5 L F
Mount Type
EF
Angular Field of View
1.78:1 24.6 x 13.8mm |
54.3° x 32.1° |
1.5:1 36.0 x 24.0mm |
73.7° x 53.1° |
Number Of Blades
11
Maximum Photometric Aperture T Number
1:1.5
MOD From Front of Lens
12" / 0.3m
Scene Object Dimensions at MOD
1.78:1 24.6 x 13.8mm |
19.7 x 11cm |
1.5:1 36.0 x 24.0mm |
28.8 x 19.2cm |
Size Length mm mod1
4.66 x 4.66 x 4.00 in. / 118.4 x 118.4 x 101.5mm
Weight1
2.65 lb. / 1.2 kg
Front Diameter
Ø114mm
