Sony BRC-AM7 4K60 PTZ Camera

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$604.00

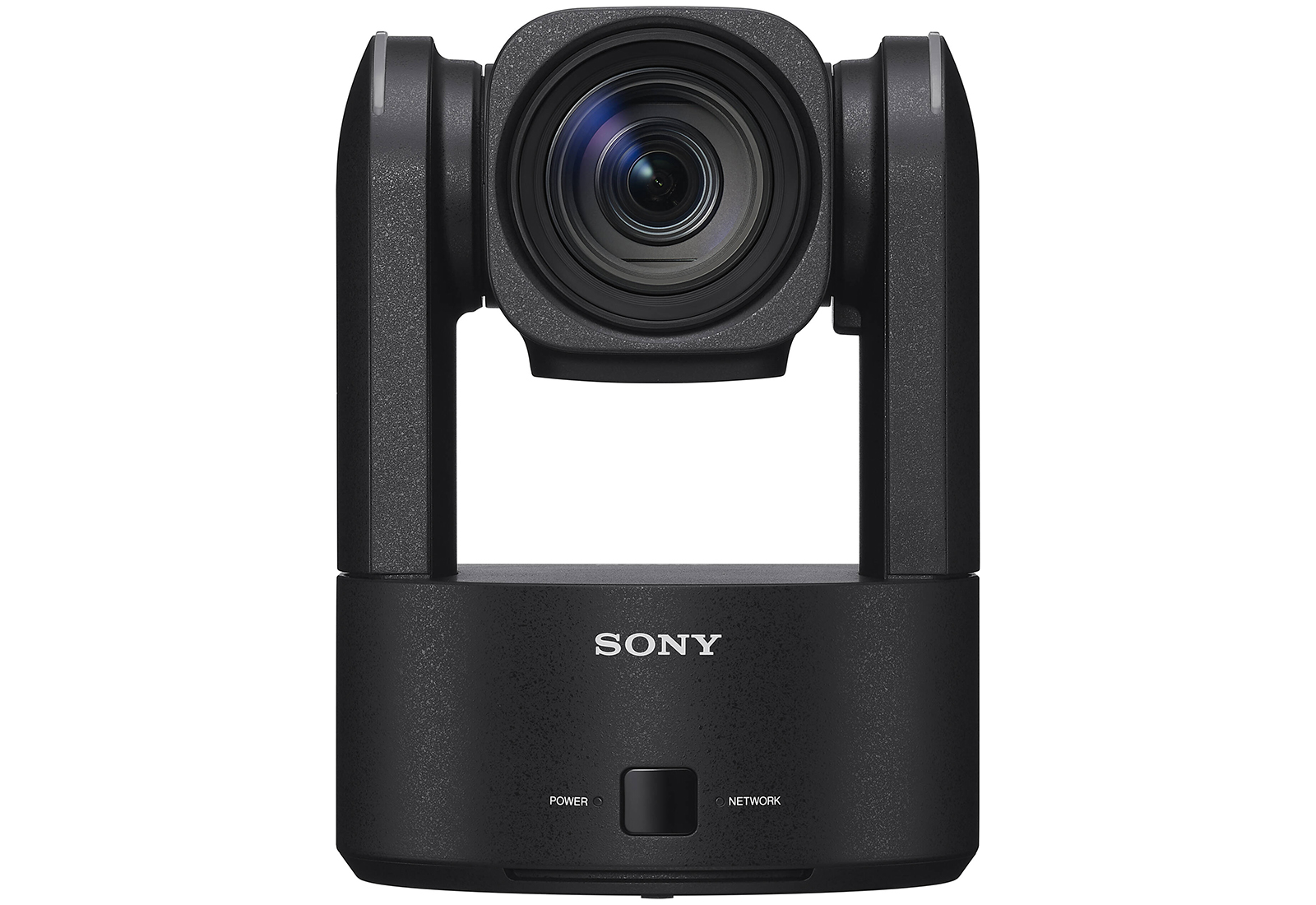

The Sony BRC-AM7 4K60 PTZ Camera is an ultra-high quality compact camera designed to automate camera movements in live settings. Key features include:

Up to 4K60 video recording
Built-in 24-480mm lens
Supports S-Log3, S-Cinetone, and 709/709tone formats
Supports timecode input, genlock, tally, and PoE++

AI Tracking. The Sony BRC-AM7 4K60 PTZ Camera is a compact camera that can take care of all your camera movements automatically. Using AI analytics to identify subjects and poses and a powerful image-processor to enhance tracking, the BRC-AM7 can automatically and effectively adjust pan, tilt, and zoom to track subjects in motion, great for performances, sporting events, and more.

Built-In Lens. The integrated lens is good for 24-480mm—that’s 20x optical zoom! Digitally, it can go even further – at 4K, 30x zoom provides an equivalent 720mm, or 40x at 1080p, a whopping 940mm!

Function and Form. This PTZ camera, while great for taking care of numerous shooting scenarios, also provides support for recording formats like S-Cinetone, S-Log3, and 709/709tone, offering advanced post processing control.

Stay Connected. The BRC-AM7 supports HDMI, 12G-SDI, 3-pin XLR connectors (two of them!), a 3.5mm stereo jack, Power over Ethernet, and an extra 3G-SDI output for monitoring. Your power options include PoE++ or the 4-pin XLR input. Oh, and you get Timecode and Genlock inputs!

Q & A

Is there anything I need to know about powering this camera?

Yes! If you’re powering the camera over ethernet, you won’t be able to use the internal clip recording or playback, media initialization or update, and OPTICAL output features. You’ll need to use the included AC adapter to use those features.
Do not connect a DC power cable to the camera’s DC IN connector when using PoE++ power delivery with soft authentication (LLDP) enabled.

Resources

Autofocus	Hybrid
Brand	Sony
Built-In Flash/LED	No
Camera Mount	None
Camera Type	PTZ
Compatible Media	CFexpress Type A and SD
Dimensions	8.9 × 7.6 × 6.6″ (W x H x D)
ISO Range	250-16000
Item Type	Camera
Maximum Frame Rate	59.94 FPS
Maximum Photo Resolution	14.0 MP
Maximum Video Resolution	4K
Media Slots	2
Mfr. Model Number	BRC-AM7B
Screen Type	None
Sensor Size	1-Inch
Shutter Type	Electronic
Stabilization	No
Supported Interface	BNC (3G-SDI), BNC (12G-SDI), 3.5mm Microphone, XLR, Timecode, Genlock, HDMI-A, RJ45, and SFP+
Tripod Mount	1/4-20 and 3/8-16
Viewfinder Type	None
Weather Sealing	No
Weight	8.2 lb.
Wireless Connectivity	None
