Sony SRG-A40 4K PTZ w/ AI & 40x Zoom

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$170.00

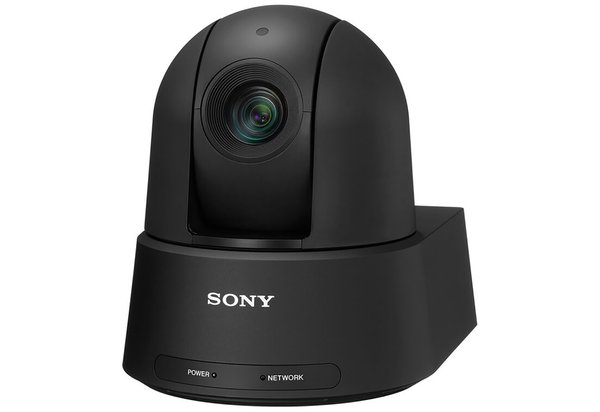

The Sony SRG-A40 4K PTZ w/ AI & 40x Zoom is a comprehensive PTZ camera with NDI|HX and VISCA protocol support designed to automatically frame and track your subject within frame. Key features include:

Up to UHD 4K resolution at 29.97 fps
Built-in AI framing & tracking analytics
Wide 70° angle of view
340° pan and 110° tilt

Comprehensive PTZ Solution. The Sony SRG-A40 4K PTZ w/ AI & 40x Zoom boasts a 1/2.5" Exmor R CMOS sensor that comes equipped with 40x Clear Image Zoom. This camera is capable of framing and tracking a subject within the frame using AI technology that triggers the camera to move where your subject moves. This technology completely removes the need for a person to manually follow their movements, and even detects and tracks your subject even when others are in frame.

Shooting Modes. You can choose from three shooting modes that best suit your setup, including Full Body, Waist, and Close Up modes. Each mode provides center, left, and right angles!

Tally Light and Zoom. This camera provides a built-in tally lamp that indicates shooting status and changes colors from red (On Air) to green (Auto Framing On), and a 30x UHD 4K and 40x HD Clear Image Zoom that increases the magnification without reducing resolution.

Camera Movements and Presets. The pan and tilt functions on this camera are speedy and precise, and thanks to AI technology, which also moves the pan and tilt where your subject goes. You can instantly store and recall up to 256 preset camera positions, and output high quality still images while simultaneously streaming UHD 4K video. Integrated imaging tools like Autofocus, Auto Exposure, and Auto White Balance provide professional looking results without needing manual exposure adjustments. The SRG-A40 supports the VISCA protocol as well as NDI|HX.

Audio Recording	2-Channel AAC LC Audio
Brand	Sony
Camera Mount	None
Camera Type	PTZ
Compatibility	Windows 10 to 11 (64-Bit Only) macOS 11 to 12
Compatible Media	External Storage
Control	Presets 256 via CGI 100 via VISCA Move Speed Pan: 0.5 to 300°/sec Tilt: 0.5 to 126°/sec Movement Range Pan: 340° (-170 to 170°) Tilt: 110° (-20 to 90°) Tally Light Yes Supported Control Protocols IR RS-422 VISCA
Environmental	Operating Temperature 32 to 72°F Storage Temperature -4 to 140°F
Exposure Control	Shutter Type Electronic Rolling Shutter Shutter Speed 1/10000 to 1 Second Gain 0 to 48 dB Minimum Illumination 1.6 Lux at 1/30 Shutter Speed Flip / Mirror Support Image Flip White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors
External Video Recording Modes	4:4:4/4:2:2 8-Bit via HDMI 3840 × 2160 at 23.98/25/29.97 fps 1920 × 1080p at 23.98/25/29.97/50/59.94 fps 1920 × 1080i at 50/59.94 fps 1280 × 720 at 50/59.94 fps SDI/BNC / RJ45 3840 × 2160 at 23.98/25/29.97 fps 1920 × 1080p at 23.98/25/29.97/50/59.94 fps 1920 × 1080i at 50/59.94 fps 1280 × 720 at 50/59.94 fps
General	Sound Level NC30 (at Full Speed) Dimensions (W x H x D) 6.2 × 7.2 × 7.9″ Weight 4.4 lb
Imaging	Image Sensor 1/2.5"-Type CMOS Horizontal Resolution (TV Lines) 1700 TV Lines Sensor Resolution Effective: 8.5 Megapixel IR Cut Filter Yes Built-In ND Filter None Focus Control Autofocus Manual Focus
Interface	Video I/O 1 x HDMI Output 1 x BNC (3G-SDI) Output 1 x RJ45 Output Audio I/O 1 × 1/8" / 3.5 mm TRS Stereo Microphone Input Other I/O 1 x RJ45 (RS-422, VISCA) Control Input 1 x RJ45 (RS-422, VISCA) Control Output 1 x RJ45 (LAN) (Shared with Video Output)
Item Type	Camera
Lens	Focal Length 4.4 to 88mm Optical Zoom Ratio 20x Max Digital Zoom 30x ( in DCI 4K) 40x ( in 1080p) Field of View Horizontal: 70° Maximum Aperture f/2 to 3.8 Minimum Focus Distance Wide: 3.1" Telephoto: 31.5"
Maximum Video Resolution	4K
Mounting	1 × 1/4"-20 Female for Tripod
Power	PoE Support PoE++ 802.3bt Power I/O 1 x Barrel (19.5VDC) Input Power Consumption Device: 80 W PoE: 71.3 W
Screen Type	None
Sensor Size	1-Inch
Stabilization	Yes
Video Capture	Broadcast Output NTSC/PAL IP Streaming H.264, H.265, RTP, RTSP, SRT, TCP, UDP 3840 × 2160 at 60p (0.5 to 50.00 Mb/s) 1920 × 1080 at 60p (0.5 to 50.00 Mb/s) 1280 × 720 at 60p (0.5 to 50.00 Mb/s) 640 × 360 at 60p (0.5 to 50.00 Mb/s) IP Multi-Stream Support Simultaneous H.264, H.265, RTP, RTSP, TCP, UDP: UHD 4K, 1080p, 720p, 360p at 60p
Viewfinder Type	None
Weather Sealing	No
Wireless Connectivity	Wi-Fi
