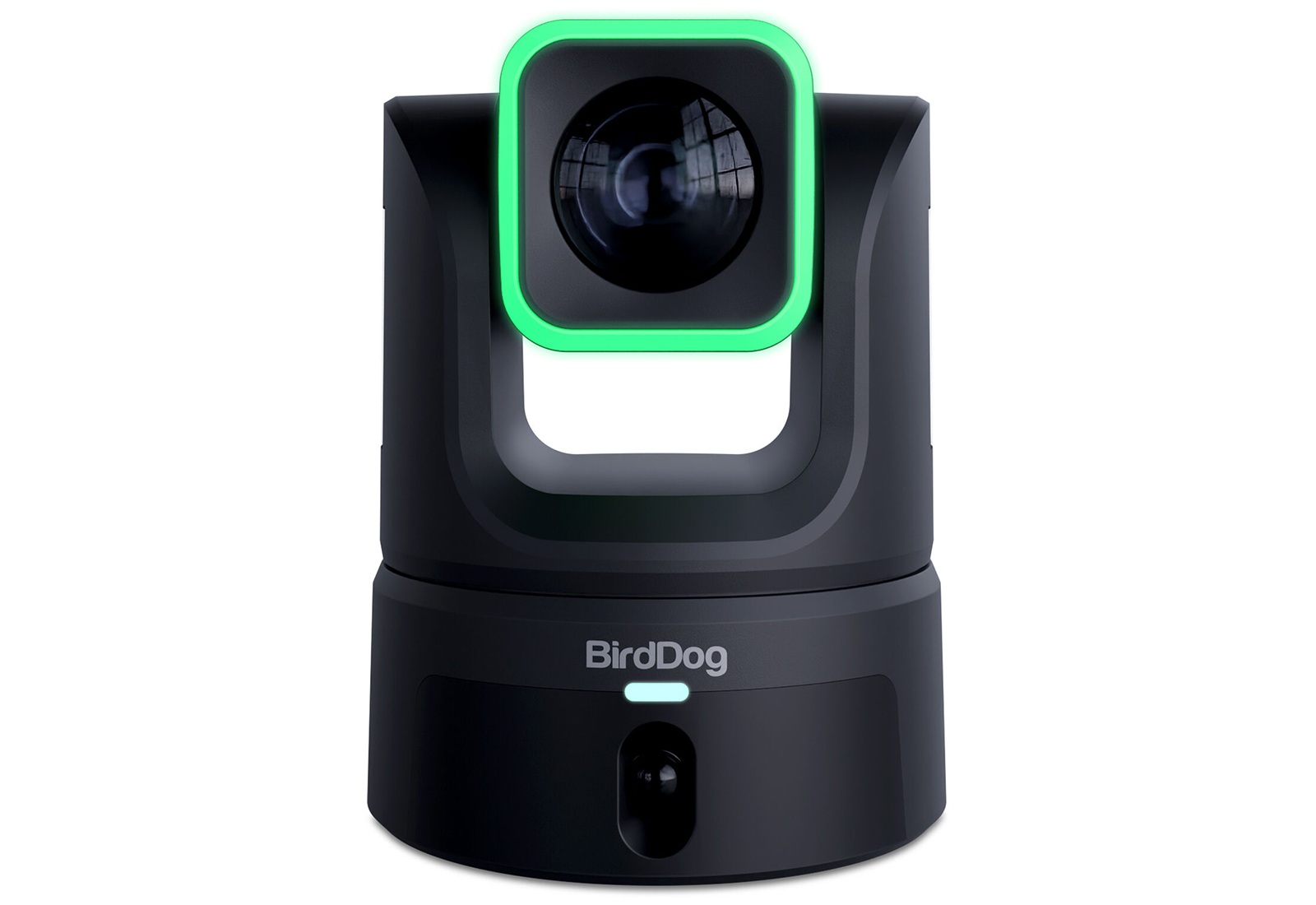

BirdDog XL Ultra PTZ Camera (Black)

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$337.00

The BirdDog XL Ultra PTZ Camera (Black) is a versatile, high-quality PTZ solution equipped with next-gen AI capabilities, primary and secondary cameras, and a 9.8-186mm lens for a variety of broadcast applications. Key features include:

Dual 4K60 simultaneous output
12/3G-SDI and HDMI connectivity
Balanced XLR audio connectivity
1GbE adaptive Ethernet port with PoE++

Dual Camera PTZ XL-ence. Take your broadcast, meeting, or conference to the next level with the XL Ultra PTZ Camera from BirdDog! Featuring dual-camera action, this PTZ is equipped with a primary camera with a large 4/3" 20.89MP image sensor, and a secondary 100° panoramic camera with a 1/1.8" Sony CMOS sensor.

Next-Gen AI. No camera operator? No problem! This PTZ solution offers an AI tracking engine designed to follow your subject with smooth, human-like camera motions. You have complete control over speed, style, and sensitivity, which can be maintained through the NDI PTZ Control App for iOS and Android, or with the separately available BirdDog KBD PTZ Controller with Integrated Screen.

Broad Connectivity. The XL Ultra delivers dual 4K60 simultaneous outputs through any two of its many connection ports, which include 12G- and 3G-SDI BNC connectors, HDMI, high-bandwidth NDI with SpeedHQ, and SFP+ with 12G-SDI and standard SFP. With full NDI support, you can output NDI High-Bandwidth and NDI HX simultaneously to deliver high-quality feeds to production, all while sending bandwidth-friendly streams to remote contributors, backup systems, or live web platforms without sacrificing quality.

Q & A

Does the XL Ultra support H.265 internal recording?

The XL Ultra supports H.265/HEVC encoding for network streaming and transport protocols such as NDI|HX3, RTSP, and RTMP. However, as of firmware version 6.2.38 internal microSD recording is limited to H.264.

Are the cameras capable of simultaneous Full NDI output?

Yes, but no. Both of the integrated cameras can output NDI High Bandwidth (Full NDI), but not simultaneously. In addition to this, the XL Ultra cannot stream Full NDI directly from the camera, and will require a software like OBS or vMix to stream the NDI High Bandwidth signal.
For simultaneous output from both cameras, this camera also supports NDI|HX/HX3 streaming and HDMI/SDI output!

Are there really two cameras in the XL Ultra?

Believe it or not, yes! Basically, there’s the main PTZ camera with a 4/3" CMOS sensor, and a secondary built-in stationary 100° panoramic camera with a 1/1.8″ sensor. Both cameras shoot in 4K60, are independently controllable, and can output at the same time.

Resources

Brand	BirdDog
Camera Mount	None
Camera Type	PTZ
Compatible Media	microSD
Dimensions	8.6 × 11.5 × 10.4″
Field of View	Vertical: 40 to 2° Diagonal: 79 to 4.5°
Focal Length	9.8 to 186mm
Focus Type	Autofocus, Manual Focus
I/O Connectivity	Ethernet, HDMI, SDI, and XLR
Item Type	Camera
Maximum Aperture	2.8 to 4.5
Maximum Power Consumption	40 W
Maximum Video Resolution	4K
Operating Temperature	32 to 104°F
Pan and Tilt	Pan: 170° (-30 to 90°) at 0.05 to 120°/s Tilt: 170° (-30 to 90°) at 0.05 to 90°/s
Power	PoE++ 802.3bt 1x Barrel (12VDC at 5 A)
Screen Type	None
Secondary Camera	Image Sensor: 1/1.8"-Type CMOS Focal Length: 4.4mm Horizontal Field of View: 85° Vertical Field of View: 53° Diagonal Field of View: 93° Aperture: 2
Sensor Size	4/3
Viewfinder Type	None
Weather Sealing	No
Weight	8.8 lb
Wireless Connectivity	None
Zoom	Max Optical: 20x Max Digital: 16x
