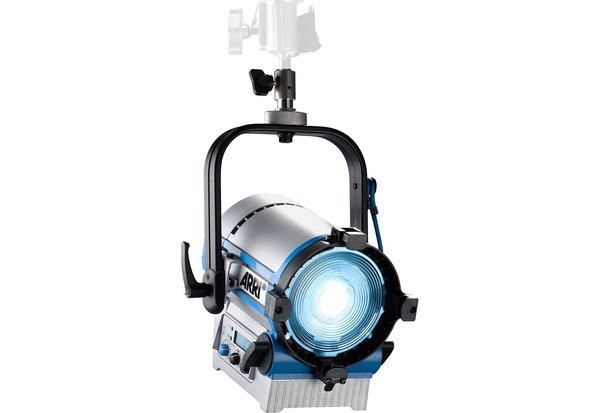

The ARRI L5-C 5-inch LED Fresnel is a compact but high-quality fresnel fixture with a beam angle that’s adjustable between 14- and 50-degrees and capable of full-RGB light output. Key features include:

  • LED fresnel fixture with a 14° to 50° adjust able beam angle

  • 2800 to 10,000K color temperature selection

  • Full-RGB capable with CRI 95 accuracy and 100-0% dimming

  • Includes yoke with 5/8" baby receiver

Fully Tunable LED Fresnel. The ARRI L5-C 5-inch LED Fresnel is a can adjust correlated color temperature between 2800K and 10,000K with accurate color rendition of CRI 94. It uses the full RGB+W color gamut with hue and saturation control for precision adjustments. If you’re lighting for blue or green screen, you can achieve full plus and minusgreen correction by simply turning a knob on the light. The fresnel mechanism is completely mechanical with adjustments made by familiar ARRI focus knobs.

Compact & Bright. This small fresnel fixture is 45% brighter than a traditional 300 W fresnel lamp with 134 lux/12 fc at its widest from 16-feet, but only consumes 115 W. The fixture offers this high output from housing that measures just 16 inches long and weighs around 11 pounds.

Baby Pin Receiver. This light features an integrated yoke with a combination 1-1/8" junior pin and 5/8" baby receiver.

Power Cable with Switch. Our rental includes a 23-foot ARRI power cord with an in-line power switch. The power input on the light itself uses the common powerCON connector and accepts 90 to 250 VAC or 22 to 36 VDC. The light can take battery power via a 4-pin XLR input.

Q & A

  • How is this fixture mounted?
    • The L5-C features an integrated yoke with a combination 1-1/8" junior pin and 5/8" baby receiver.

  • How is this fixture powered?
    • The L5-C includes a powerCON to three prong cable for AC power, but the light also features a 4-pin XLR input for powering from DC sources with 22 to 35 VDC.

  • Beam Angle

    14 to 50°



    Color Precision

    CRI 95 at 3200K, CRI 95 at 6600K

    Color Temperature



    5-pin XLR (in, out)


    0 to 100%

    Item Type




    • Flood: 15.5 × 10.9 × 11.0″
    • Spot: 15.5 × 10.9 × 14.7″
    • 11.2 lb
    • Combination 1-1/8" Stud and 5/8" Receiver


    Power Supply

    AC Power Input

    • 90 to 250 VAC, 50 / 60 Hz
    DC Power Input
    • 22 to 36 VDC
    Max Power Consumption
    • 450 W


    Temperature Range

    2800 to 10,000K ± 100K

    Cable - ARRI powerCON TRUE 1 / Edison w/ Switch 23-foot

    Case - SKB 2213-12 (H45)

    Continuous - ARRI Combo Stirrup M6x20mm Thumbscrew

    Continuous - ARRI Combo Stirrup Spigot Baby/Junior Pin

    Continuous - ARRI L5-C LED Fresnel 5-inch

    Continuous - ARRI Locking Flange / Mounting Plate

    Modifiers - Arri 4-Leaf Barndoor / 6.6-inch
