VRI Phantom VEO4K 990S EF V-Mount Kit

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$3676.00

Free

Shipping Included*

*up to 2nd day air - overnight available

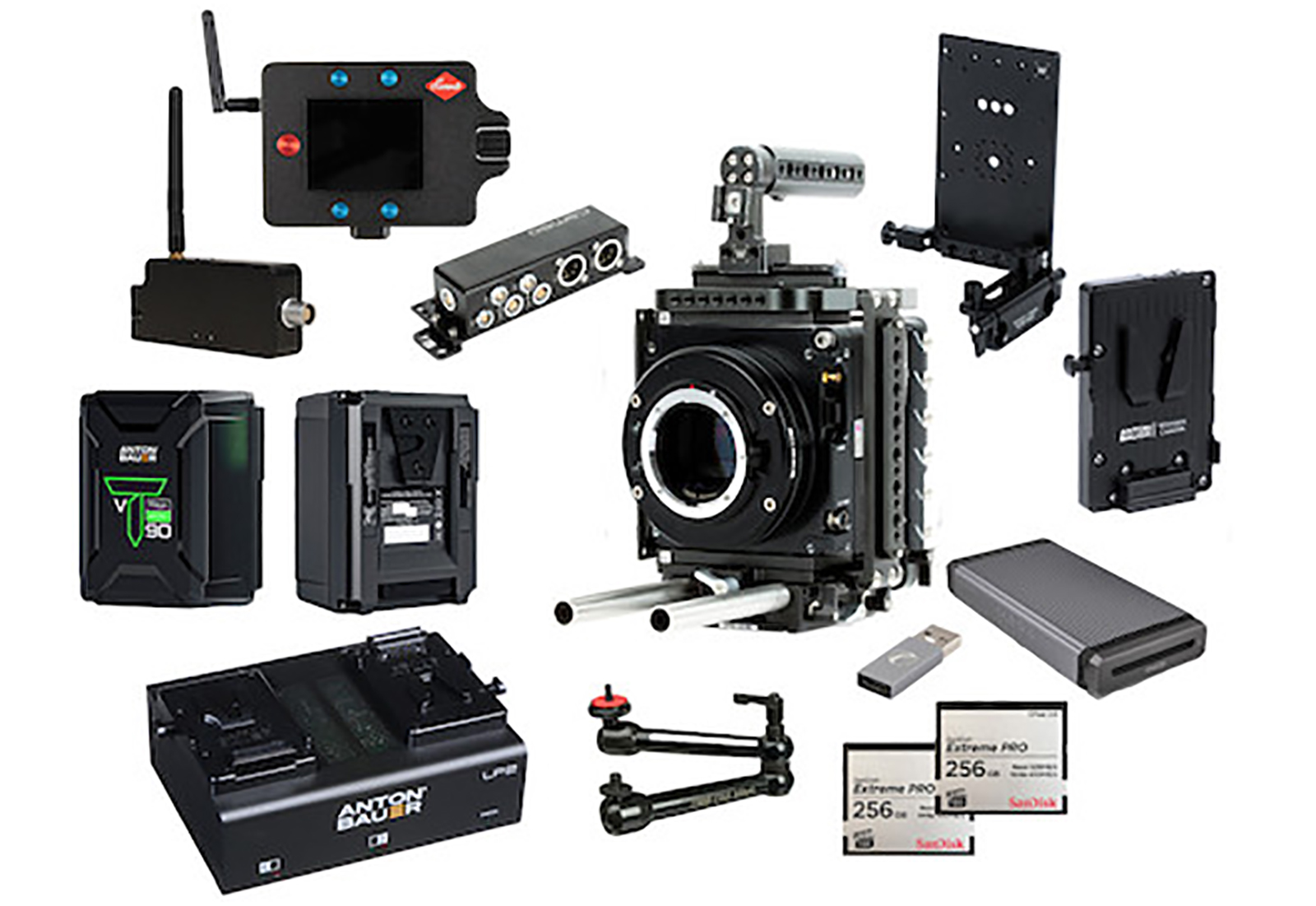

The VRI Phantom VEO4K EF V-Mount Kit can record 4K RAW footage at up to 1000 fps and 2K RAW footage at up to 1970 fps to CFast 2.0 media. This kit offers a EF mount, two V-Mount batteries, and CFast 2.0 media. Key features include:

  • Super35, 31.7mm, 12-bit CMOS sensor

  • Records 4K RAW up to 1000 fps

  • 72GB internal buffer transfers to CFast 2.0 media

  • EF mount, Gold Mount batteries (2x), and 512GB CFast 2.0 cards (2x) included

Is This the Best Camera for Your Project? The VRI Phantom VEO4K can have a demanding post processing workflow. If you haven’t used this camera system before, email us at support@lensprotogo.com or give us a call at 877-578-4777 to talk with a technician about the specific needs of your project.

DCI 4K at 1000 Frames-Per-Second. The VRI Phantom VEO4K EF V-Mount Kit is a specialized camera designed to shoot high-speed footage at a sharp DCI 4K resolution. It has a maximum resolution of 4096 × 2304 at 938 fps but can be lowered to 1080p for 2000 fps and even higher speeds at lower resolutions.

12-bit RAW to CFast 2.0 Media. This version of the camera features a CFast 2.0 slot to write from the internal 72GB memory buffer. This camera does have the 10Gb Ethernet option installed, but we do not send the required cable by default. If you require this feature, make the request in the special instructions box at checkout. We include two SanDisk 512GB Extreme PRO 525MB/s CFast 2.0 cards with this kit rental.

Other Features. This camera features front and rear HD-SDIoutputs, a rear HDMI output, 4-pin Hirose 12V power output, 6-pin Fischer power input, and four programmable BNC I/O ports for timecode sync and triggering.













Brand

VRI

Imaging

Maximum Resolution

  • 4096 × 2304
Sensor
  • Type: S35, 31.7mm diagonal, CMOS
  • Rolling Shutter
ISO
  • Maximum ISO: 20,000
  • Base ISO: 320



Inputs/Outputs

Audio Inputs

  • None
Audio Output
  • None
Video Out
  • HDMI Type-A
  • 3G HD-SDI (1x front, 1x rear)
Additional Inputs/Outputs
  • 2-pin LEMO out (12V)
  • Fischer-3 R/S output



Item Type

Package

Package Type

Unknown

Physical

Dimensions

  • 5 × 5.5 × 6″
Weight
  • 6 lb (brain only)
Operating Temperature
  • 14°-122°F



Power Supply

Input Ports

  • DC In (XLR-4), Batt In (XLR-4), 6-Pin Fischer 16-32 VDC



Recording

Formats

  • Cine RAW
Modes
  • 4096 × 2304 at 938 fps
  • 4096 × 2160 at 1000 fps
  • 4096 × 1152 at 1850 fps
  • 2048 × 2048 at 1050 fps
  • 2048 × 1152 at 1850 fps
  • 2048 × 1080 at 1970 fps
Media
  • CFast 2.0
