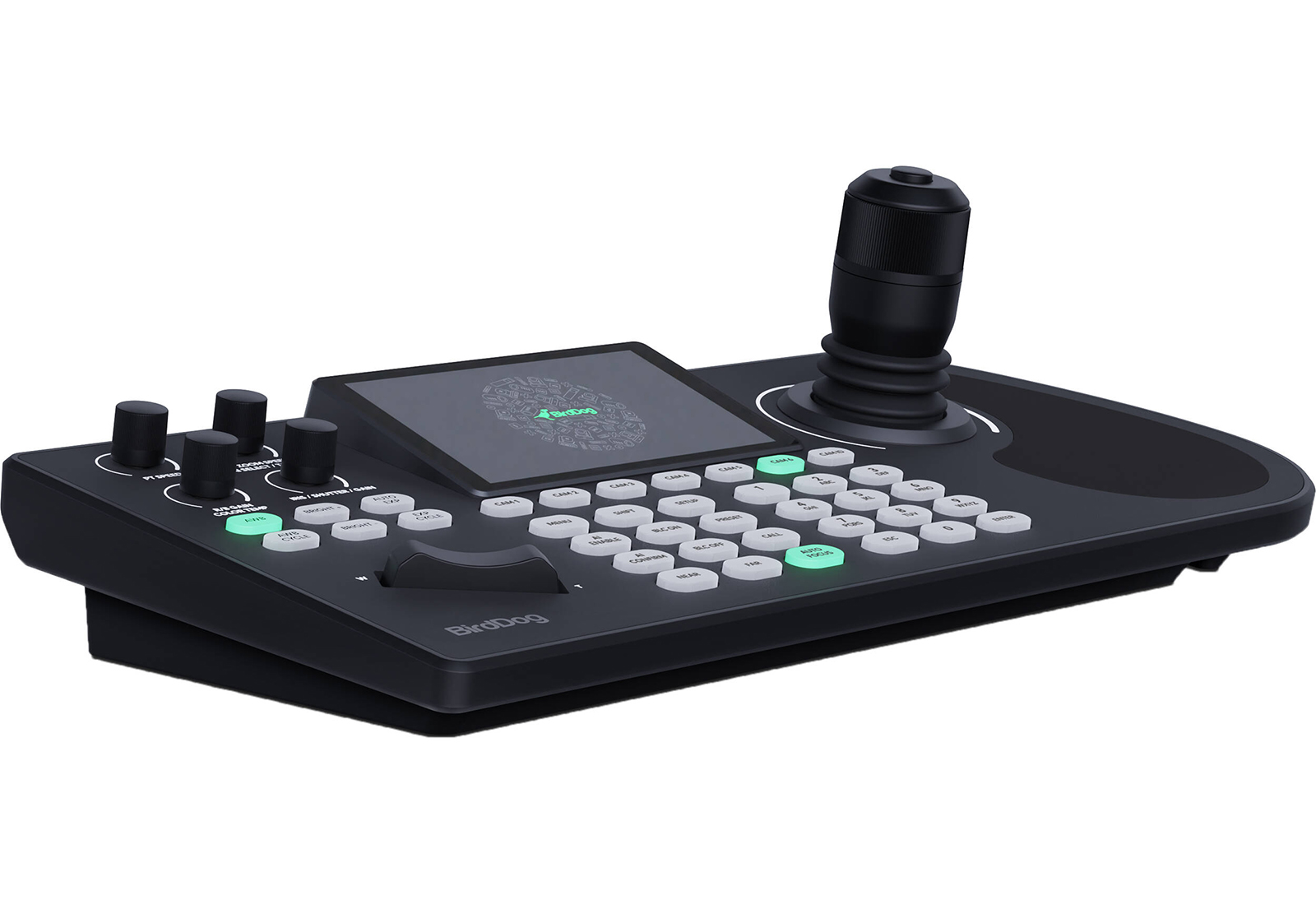

BirdDog KBD PTZ Controller with Integrated Screen

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$113.00

The BirdDog KBD PTZ Controller with Integrated Screen provides effortless control for multi-camera operations. Key features include:

1280 × 720 display
Integrated tally borders
Monitor up to 4 cameras simultaneously
NDI|HX2 & NDI|HX3 support

Comfort Control. Control up to four of your BirdDog PTZ cameras with this BirdDog KBD PTZ Controller with Integrated Screen! Compatible with most X- and P-Series cameras, this controller gives you a comfortable and accessible solution for switching, control, pairing, and much more.

Innovative Design. Made from ocean-bound plastics and recyclable aircraft-grade aluminum, the KBD not only makes an impact environmentally, but also physically. This controller features an array of menu buttons and functions, and a joystick that’s accompanied by a comfortable hand rest area.

‘Fun’-ctions and Modes. The KBD offers a new Effortless Camera Settings Sync function, which allows you to copy and paste settings across X-Series cameras, like the X4 and X5. Not only does this controller offer NDI|HX2 and NDI|HX3 support, it also supports VISCA-IP, ONVIF, RS-232, and RS-422 for broadened versatility.

Q & A

Does this rental include a BirdDog PTZ camera?

No, this rental is only for the controller.

Number of Supported Cameras	255 Channels via IP
Brand	BirdDog
Camcorder Type	PTZ
Camera Type	Camcorder
Controls	1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons
Display	Native Resolution 1280 × 720 Touchscreen No
IP Streaming	NDIHX, ONVIF: UHD 4K
Inputs/Outputs	1x D-Sub 9-Pin (RS-232) Input/Output 1x Phoenix (RS-422) Input/Output 1x RJ45 (IP Control, LAN) Input/Output 1x USB-A Input/Output
Item Type	Camera
Mfr. Model Number	#BDKBD
Physical	Operating Conditions 14 to 130°F at 20 to 80% Humidity Storage Conditions 14 to 130°F at 0 to 90% Humidity Security Lock Support No Dimensions 14.8 × 7 × 4.6″
Power	PoE Support PoE 802.3af Power Connectors 1x Barrel / Coaxial Power Consumption ≤5 W Input Power 12 VDC
Presets	255 via IP, RS-232, VISCA, Pelco-P, Pelco-D
Supported Control Protocols	IP NDI NDI\|HX2 NDI\|HX3 ONVIF Pelco-D Pelco-P RS-232 RS-422 VISCA
