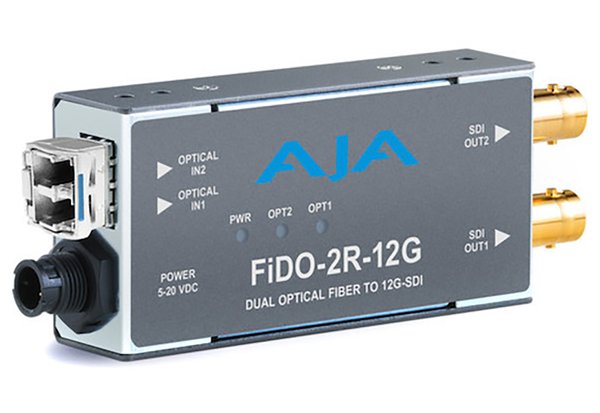

AJA FIDO 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$94.00

The AJA 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver is a stand-alone Fiber-to-SDI converter capable of ingesting two simplex / one duplex fiber input via LC connectors and converting it to two independent 12G-SDI out channels. Key features include:

2 simplex / 1 duplex LC to 2 12G-SDI out channels
Supports UHD, HD, or SD video signals up to 60fps
Auto detection of 3G, 6G, or 12G-SDI w/ reclocking
SFP module and power supply included

Fiber-to-SDI Pathway. The AJA 2-Channel Single-Mode LC Fiber to 12G-SDI Receiver allows your video signal to travel distances of up to six miles by converting independent Single-Mode fiber optic inputs to 3G/6G/12G-SDI dual channel outputs. The fiber inputs use LC connectors and accepts two simplex or a single duplex feed.

Broadcast Standards. The AJA FiDo family of fiber converters meet all relevant SMPTE specifications and offer electrical isolation to eliminate potential ground loop problems, for a 12G solution built to improve professional workflows. All ancillary data, including embedded audio is passed.

Fiber Reclocking. This AJA Mini Converter equalizes and auto-reclocks your input by way of the 1260 – 1620 wide band optical receiver. This reduces jitter and optimizes the eye pattern before the signal is processed to the driver, for improved performance over long cable runs. Need an SDI-to-Fiber transmitter? We recommend the AJA FiDo-2T-12G.

Pocket-Sized for Portability. AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Q & A

Can I use this with non-AJA SFP modules?

No. This device should only be used with SFP modules manufactured by AJA.

Resources

Manual

Brand	AJA
Dimensions	4.6″ × 1.71 " x.85" (117 × 43.5 × 21.6mm)
Inputs/Outputs	Input 2-channel Single Mode LC Fiber SMPTE 297/259/292/424/2081/2082 Output 2-channel 12G-SDI BNC SMPTE 259/292/424/2081/2082
Item Type	Monitoring & Recording
Monitoring & Recording Type	Receiver
Performance	Nominal Wavelength 1260 nm – 1620 nm Optical Sensitivity -9 dBm (min 12 Gbps) -10 dBm (min 3 Gbps) Overload Power -2 dBm (min)
Power	3.5W (max) 5-20VDC power (AC adapter included)
Video Formats	Data Transfer Rate 270 Mbps – 12 Gbps Reclocking Rates (Mbps) 270, 1.483, 1.485, 2.967, 2.97, 5.934, 5.94, 11.868, 11.88 Auto-selected Additional rates pass-through only
