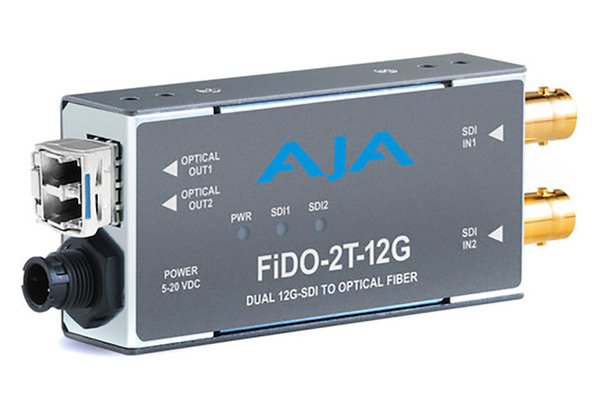

AJA 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$84.00

The AJA 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter is a stand-alone SDI-to-Fiber converter capable of ingesting two independent SDI video inputs and converting them to two simplex or one duplex fiber out via LC connectors. Key features include:

Convert 2x 12G-SDI to 2 simplex / 1 duplex LC
Supports UHD, HD, or SD video signals up to 60fps
Auto detection of 3G, 6G, or 12G-SDI w/ reclocking
SFP module and power supply included

SDI-to-Fiber Pathway. The AJA 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter allows your video signal to travel distances of up to six miles by converting independent G/6G/12G-SDI dual channel inputs to Single-Mode fiber optic outputs. The fiber outputs use LC connectors and supports two simplex or a single duplex feeds.

Broadcast Standards. The AJA FiDo family of fiber converters meet all relevant SMPTE specifications and offer electrical isolation to eliminate potential ground loop problems, for a 12G solution built to improve professional workflows. All ancillary data, including embedded audio is passed.

SDI Reclocking. This AJA Mini Converter equalizes and auto-reclocks your SDI inputs which helps to reduces jitter and optimizes the eye pattern before the signal is processed to the driver. This allows for improved performance over long cable runs. Need a Fiber-to-SDI receiver? We recommend the AJA FiDo-2R-12G.

Pocket-Sized for Portability. AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Q & A

Can I use this with non-AJA SFP modules?

No. This device should only be used with SFP modules manufactured by AJA.

Resources

Manual

Brand	AJA
Dimensions	4.6″ × 1.71 " x.85" (117 × 43.5 × 21.6mm)
Inputs/Outputs	Input 2-channel 12G-SDI BNC SMPTE 259/292/424/2081/2082 Output 2-channel Single Mode LC Fiber SMPTE 297/259/292/424/2081/2082
Item Type	Monitoring & Recording
Monitoring & Recording Type	Transmitter
Performance	Nominal Wavelength 1260 nm – 1620 nm Optical Sensitivity -9 dBm (min 12 Gbps) -10 dBm (min 3 Gbps) Overload Power -2 dBm (min)
Power	3.5W (max) 5-20VDC power (AC adapter included)
Video Formats	Data Transfer Rate 270 Mbps – 12 Gbps Reclocking Rates (Mbps) 270, 1.483, 1.485, 2.967, 2.97, 5.934, 5.94, 11.868, 11.88 Auto-selected Additional rates pass-through only
