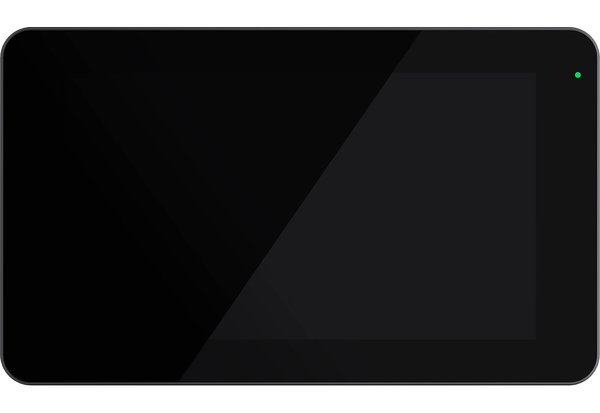

YoloLiv YoloBox Mini Live Streaming Encoder & Monitor

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$69.00

Shipping
Included*

*up to 2nd day air - overnight available

The YoloLiv YoloBox Mini is an all-in-one live streaming solution for streaming, switching, encoding, recording, and monitoring. Key features include:

  • 5.5" LCD w/ 500 nits and touchscreen control

  • Simultaneous cross-platform streaming up to 1080p60

  • QualComm 660 CPU, 4700mAh built-in battery

  • Stream via ethernet, wi-fi, or 4G LTE

Stream Like A Pro. The YoloLiv YoloBox Mini Live Streaming Encoder & Monitor enables you to record from your camera while live streaming from from virtually anywhere without a computer. This encoder/monitor duo allows you to broadcast up to three video streams via Wi-Fi, RJ45 Ethernet, or 4G LTE.

Inputs & Outputs Galore. All of the input/output features are lined for easy accessibility on top of the chassis. The YoloLiv streamer is powered by a built-in battery that is charged using the USB type-C charging input. This streamer also includes an HDMI input, HDMI output, USB video input, mic and line audio input, ethernet port, and a SD card slot.

Switching Support. The YoloBox Mini supports video switching between HDMIUSB, and up to two video or PDF files via SD (not included). Multi-view options include PIP, side-by-side, and multiple split view layouts. Fade to black transitions, audio mixing, and auto switching are also supported and are easily configured using the touchscreen display.

Additional Functions & Features. Customized options allow you to bring a unique look and feel to your stream. With this device, you can brand your live stream by adding logos/watermarks/rolling captions. The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results. All settings and features are adjustable through the 5.5" LCD touchscreen monitor. This encoder/monitor internally records to an SD card up to 128GB, and has the ability to record to optional SD cards up to 1TB.

Q & A

  • Can I record footage while streaming?
    • Yes! Footage can be saved to an SD card or an external SSD connected via USB-C while you stream.

  • Can I stream to multiple sites at once with the YoloLiv YoloBox?
  • Brand

    YoloLiv

    Environmental

    Operating Temperature

    • 32 to 104°F
    Operating Humidity
    • 15 to 85%
    Storage Temperature
    • 41 to 104°F



    General

    Display

    • LCD
    SIM Card Slots
    • 1 x Nano SIM
    4G LTE
    • LTE



    Interfaces

    Video I/O

      1 x HDMI Input
    • 1 x HDMI Output
    Audio I/O
    • 1 × 1/8" / 3.5 mm TRS Stereo Analog Input
    • 1 × 1/8" / 3.5 mm TRS Mono Analog Input
    • 1 × 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
    Other I/O
    • 1 x RJ45 (10/100 Ethernet) Input/Output
    • 1 x USB-A 3.0 / 3.1/3.2 Gen 1 Input
    • 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
    Embedded Audio
    • HDMI/USB-C/Wireless: 2-Channel



    Item Type

    Monitoring and Recorder

    Monitoring Type

    Monitor

    Physical

    Dimensions

    • 6.1 × 3.6 × 0.8″
    Weight
    • 11.3 oz



    Power

    Built-In Battery

    • 4700 mAh
    Power Connector
    • 1 x USB-C (5 to 12 VDC at 1.5 A) Input



    Video Encoding

    IP Video

    • H.264: 960 × 540 to 1920 × 1080 Encoding
    IP Audio
    • AAC-LC: Encoding
    Transport Protocols
    • RTMP
    Simultaneous Streams
    • 3 Streams
    Compatible Services
    • Facebook Live
    • Twitch
    • YouTube Live

    YoloLiv YoloBox Mini Live Streaming Encoder & Monitor

    Bag - Porta Brace CS-B9 Stuff Sack

    Cable - USB 3.1 Gen 2 Type-A Male to Type-C 3-foot

    USB Charger - Type-A 5V/2.1A 1-Port
