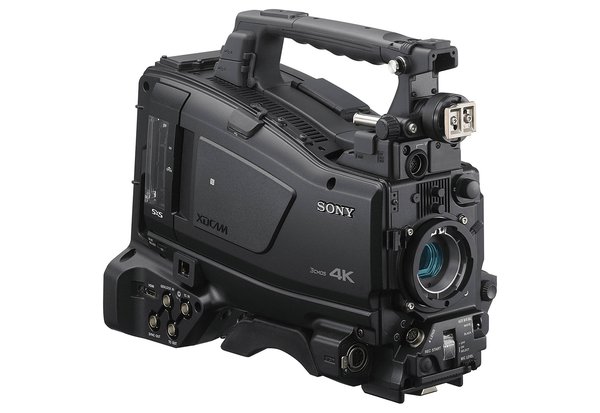

The Sony PXW-Z750 4K is a professional shoulder-mount broadcast camcorder that features a 3-chip 2/3" CMOS sensor, a B4 lens mount, & internal recording up to UHD 4K/59.94p to dual SxS media slots. Key features include:

  • 3-Chip 2/3" 4K sensor with global shutter

  • Native bayonet lens mount for B4-type lenses

  • UHD 4K up to 60fps and full HD up to 120fps using SxS

  • Powered by V-Mount batteries (not included)

4K UHD ENG / EFP Camera With Global Shutter. The Sony PXW-Z750 4K incorporates a 3-chip 2/3" 4K CMOS sensor with a wide color gamut that provides exquisite picture quality with true-to-life color reproduction, high sensitivity, and low noise level for a wide range of shooting scenarios. Built-in ND filters allow you to adjust to changing light availability on the fly and the global shutter eliminates “jello” effects and flash banding.

Native B4 Lens Mount. The 3-chip 2/3-type size sensor block of the Z750 matches the rugged B4 lens mount system, allowing you to use a wide variety of commercially available B4 4K/HD lenses (not included). This flexibility supports a variety of shooting applications while reducing costs by leveraging your existing lens investments.

Balanced For Shoulders. The camera is built from the ground up to be familiar to broadcast camera operators and is ready to be shoulder-mounted for broadcast, news, documentary, and sports filming. The reimagined camera body is lighter than the previous generation PDW-700, while also being more ergonomically balanced to reduce fatigue during long shooting periods. Please note, if you need to attach the Z750 to a tripod, you will need to rent a VCT adapter such as the Zacuto VCT plate.

Lightweight Professional Codecs. Like its predecessor the PXW-Z450, the PXW-Z750 camcorder supports Sony XAVC codecs up to UHD 4K/59.94p and up to 1080/120p. The high-quality XAVC-I codec allows you to record HDR quality 4K video with 10-bit 4:2:2 color sampling, providing superior color depth and image quality. Additional recording features like HDR, cache recording, and simultaneous QFHD/HD capture to a single SxS card, ensure you’ll be ready to adapt to almost any shooting requirements.

Q & A

  • Are batteries included with this rental?
    • Batteries are not included with this rental but we do offer v-mount batteries as separate rental items.

  • Can I attach this camera to a standard tripod head?
    • This camera is designed to be shoulder mounted. If you would like to use this camera on a standard fluid head tripod, you will also need to rent a VCT adapter such as the Zacuto VCT plate.

  • Brand

    Sony

    Camera Type

    Camcorder

    Imaging

    Sensor

    • 2/3-type 3-chip 4K CMOS
    Maximum Resolution
    • 3840 × 2160
    Optical Filters
    • Built-in Neutral Density
    • Clear, 1/4ND, 1/16ND, 1/64ND



    Inputs/Outputs

    Audio Inputs

    • CH1/CH2 In: XLR-type 3-pin
    • MIC In: XLR-type 5-pin
    Audio Output
    • Audio Out: XLR-type 5-pin
    • Headphone Out: Stereo mini-jack
    Video Outputs
    • (2) 12G/6G/3G/1.5G SDI BNC
    • HDMI Type-A
    Additional Inputs/Outputs
    • Genlock In: BNC, 1.0 Vp-p, 75 Ω, unbalanced
    • Timecode In: BNC, 0.5 V to 18 Vp-p, 10 kΩ
    • Timecode Out: BNC, 1.0 Vp-p, 50 Ω
    • Sync Out:BNC, SD analog composite/HD-Y selectable
    • SDI In: 1.5G
    • Lens: 12-pin, lens power source (11 V to 17 V DC, 1.0 A maximum rated current)
    • Remote: 8-pin
    • Ethernet: RJ-45



    Item Type

    Camera

    Mfr. Model Number

    PXW-Z750

    Monitoring

    LCD Panel

    • 960 × 540 Color LCD
    • 3.5” Diagonal



    Mount

    B4

    Physical

    Dimensions (WxHxD)

    • Approximately 5.91 × 10.59 × 13.07”
    Weight
    • Approximately 8.3 lbs.
    Accessory Mounts:
    • VCT wedge
    • Additional: Viewfinder shoe assembly



    Power Supply

    AC Adapter

    • 4-pin XLR (included)
    Battery Compatibility
    • V-Mount (not included)
    • Operating Time: Approximately 105 min (based on 95 Wh battery)



    Recording

    Media

    • (2) SxS slots
    • SDHX/SDXC (proxy)
    Main Format
    • XAVC Intra (XAVC-I QFHD 300): 3840 × 2160 59.94p, 50p, 29.97p, 25p, 23.98p
    • XAVC Intra (XAVC-I HD 100): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    • XAVC Long (XAVC-L422 QFHD 200): 3840 × 2160 59.94p, 50p
    • XAVC Long (XAVC-L420 QFHD 150): 3840 × 2160 59.94p, 50p
    • XAVC Long (XAVC-L422 HD 50): 1920 × 1080 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    • MPEG HD422: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p
      1280 × 720 59.94p, 50p, 29.97p, 25p, 23.98p
    • MPEG HD420: 1920 × 1080 59.94i, 50i, 29.97p, 25p, 23.98p
      1440 × 1080: 59.94i, 50i
      1280 × 720: 59.94p, 50p
    Proxy Format
    • AVC/H.264 Main Profile 4:2:0 Long GOPVBR
    • 1920 × 1080, 6 MBps, 9 MBps (Target Rate)
    • 1280 × 720, 6 MBps , 9 MBps (Target Rate)
    • 640 × 360, 3 MBps (Target Rate)
    • 480 × 270, 1 MBps, 500 kBps (Target Rate)

    AC Adapter - Wooden 15v 10A XLR4

    Camcorder - Sony PXW-Z750 4K

    Charger - 3 Prong Universal Power Cord 6ft

    Video Support - Sony Z750 Shoulder Pad
