SmallHD 1703 P3X 17-inch Studio Monitor w/ V-Mount
becomes available?

Want to add more than this item? Head to our waitlist builder

×

SmallHD 1703 P3X 17-inch Studio Monitor w/ V-Mount

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$295.00

Free

Shipping Included*

*up to 2nd day air - overnight available

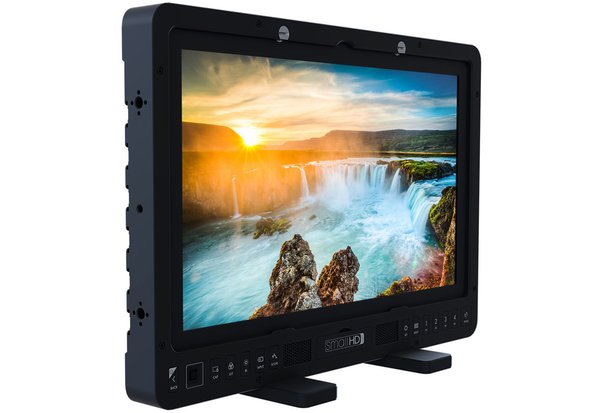

The SmallHD 1703 P3X 17-inch Studio Monitor with V-Mount is a large-format on-set monitor. This version comes ready to accept V-Mount batteries (not included). Key features include:

  • Large-format, off-camera monitor

  • 100% DCI-P3 Color Gamut Coverage

  • Page Builder OS with support for LUTs

  • V-Mount battery plate

Not So Small. The SmallHD 1703 is not really all that small anymore. The larger 17-inch form factor makes it an ideal choice for a client monitor, director’s monitor, or as a multi-view monitor for a video switcher.

Page Builder. First seen on the smaller on-camera SmallHD monitors, Page Builder OS is an easy-to-use GUI that allows you to selectively apply monitoring tools such as waveforms, vectorscopes, multiview, focusing aids, and LUTs on to different pages. You can screen capture and save stills to an SD Card (with a baked-in LUT) that can be used later for reference purposes.

ColorFlow 3D LUT Processing. The 1703’s ColorFlow helps you keep your images consistent from production through post-production. It lets you import 3D LUTs and display the treated and untreated images side by side to correctly gauge exposure while seeing what’s being recorded by the camera. You can also send separate LUT-treated images downstream via SDI and HDMI so that the 1703 displays a log image or LUT-treated image, while monitors connected to the outputs can display images treated with a different LUT.

Speedy Rail Setup. The RapidRail Shoe-Mount System allows you to quickly mount accessories to the back of the monitor using a standard camera shoe mount style configuration. We provide two RapidRail mounts with the 1703 rental.

Daylight Viewable. The 1920 × 1080 Full HD, 10-bit panel is daylight-viewable with a 900 cd/m² brightness rating. There are two SDI inputs and an HDMI input, each with loop-through capability.

V-Mount. This version of the SmallHD 1703 includes an Anton Bauer V-Mount battery plate. To help keep cost down and give you the most flexibility, we do not include any V-Mount batteries or chargers with the rental. However, we do have a variety to choose from that are available to rent separately.

Other Notable Features. There are USB ports mounted at the rear that can power accessories with a maximum draw of 0.5 amps per port. The 1703 can be powered via included AC adapter or V-Mount battery (separate rental item). We’ve bundled the monitor with SmallHD’s C-Stand Mount to give you the most support options, and the unit features sliding top handle to move the monitor around set.

Brand

SmallHD

Display

Screen Size

  • 17”
Resolution
  • 1920 × 1080
Pixel Density
  • 128 PPI
Bit Depth
  • 10-bit



Inputs/Outputs

Video Inputs

  • 2x 3G SDI
  • 1x HDMI
Video Outputs
  • 2x 3G SDI
  • 1x HDMI
SDI Input Formats
  • 10-bit YCC 4:2:2
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080PsF: 23.98/24/25/29.97/30
  • 1080i: 50/59.94/60
  • 720p: 23.98/24/25/29.97/30/50/59.94/60
HDMI Input Formats
  • 8-bit YCC 4:2:2
  • 8/10/12-bit RGB and YCC 4:4:4
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080PsF: 23.98/24/25/29.97/30
  • 1080i: 50/59.94/60/100/119.88/120
  • 720p: 23.98/24/25/29.97/30/50/59.94/60
SDI Output Formats
  • 8-bit YCC 4:2:2
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080PsF: 23.98/24/25/29.97/30
  • 1080i: 50/59.94/60/100/119.88/120
  • 720p: 23.98/24/25/29.97/30/50/59.94/60
HDMI Output Formats
  • 8-bit YCC 4:2:2
  • 8-bit RGB and YCC4:4:4
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080PsF: 23.98/24/25/29.97/30
  • 1080i: 50/59.94/60/100/119.88/120
  • 720p: 23.98/24/25/29.97/30/50/59.94/60
Additional Inputs/Outputs
  • 3x USB 2.0
  • 1x Headphone Mini-Jack
  • 1x AC Power Input (3 prong)
  • 1x XLR4 Input
  • 1x Lemo Output 12V DC (4A max)



Item Type

Monitoring

Monitoring Type

Monitor

Physical

Measurements

  • 11.5 × 17.5 × 2.5″
  • 12.1lbs. (monitor only)
Monitor Mounts
  • C-Stand Mount
  • Table Mount
Accessory Mounts
  • Top, bottom, and side ¼-20 and ⅜-16 threads
  • Rear cold shoe rails with rail mount interface
  • Cheeseplate battery bracket

Case Insert - H16A-F2 Small HD 1703 Monitor (H16)

Monitor Accessory - SmallHD Production Monitor Foot

Monitor Accessory - SmallHD Production Monitor Foot

Monitor Accessory - SmallHD C-Stand Mount

Monitor Accessory - SmallHD 1703 Top Handle

AC Adapter - SmallHD YHY-15006000

Monitor - SmallHD 1703 P3X Studio

D-Tap Cable - Core SWX Coiled XLR4 18-inch

Monitor Accessory - SmallHD RapidRail 1/4-20 Mount

Monitor Accessory - SmallHD RapidRail 1/4-20 Mount

Video Support - Wooden Dual D-Tap V-Mount Battery Plate

Case - Pelican 1610 (H16)

Monitor Accessory - SmallHD Cheese Plate

Monitor Accessory - SmallHD 1703 1/4-20 Screw

Monitor Accessory - SmallHD 1703 1/4-20 Screw

Monitor Accessory - SmallHD 1703 3/8-16 Screw

Charger - 3 Prong Universal Power Cord 15ft
