Panasonic DMW-XLR2 Microphone Adapter

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$57.00

The Panasonic DMW-XLR2 Microphone Adapter adds a sturdy microphone mounting option to your Panasonic GH7. Key features include:

Two XLR audio inputs
Connect via hot shoe
Physical switches & dials
3.5mm stereo mini jack input

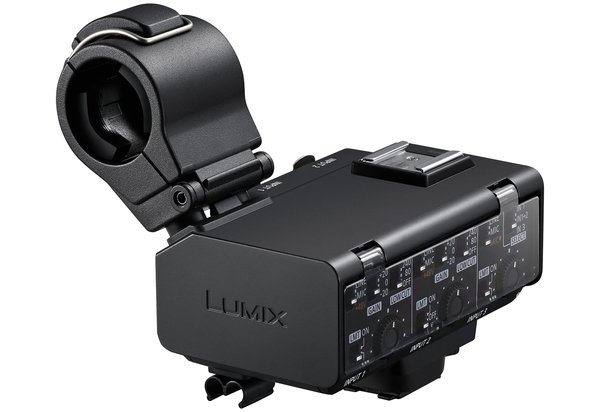

Magic Mic. Add this Panasonic DMW-XLR2 Microphone Adapter to the hot shoe of your Panasonic GH7 for stable, durable mic mounting. This adapter consists of two parts- the mic mount, and the control panel adapter unit. On the control panel, you’ll find a variety of switches and dials for your recording needs, two XLR audio inputs, and a 3.5mm stereo mini jack input.

Limited Camera Compatibility. Thanks to the ability to support high-resolution recording formats up to 96 kHz and 32-bit float, this adapter pairs perfectly with what the Panasonic GH7 has to offer. This adapter can be used with the Panasonic GH6, but it will not support 32-bit float recording.

Audio I/O	2x XLR 3-Pin Input 1x 1/8" / 3.5 mm Mic Input (Stereo)
Brand	Panasonic
Environmental	Operating Temperature 14 to 104°F Operating Humidity 10 to 80%
General	Compatibility Panasonic Lumix DC-GH7 / Lumix DC-GH6 Phantom Power XLR: 48 V 3.5 mm: 2.5 V Input Level -12 dBFS Frequency 20 Hz to 40 kHz, +1/-1 dB (During Fs=96 kHz, During LINE) Sampling Rate Linear/Float: 48 kHz, 32-Bit, 2-Channel 96 kHz, 32-bit, 2-Channel
Input Level	XLR LINE: 0 dBu MIC, +48V: -40 dBu (0 dBu=0.775 Vrms) 3.5 mm Jack LINE: -10 dBV MIC, MIC (plug-in power): -40 dBV (0 dBV=1 Vrms)
Item Type	Audio
Power	Power Source Camera
