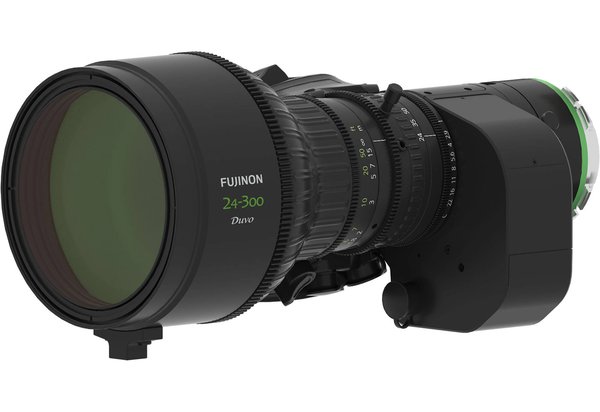

Fujinon Duvo HZK 24-300mm Portable Zoom (PL)

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$1013.00

Shipping
Included*

*up to 2nd day air - overnight available

The Fujinon Duvo HZK 24-300mm is a dual-format, broadcast-style PL-mount lens with a built-in 1.5x expander. Key features include:

  • Multi-format up to full-frame coverage with built-in expander

  • Broadcast zoom drive unit, 0.8M gearing

  • Equipped with Breathing Compensation Technology, Remote Back Focus

  • Compatible with the Cooke /i + ZEISS eXtended Data system

S35 Take on 2/3 ENG Lenses. Merging functionality with versatility, Fuji set out to make a portable broadcast-style lens that can be used for cinematic purposes as well as news gathering. With a digital drive unit and zoom rocker switch, the Duvo HZK 24-300mm can be operated in the same way as portable-type broadcast zoom lenses while also being equipped with 0.8M focus ring gearing for traditional cinema-style focus pulling.

For All Formats. Not only does this lens offer an incredibly versatile focal length range, but it also offers a 1.5x expander setting for compatibility with full frame cameras. The Duvo HZK 24-300mm is capable of covering an image circle up to 28.5mm across the entire zoom range in its default Super35 mode. Engage the 1.5x expander and you get coverage up to 41.3mm. The use of the expander shifts the focal length by 1.5 for a 36-450mm range that is great for faraway subjects. Despite the over 12x zoom range, the Duvo maintains a fast T2.9-4.2 maximum aperture.

User-Friendly Features. The Fuji Duvo HZK 24-300mm is for PL mount cameras and is 6.5 pounds and 10.6 inches long, allowing it to be used handheld. It offers a range of pro-level features, including breathing compensation, Zeiss eXtended Data support, and compatibility with third-party lens controllers. The front diameter is an industry-standard 114mm for easy pairing with a matte box. The rubber hood can accommodate a 127mm filter. To tackle the decrease in sharpness that zooms are prone to, the Duvo includes a Remote Back Focus feature that will automatically adjust focus to ensure consistency in sharpness when moving between focal lengths. This lens is a great choice for sports/news and narrative/creative cinematographers alike.

Q & A

Does this lens accept screw-on filters?
  • Yes! With the hood attached, this lens accepts 127mm filters, and without the hood, accepts 111mm filters.

Can the servo unit be removed from the lens?
  • No, it is not designed to do that.

  • Unlike our selection of Fujinon Cabrio lenses, the Duvo features remote back focus, allowing flange back adjustments from select cameras and remote control panels. Specifically, it is the RBF’s barrel and internal wiring that makes the servo grip not designed for simple removal.

Angle of View
  • Wide: 54.8º-32.5º (53.1º-31.4º with expander)
  • Tele: 4.7º-2.7º (4.6º-2.6º with expander)
Aperture Blades

9

Brand

Fuji

Control

Servo or manual (iris, zoom, focus)

Filter Type

Screw-On

General

Dimensions (L)

  • 10.6"
Front Diameter
  • 114mm
Gearing
  • 0.8 MOD focus, 0.8 MOD iris
Mfr. Model Number
  • DUVO HZK 24-300



Image Stabilization

No

Inputs/Outputs

12-Pin Connector

Item Type

Lens

Lens Format Coverage
  • Diagonal S35 (28.55mm)
  • Diagonal Full-Frame (41.3mm – 1.5x expander required)
Lens Mount

PL

Lens Type

Standard and Broadcast

Max Aperture

T2.9-4.2 (T4.35-6.3 with expander)

Maximum Aperture
Min Aperture

T22 (T33 with expander)

Min Focusing Distance

2.88’ (1.87’ in macro mode)

Supported Filter Size
  • With Hood: 127mm
  • Without Hood: 111mm
Weather Sealing

Yes

Weight

6.5lb

Zoom Type

Variable Focal Length

Fujinon Duvo HZK 24-300mm Portable Zoom (PL)

Case Insert - H12A-3DF0424 Fujinon Duvo

Filter - Kenko 127mm MC Protector

Hood - Fujinon 114mm Standard Push-On Cap

Hood - Fujinon Cabrio / UA18X5.5BERD B4 Hood Cap

Hood - Fujinon HS-304A-114 (20-120/85-300)

Hood - LR Fujinon HS-304A-114 Hood Rear Cap

KitCase - Pelican 1510 (H12)

PL Rear Lens Cap

Video Support - Fujinon Duvo 24-300mm Bracket

Video Support - Fujinon HZK 24-300mm Servo Unit
