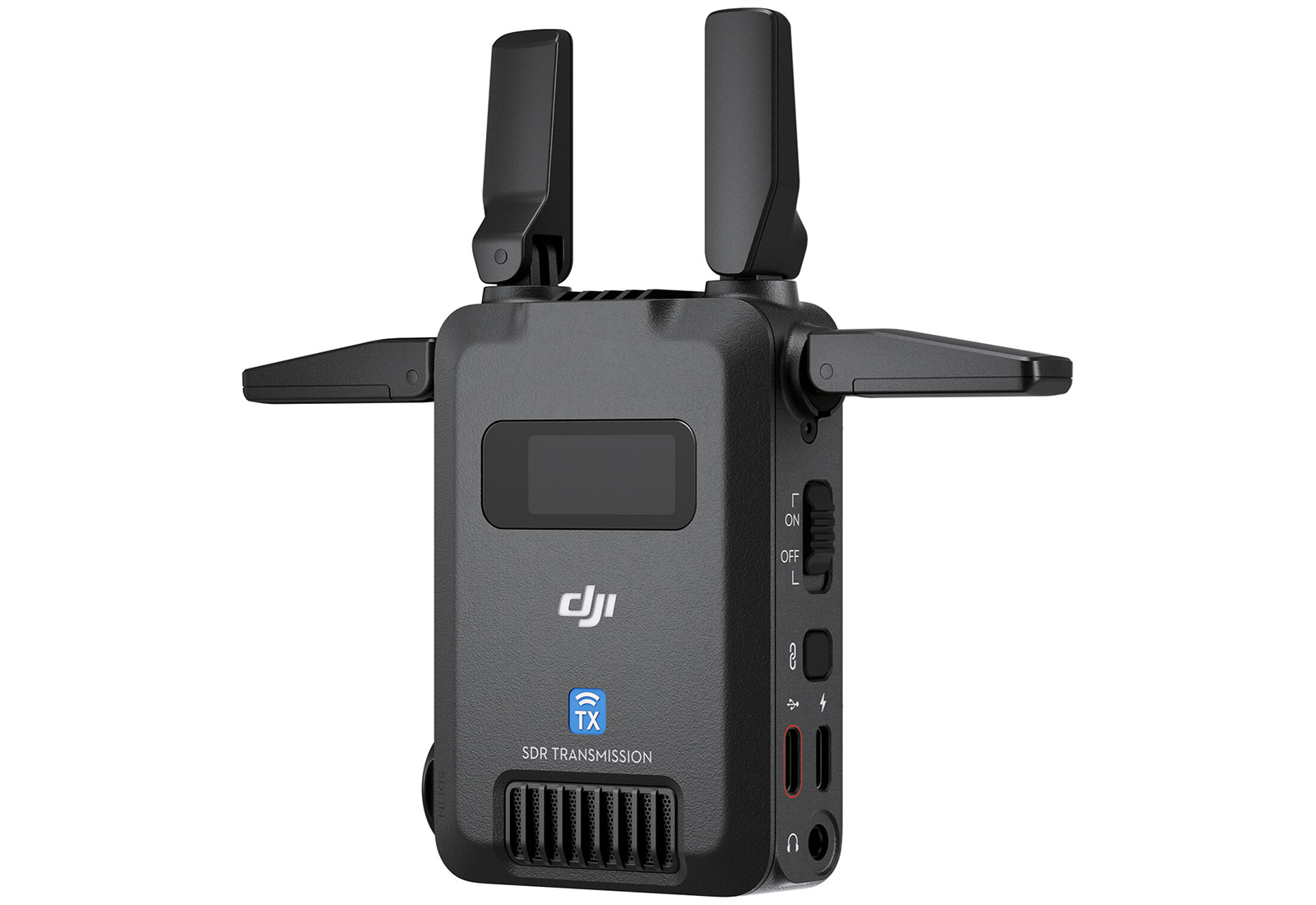

SDR Tri-Bandwidth Technology. The DJI SDR Transmission Transmitter is designed with SDR tri-bandwidth technology to provide transmission distances up to 1.9 miles (10,000 feet) with a minimal latency of just 35 ms. Capable of transmitting 1080p60 footage to an endless amount of DJI SDR Transmission Receivers, this SDR system is ideal for crowded production sets. This technology supports enhanced stability, interference resistance, penetration capabilities, auto-frequency hopping across the 2.4 GHz, 5.8 GHz, and DFS frequency bands, and even lets you transmit directly to your smartphone!

Gimbal Friendly. A perfect fit for RS gimbal setups, the SDR Transmission system supports PTP control over cameras through the Ronin app. The app will display functions like aperture, shutter, and ISO, allow you to adjust them as needed, and even remotely start/stop recording. For compatible cameras, please refer to the compatibility list.

Versatile Ports Available. This transmitter provides the HDMI, SDI BNC, and USB-C inputs and a 3.5mm jack. Through these ports, this device is capable of outputting up to three SDR and two WiFi signals in unison.

Power Trip. This device can be powered through the USB-C port and a USB-C cable, but can also be powered by an L-Series battery. Additionally, you can source power can be from the DJI RS 4 Pro, RS 4, or RS 3 Pro gimbals with the gimbal mount adapter.

The DJI SDR Transmission Transmitter DOES NOT include batteries or a way to power it. You'll need an L-series battery or a USB-C cable and power source.
