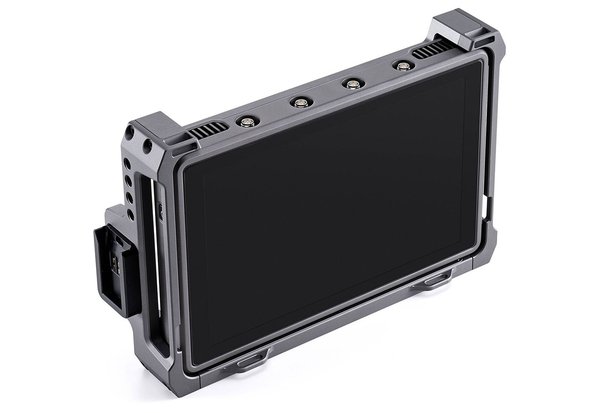

The DJI High-Bright Remote Monitor is a 7" LCD monitor designed for use with the Ronin 4D Cinema Camera that offers on-screen control and features a built-in receiver for use with the Ronin 4D TX2 Video Transmitter. Key features include:

Bright, 7" LCD display
Supports two transmission modes
Camera- and motion- control

Comfortable Display. The DJI High-Bright Remote Monitor boasts a 7" 1920 × 1200 display that can reach a 1500 cd/m² maximum brightness, perfectly suited for viewing footage whether indoors or outside without adding too much bulk. When mounted to the Ronin 4D, it can be powered directly from the camera body.

Two Transmission Modes. The High-Bright monitor is designed to work with the DJI Ronin 4D TX2 Video Transmitter for seamless transmission. If you’re working with a large crew and need to transmit footage to multiple receivers, broadcast mode should fit the bill, capable of sending video to any number of receivers without limit. If you’re looking for more control, the aptly named Control Mode supports coordinated operation of two receivers. Please note: This monitor cannot currently record to a microSD card or output video over HDMI natively, but you can output via HDMI when using the DJI Remote Monitor Expansion Plate (SDI/HDMI/DC-In).

Even More Control. Speaking of control, the High Bright Monitor can adjust focus, gimbal movements, camera settings and start/stop your recording, but that’s not all. The built-in gyro allows you to use the monitor itself as a motion controller for the Ronin 4D. When using the monitor remotely, it can be powered by WB37 batteries. Please note: While this monitor does come with a charging hub, it does not include a charger, so we recommend using a high-watt charger along with any USB Type C to C cable for best results.

The DJI High-Bright Remote Monitor is compatible with the following:

Q & A

Does this monitor come with a battery charger?

No. This rental includes a single battery and a charging hub that allows you to charge it and one additional battery, but you will need a high-watt USB charger along with any USB Type C to C cable.

Can I use this monitor with NP-F batteries?

Yes, but we do not include the NP-F battery adapter by default, however, you can request one in the special instructions box at checkout and we will pre-install it.

Can I use this monitor with any other camera or gimbal?

No. Currently this monitor is only compatible with the Ronin 4D and the TX2 Video Transmitter.

Brand	DJI
Inputs/Outputs	USB Type-C (USB 3.1 / 3.2 Gen 1) Integrated Male Input/Output HDMI Type A Input 1/8" / 3.5 mm Output
Item Type	Stabilizer
Maximum Brightness	1500 cd/m2
Resolution	1920 × 1200
Screen Type	7" LCD
