This unit has 1/8" (3.5mm) Mini Locking for Sennheiser transmitters and is best used with our Sennheiser wireless kits.
Only one tenth of an inch in diameter, the B6 is the smallest lavalier in the world and outperforms microphones many times its size.
The changeable protective caps provide moisture resistance and color options and let you shape the frequency response for different situations or to match other microphones.

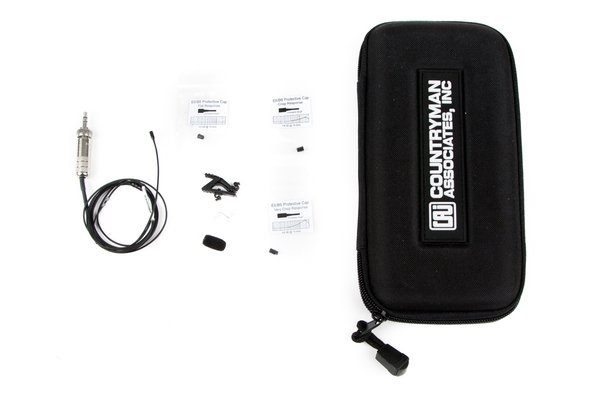

The B6 lavalier microphone is outfitted with specified connector and supplied with a windscreen, set of three protective caps, set of two tie clips (black and white), and carrying case.
PLEASE NOTE: This unit requires plug-in power and will not work if directly plugged into our Tascam DR-40 or Beachtek DXA-SLR; however it can be directly connected to the following:
If using your own recorder, please make sure it can provide up to +5v of plug-in power.
Style & Comfort
|Frequency Response||20Hz to 20kHz +/- 3dB|
|Dynamic Range||Not Specified by Manufacturer|
|Maximum Input Sound Level||120dB|
|Power Requirements||Operating Current: 500uA
Operating Voltage: 1 to 2V
Power Supply Voltage:
+3V with 2.7k ohm Load
+5V with 6.8k ohm Load
|Output Impedance||2 kOhms|
|Output Connectors||1/8" (3.5mm) Mini Locking for Sennheiser transmitters.|
|Dimensions||Capsule Diameter - 0.1" (2.54mm)|
|Weight||0.07 oz (2g)|
