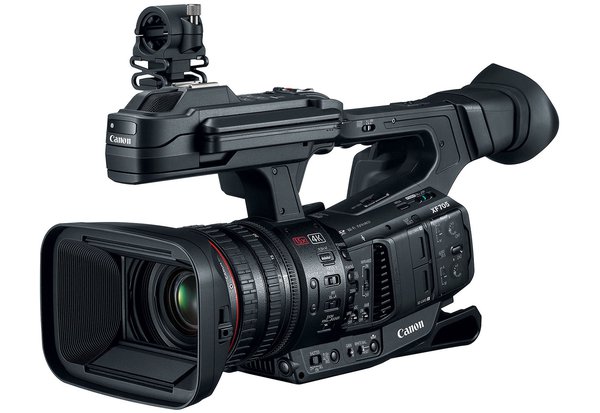

The Canon XF705 is the flagship camcorder update to the Canon XF305. It has a 1", UHD 4K sensor capable of 60fps 4:2:2 10-bit recording to dual SD cards in a very efficient H.265 codec. Key features include:

  • 1-inch, 13.4 MP, UHD 4K, CMOS sensor

  • 25.5-382.5mm equivalent, f/2.8-4.5, 15x optical zoom lens

  • Records up to 4K/60fps, 4:2:2 10-bit, H.265 files to dual SD media slots

  • Dual pixel auto focus & built-in 3-stop motorized ND filters

What’s New? We have quite a lot new here if you’re coming from the XF305. The larger 1" CMOS sensor of the Canon XF705 can record up to 4K/60fps 4:2:2 10-bit H.265 files to dual SD media slots. The integrated lens loses a bit of range with a 15x optical zoom at 25.5-382.5mm of reach, but the higher resolution sensor double that to 30x when in 1080p using a smooth digital zoom with no perceivable loss of detail. The camera records HDR straight to the dual SD card slots, and a new stabilization system gives 5-axes of smoothing to keep even 4K footage nice and crisp. There’s even more newness below.

1-inch, 13.4 MP, UHD 4K, CMOS Sensor. The XF705 uses a 4268 × 3148 resolution, 13.4 MP, 1-inch CMOS sensor, and you can choose among 59.94, 29.97, and 23.98 fps settings to achieve just the look you want. The camera supports UHD 4K at up to a 160 Mbps bit rate with 4:2:2 10-bit color sampling. Shooting in 1080p extends frame rate options up to 120 fps and bit rate up to 180 Mbps.

SD Card Recording. The camera records to SDXC memory cards and has two card slots that allow for simultaneous and relay recording. This means you can continuously record indefinitely by exchanging cards as they fill.

Canon 15x Zoom Lens. The XF705’s L-series lens has a 35mm-equivalent zoom range of 25.5-382.5mm, dual pixel auto focus system, and 5-axis optical image stabilization. A waveform monitor and vectorscope are built right into the camera. The freely rotating 4-inch touchscreen monitor and 0.46-inch OLED electronic viewfinder show a 100% field of view. The aperture has 9 blades for smooth out of focus highlights.

Professional Inputs & Outputs. The XF305 features industry-standard 12G-SDI BNC output, genlock input, SMPTE timecode BNC input/output terminals, and Ethernet making it perfectly suited for multi-camera, live event productions. Audio input utilizes two phantom powered XLR or one stereo mini-jack for four channels of recorded audio.

Additional Features. A wi-fi adapter provides wireless connectivity for transferring files via FTP and IP streaming in H.265 or H.264. This camera has three stops of ND filtration on a motorized filter wheel and is the first fixed-lens camera from Canon to feature the Canon Log 3 color gamut for greater grading flexibility in post.

Includes

  • XF705 camcorder w/ zoom lens
  • BP-A30 battery
  • CG-A20 battery charger
  • CA-CP200L AC adapter
  • AC power cable
  • Lens hood
  • Microphone holder
  • Eyecup
Brand

Canon

Camera Type

Camcorder

Imaging

Sensor

  • Type: 1.0-inch single-plate CMOS
  • Effective Pixels: 3840X2160
Bit Depth
  • 4:2:2 10 bit (internally)



Inputs/Outputs

Audio Inputs

  • 2x XLR (1x – handle, 1x – rear I/O cluster)
  • 1x 3.5mm stereo mini-jack
Audio Output
  • 3.5mm stereo mini-jack
Video Output
  • 1x SDI
  • HDMI mini
Additional Inputs/Outputs
  • Remote: 2.5mm LANC
  • Ethernet (RJ-45): 1000BASE-T Compatible
  • DC In: 24.0V DC (with supplied AC adapter)



Item Type

Camera

Lens

Canon 15x Optical Zoom

  • Servo/Manual
  • Control Rings: Focus, Zoom, Iris
Effective Focal Length
  • 25.5 – 382.5mm
Max Aperture
  • f/2.8-4.5
Minimum Focusing Distance
  • 0.4" / 1.0 cm (wide angle)
  • 23.6"/ 59.9 cm (telephoto)
Image Stabilization Modes
  • Dynamic IS
  • Powered IS
  • Standard IS
  • IS Off
Filter Diameter
  • 58mm



Monitoring

Viewfinder

  • 0.46-inch OLED
  • Approximately 100% field of view
LCD Panel
  • 4-inch LCD
  • Touchscreen operation



Mount

Fixed Lens

Physical

Measurements

  • 7.5 × 10.2 × 17.0″ (including hood, microphone holder, and handle unit)
  • 5.86 lbs.
Accessory Mounts
  • Cold Shoe (handle unit)



Power Supply

AC Adapter: CA-CP200L 24V DC

Battery

  • Type: BP-A30 (supplied)
  • Recharge Time: Approximately 170 min. (BP-A30)/300 min. (BP-A60)



Recommended For

Pro Video and New Products

Recording

Formats

  • Video: H.265/HEVC or MPEG-4 AVC/H.264
  • Audio: LPCM (24-bit 4ch), 48 kHz
  • File: MXF
Modes
  • XF-HEVC 160 Mbps/110 Mbps: 3840×2160 (60p/30p/24p)
  • XF-HEVC 60 Mbps/45Mbps: 1920×1080 (60p/30p/24p)
  • XF-AVC 45 Mbps: 1920×1080 (60p/30p/24p)
Media
  • Type: SD/SDHC/SDXC(2 Slots)
  • High Resolution Class Requirement: UHSSpeed Class 3
Approximate Record Times
  • 160 Mbps: 0.78 Min/GB
  • 110 Mbps: 1.09 Min/GB
  • 60 Mbps: 2.03 Min/GB
  • 45 Mbps: 2.81 Min/GB
Multi-Slot Recording Methods
  • Dual Recording
  • Relay Recording



Wireless

Wi-Fi

  • IEEE802.1 1b/g/n (2.5 GHz band)
  • IEEE802.1 1a/n (5 GHz band)
Connection Methods
  • Infrastructure
  • Camera Access Point
