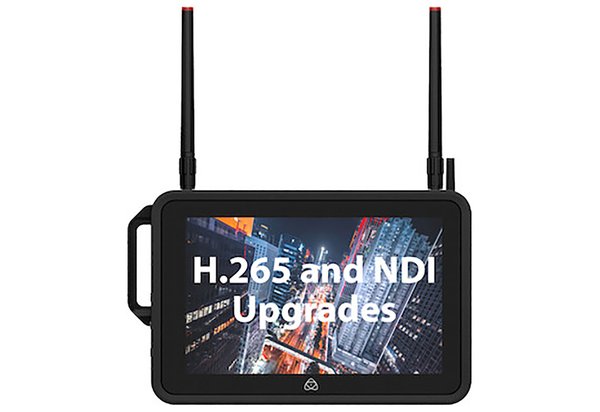

Rent a Atomos Shogun CONNECT 7" w/ 4K and NDI Upgrades at LensProToGo.com

The Atomos Shogun Connect 7" w/ 4K and NDI Upgrades is a lightweight all-purpose monitor that can wirelessly record, monitor, and transmit 4K video, with added NDI upgrades. Key features include:

A new, brighter HDR screen and range of built-in interfaces
7" 1920 × 1200 Touchscreen Display
(2) 12G-SDI, (2) HDMI, (1) USB Type-C
4K and NDI Upgrades

4K video in a Compact and Lightweight Package. The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 × 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface supports SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease. This specific rental has the H.265 codec license installed with additional NDI capabilities.

Wireless 4K Video. Adobe Frame.io support makes the Shogun CONNECT a camera to a cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB Type-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.

Q & A

Can I use Sandisk Ultra 3D SSDs with this recorder?

While the drive physically fits, we’ve observed recording issues with the Sandisk Ultra 3D SSD drives on this model of recorder. See the recommended section for compatible SSDs.

Does this monitor have the H.265 codec license installed?

Yes! This monitor has the H.265 codec license installed, and boasts NDI capabilities!

Does this monitor have the ability to replace zero latency transmitters for wireless focus and such?

No, the Atomos Shogun CONNECT 7" Cloud-Enabled Monitor/Recorder is not a wireless video transmitter/receiver.

Can I use the HDMI and SDI inputs at the same time?

No. Only one of the video signals can be used at a time.

Resources

Brand	Atomos
Display	Panel Type IPS-Type LCD Display Size 7.0" / 17.8 cm Resolution 1920 × 1200 Aspect Ratio 16:9 Touchscreen Yes Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra
Environmental	IP Rating None Operating Temperature 72°F and
Format Support	Video Format HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC) DCI 4K: 60 UHD 4K: 60 DCI 2K: 60 1080p: 120 1080i: 60/50 720p: 60 HDMI (12-Bit 4:2:2/4:2:0 YCC) 8K RAW: 30 6K RAW: 60 4K RAW: 120 3.5K RAW: 60 SDI (12-Bit 4:2:2/4:2:0 YCC) 6K RAW: 30 4K RAW: 120 2K RAW: 240 Audio Format 24-Bit 48 kHz PCM Audio Timecode Support Yes
General	Material of Construction Aluminum, Polycarbonate Dimensions (L x W x H) 7.8 × 5.2 × 1.6″ Weight 1.6 lb.
Inputs/Outputs	Antenna I/O 2x F-Type Video I/O 1x HDMI 2.0a Input 1x BNC (12G-SDI) Input 1x HDMI 2.0a Output 1x BNC (12G-SDI) Loop Output 1x BNC (12G-SDI) Monitor Output Embedded Audio HDMI: 8-Channel SDI: 12-Channel Audio I/O 1x 1/8" / 3.5mm Headphone Output 1x 1/8" / 3.5mm Input 1x 1/8" / 3.5mm Output Power I/O 1x Barrel Input Other I/O 1x 2.5mm (LANC) Input 1x USB-C (Serial) Input 1x RJ45 (Gigabit Ethernet) Input Media/Memory Card Slot Single Slot: SSDmini/SSD with Master Caddy II/III SIM Card Slot None File System Support exFAT Encryption None
Item Type	Monitoring & Recording
Mfr. Model Number	ATOMSHGC01
Monitoring & Recording Type	Monitor
Mounting	Mounting Threads 3x 1/4"-20 Female 3x 3/8"-16 Female
Power	DC Input Power 6.2 to 16.8 VDC Built-In Battery None Battery Type 1x L-Series
Wireless	Wireless Range 0.2 Miles / 300m 49.2’ / 15m (Line-of-Sight) Number of Channels 12 Latency None Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth Yes
