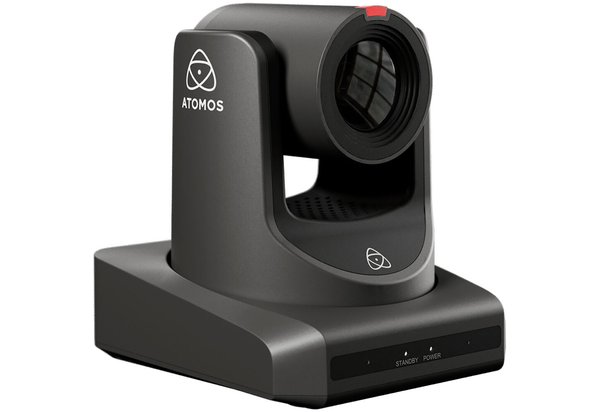

Atomos A-Eye 4K-20X PTZ Camera with 20x Optical Zoom

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$144.00

The Atomos A-Eye 4K-20X PTZ Camera with 20x Optical Zoom is a highly intelligent PTZ camera designed with AI tracking capabilities and a built-in 20x zoom lens. Key features include:

IP, HDMI, USB-A, and 3G-SDI outputs
1/1.8" UHD CMOS sensor
Supports H.265/H.264/MJPEG compression
DC & PoE+ support; Tally lights

Seamless UHD 4K. The Atomos A-Eye 4K-20X PTZ Camera with 20x Optical Zoom provides stunning, high-resolution streaming and AI subject tracking for large stage productions and multi-camera operations. This camera is capable of capturing resolutions up to UHD 4K60 and 1080p60 over IP, HDMI, USB-A, and 3G-SD. Through its USB output, the A-Eye can record directly to a hard drive, but it is equipped with a license for NDI|HX3 for low-latency streaming!

Built-In 20x Zoom. Alongside its 1/1.8" UHD CMOS sensor, the A-Eye 4K’s integregrated zoom lens boasts an optical zoom range of 20x and, for closer shots, an additional 16x digital zoom. With the optional Atomos A-Eye PTZ Camera Remote Control Unit, you can quickly position or change cameras over IP or through the RS-232 port.

Power and Design. The A-Eye, like most PTZ cameras, is supported and fueled by PoE+ and a DC input. To keep your subjects on track with which cameras are in use during multi-camera productions, these cameras are equipped with tally lights. Additionally, you can connect an external mic or headset through the 3.5mm in/out ports, or utilize the built-in microphone.

Q & A

Does this rental include any SDI, HDMI, or Ethernet cables?

No, this rental will not include anything other than a USB-C cable and the barrel AC adapter for power.
Check out our SDI, HDMI, and Ethernet cable inventory, or take a quick peek at the Recommended lists outlined for you on your desktop screen!

Resources

Manual

Brand	Atomos
Camcorder Type	PTZ
Camera Type	Camcorder
Imaging	Image Sensor 1/1.8"-Type CMOS Sensor Resolution Effective: 8.42 Megapixel IR Cut Filter No Focus Control Autofocus Manual Focus
Interface	Video I/O 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output Other I/O 1x D-Sub 8-Pin (RS-232) Control Input 1x D-Sub 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) Control Input/Output 1x USB-A (USB 3.0) Built-In Microphone Stereo Built-In Speaker No
Item Type	Camera
Lens	Optical Zoom Ratio 20x Max Digital Zoom 16x
Mfr. Model Number	#ATOMAE4K20
Power	PoE Support PoE+ 802.3at Power I/O 1x DC (12VDC) Input
Video Capture	External Recording Modes SDI/BNC / HDMI / RJ45 / USB UHD 4K (3840 × 2160) up to 60.00 fps Embedded Audio HDMI/IP/NDI/SDI/USB Audio Recording AAC Audio Broadcast Output NTSC/PAL
