ARRI SkyPanel S60-C LED Softlight
becomes available?

Want to add more than this item? Head to our waitlist builder

×

ARRI SkyPanel S60-C LED Softlight

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$371.00

Shipping
Included*

*up to 2nd day air - overnight available

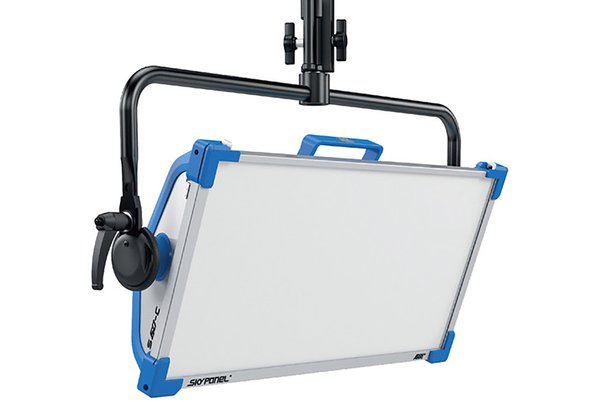

The SkyPanel S60-C LED Softlight reaffirms ARRI’s commitment to accurate color rendering with interchangeable thermoplastic diffusers and light output up to a 10,000K. Key features include:

  • Multi-voltage AC & optional battery power

  • Hue and saturation control

  • 115° beam spread

  • Full minus to full plus green

Adjustable Color Rendering & Light Beam Quality. The SkyPanel S60-C offers the components and features of the L-Series LED fresnels, like the ability to adjust color temperatures between 2800K and 10,000K, with accurate color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment are also possible. Applications for this controllability range from quickly adjusting the CCT to set the mood of a scene to selecting the chroma green output for green-screen color keying. Each LED light engine is computer-calibrated in order to ensure unit-to-unit and batch-to-batch consistency, as well as accurate color temperatures. SkyPanel’s combination of a precise selection of diffusion panels, LED mixing chamber, and large surface area allow for the light output to wrap around objects, eliminating sharp shadows and making for an ideal beauty light. The beam field is homogeneous in both color and intensity.

Versatility. This LED was designed to be used primarily as a soft light to illuminate people, but various built-in features make it extremely adaptable to other uses. With interchangeable diffuser panels on the front of the lamp head, going from the heavy to the lite diffusion panel can be done in a matter of seconds. The onboard battery input allows you to power the SkyPanel with industry-standard batteries and you can use a battery to operate the light 50% of its total power. The SkyPanel also makes an effective space light outputting a large downward-directed pool of color controllable soft light through an optional silk cylinder. Three simple knobs instantly adjust the color temperature, green/magenta balance, light intensity, and hue and saturation instantly. In addition to the on-board controls, all functions can be remotely adjusted via Digital Multiplex (DMX) or LAN network connections.

Built To Last. Made in Germany to ARRI standards, the SkyPanel is constructed from resilient materials and assembled by hand. The combination of an aluminum core with fiberglass-reinforced thermoplastics results in a solid fixture that can withstand heavy daily use on busy film sets. The easily-serviced electronics have been designed to last beyond a minimum of 25,000 hours, up to a maximum of 50,000 hours, while the LED light engine even allows for recalibration.

Q & A

  • What kind of controller/dimmer is needed/available for these lights?
    • The controller for this item is located on the backside of the LED. Most DMX controllers will work with this light.

  • AC Input Power

    90 to 250 VAC

    Brand

    Arri

    Color Accuracy Standard

    CRI 95

    Color Temperature

    RGB

    Cooling System

    None

    DC Input Power

    48 VDC

    Display

    None

    Expected Lamp Life

    50,000 Hours

    IP Rating

    IP20

    Item Type

    Lighting

    Lighting Type

    Continuous Lighting

    Maximum Power Consumption

    450 W Maximum

    Mfr. Model Number

    L0.0007063

    Operating Temperature

    -4 to 113°F

    Photometrics

    3200K

    • 1051 fc / 11,322 Lux at 3.3’ / 1 m*
    • 117 fc / 1258 Lux at 9.8’ / 3 m
    • 42 fc / 453 Lux at 16.4’ / 5 m
    • 22 fc / 231 Lux at 23’ / 7 m
    • 13 fc / 140 Lux at 29.5’ / 9 m
    5600K
    • 1031 fc / 11,100 Lux at 3.3’ / 1 m*
    • 115 fc / 1233 Lux at 32.2’ / 9.8 m
    • 41 fc / 444 Lux at 16.4’ / 5 m
    • 21 fc / 227 Lux at 23’ / 7 m
    • 13 fc / 137 Lux at 29.5’ / 9 m

    ARRI SkyPanel S60-C LED Softlight

    AC Adapter - ARRI S60 / S120 PSU

    Cable - ARRI powerCON TRUE 1 to Edison Mains 10-foot

    Cable - ARRI XLR 3-Pin to XLR 3-pin DC Power 10-foot

    Case - CamKix Accessory Large - Blue

    Case Insert - H60A-F1 Arri S60

    Case - Pelican 1730 (H60)

    Continuous - ARRI 28mm Spigot (Junior Pin)

    Continuous - ARRI Locking Flange / Mounting Plate

    Continuous - ARRI Manual Yoke for SkyPanel S60

    Continuous - ARRI PSU Rail Mount Adapter for SkyPanel S30 / S60

    Continuous - ARRI Standard Diffusion Panel for SkyPanel S60

    Hardware - 10mm Hex L Key
