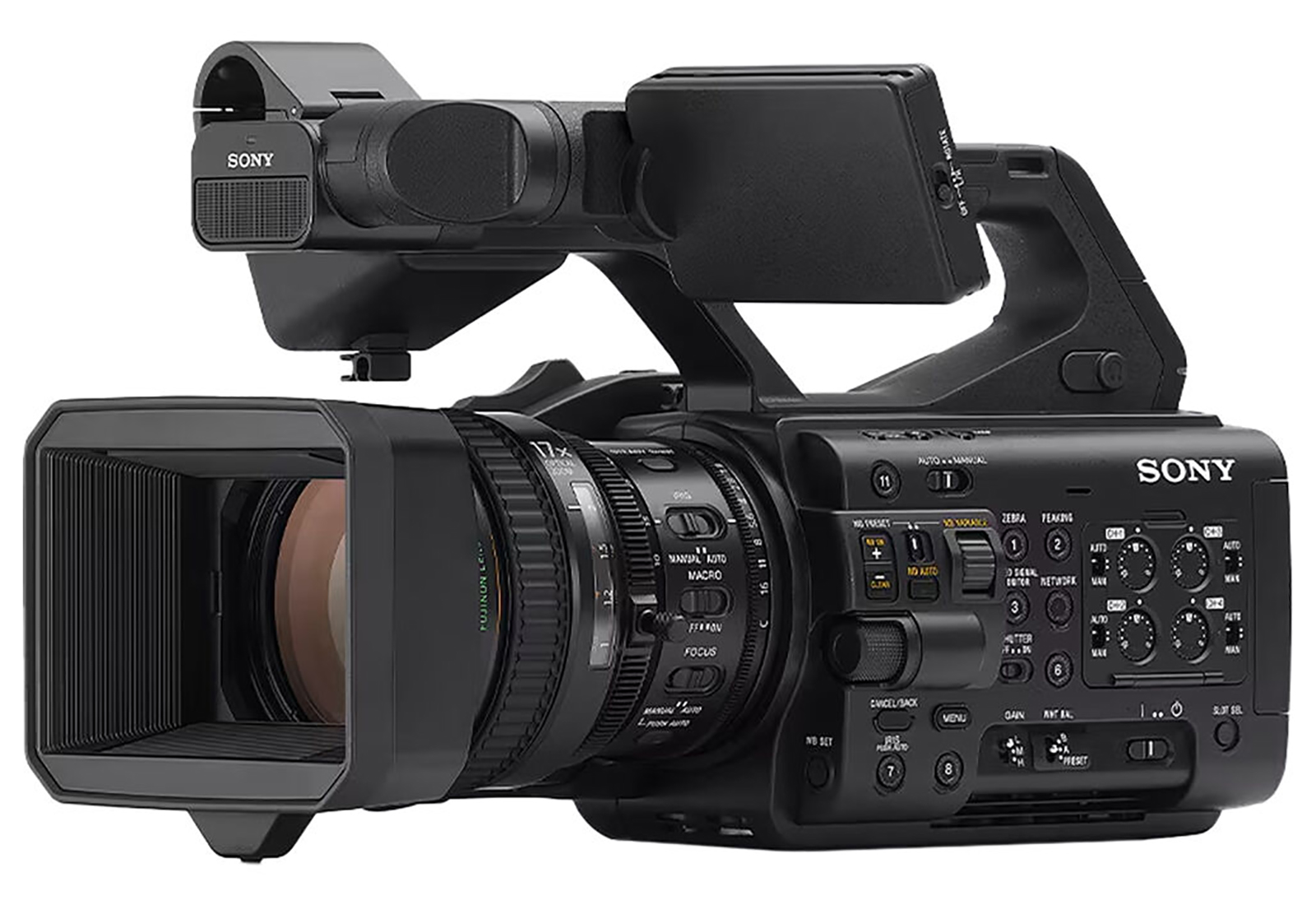

The Sony PXW-Z300 is a broadcast video camera offering 4K60 capture, 17x optical zoom, and an AI focusing processor. This model is an update to the PXW-Z280. Key features include:

  • Three 1/2"-type Exmor R CMOS sensors

  • f/1.9 to f/16 aperture

  • Electronic variable ND filter

  • RTMPRTMPSSRT, and Chunk Transfer

What’s Changed? While the foundational bones of this model are that of the previous-generation Sony PXW-Z280, the PXW-Z300 brings massive updates to the table. Featuring advanced digital imaging technologies, this camcorder is equipped with a redesigned LCD articulating arm, an MI shoe in placement of a viewfinder, a V-Mount side plate for attachment of accessories like the PDT-FP1 or audio receivers, the latest BIONZ XR processor for higher quality imaging, digital signature embedding, and a HD/4K digital extender.

Optimal Content Creation. The PXW-Z300 sports three 1/2" Exmor RS CMOS sensors to deliver enhanced 4K image quality, rapid readout speeds, and optimal low-light performance. Capable of capturing everything from close-ups to wide angle, this camcorder features a 17x optical zoom that is equivalent to 35mm full-frame 30-515mm lens. The built-in variable ND filter function provides a wide 1/4 to 1/128 ND range and allows you to adjust exposure with the simple twist of a dial.

BIONZ XR Processing and AI Assistance. This camcorder incorporates the latest BIONZ XR image processor in the sensor to produce higher frame rates, faster autofocus, improved ATW control, and excellent noise reduction. AI-assisted autofocus offers precise human-subject recognition, and supports Subject Recognition AF and Real-Time Tracking. With the Auto-Framing function, you can easily recognize your subjects, track them, and keep them centered in frame. If the production gets to be too quick, you can always switch to Full Auto Mode for settings like ND, Iris, Gain, Shutter, and White Balance modes.

Connectivity and More. Featuring built-in 2.4 GHz, 5 GHz Wi-Fi, and an ethernet port, the PXW-Z300 is capable of streaming directly from the camcorder to compatible live streaming services and video sharing sites. If you prefer recording over streaming, you can also easily upload files saved to your memory card straight to a cloud or FTP server. To connect with more external equipment, this camcorder offers HDMI Type-A, USB Type-C, LANREMOTE, and various other connectors. This model additionally features SDI and Timecode BNC connections!

Memory and Power. This camcorder accepts separately available (NON PCIe 4.0) CFexpress Type-A and SD UHS-II memory cards through its dual card slot. To fuel up, we include the Sony BC-U1A Charger and Sony BP-U35 Battery, but if you’d like to use a higher capacity battery, this camcorder also accepts Sony BP-U70Sony BP-U90, and Sony BP-U100 batteries!

Q & A

Does this camcorder support all CFexpress Type A cards?
  • No. The PXW-Z300 does not support CFexpress Type A cards that are built with the PICe 4.0 bus standard.

Resources

Brand

Sony

Camera Mount

None

Camera Type

Camcorder

Compatible Media

CFexpress Type A and SD

Environmental Operating Conditions
  • 32 to 104°F
Storage Conditions
  • -4 to 140°F
Exposure Control

Shutter Type

  • Electronic Rolling Shutter
Shutter Speed
  • 1/8000 to 64 Seconds
ISO/Gain Sensitivity
  • Gain: -3 to 18 dB (-3 to 42 dB Extended)
Signal-to-Noise Ratio
  • Not Specified by Manufacturer
Minimum Illumination
  • 0.0013 Lux at f/1.9 Aperture
White Balance
  • Range: 2000 to 15,000K
  • Presets: ATW



General

Shoe Mount

  • 1x Cold Shoe
  • 1x Hot Shoe
Tripod Mount
  • 1x 1/4"-20 Female
  • 1x 3/8"-16 Female
Accessory Mounting Thread
  • 2x 1/4"-20
Built-In Video Light
  • No
Dimensions (W x H x D)
  • 7.2 × 7.9 × 13.1″
Weight
  • 5.7 lb (Body Only)
  • 6.59 lb (With Battery)



Imaging

Image Sensor

  • 7.6 × 4 mm (1/2"-Type) 3-Chip CMOS
Sensor Resolution
  • Actual: 12.2 Megapixel
  • Effective: 8.29 Megapixel
Image Stabilization
  • Optical in Integrated Lens
Built-In ND Filter
  • 2 to 7 Stop Electronic ND Filter
Capture Type
  • Video Only



Interface

Internal Storage

  • No
Video I/O
  • 1x BNC (12G-SDI) Output
  • 1x HDMI 2.0 Output
Audio I/O
  • 2x XLR 3-Pin Microphone Input
  • 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
  • 1x USB-C (20VDC at 5 A) Input
Other I/O
  • 1x BNC (Timecode) Input/Output
  • 1x BNC (Genlock, Reference)
  • 1x RJ45 (Gigabit Ethernet)
  • 1x 2.5 mm Sub-Mini (Remote)
  • 1x 1/8" / 3.5 mm Control
Mobile App Compatible
  • Yes: Android & iOS
  • App Name: Monitor & Control
Global Positioning (GPSGLONASS, etc.)
  • GPS



Item Type

Camera

Lens

Focal Length

  • 5.6 to 95.2mm (35mm Equivalent: 30.3 to 515mm)
Zoom
  • 17x Optical
Maximum Aperture
  • f/1.9
Minimum Aperture
  • f/16
Minimum Focus Distance
  • From Front of Lens: 2"
Control Rings
  • Focus
  • Zoom
  • Iris



Maximum Video Resolution

4K

Mfr. Model Number

#PXW-Z300

Power Battery
  • Sony BP-U Series
Power Consumption
  • ≥48 W
Screen Type

Touchscreen, Tilt, and Swivel

Sensor Size

1/2

Stabilization

Yes

Video Capture

MP4 Proxy/MXF/XAVC-I/XAVC-L

  • 3840 × 2160 at 23.98/25/29.97/50/59.94 fps
  • 1920 × 1080p at 23.98/25/29.97/50/59.94 fps
  • 1920 × 1080i at 50/60.00 fps
HDMI Output
  • 3840 × 2160
  • 1920 × 1080p
  • 1920 × 1080i
SDI/BNC Output
  • 3840 × 2160
  • 1920 × 1080p
  • 1920 × 1080i
Broadcast Output
  • NTSC
  • PAL
Fast-/Slow-Motion Support
  • Yes
Interval Recording Modes
  • Time-Lapse Video
Gamma Curve
  • HDR-HLG, Rec709, Rec2020, S Cinetone, Sony S-Log 3
Built-In Microphone
  • Stereo
Audio Recording
  • MP4, MXFXAVC: 4-Channel
RTMPRTMPSSRT Streaming
  • 3840 × 2160 at 25p, 29.97p
  • 1920 × 1080 at 25p, 29.97p, 50p, 59.94p
  • 1280 × 720 at 25p, 29.97p



Viewfinder Type

None

Weather Sealing

Yes

Wireless Connectivity

Wi-Fi

Sony PXW-Z300

AC Adapter - j5create PD USB Type-C 108W

Battery - Sony BP-U35

Charger - 3 Prong Power Cord (MickeyMouse)

Charger - Polarized Cable

Charger - Sony BC-U1A

Hood - Sony PXW-Z280

Video Support - Sony Microphone Holder

Video Support - Sony PXW-Z300 V-Shoe Attachment

Video Support - Sony Z200 / NX800 LCD Hood
