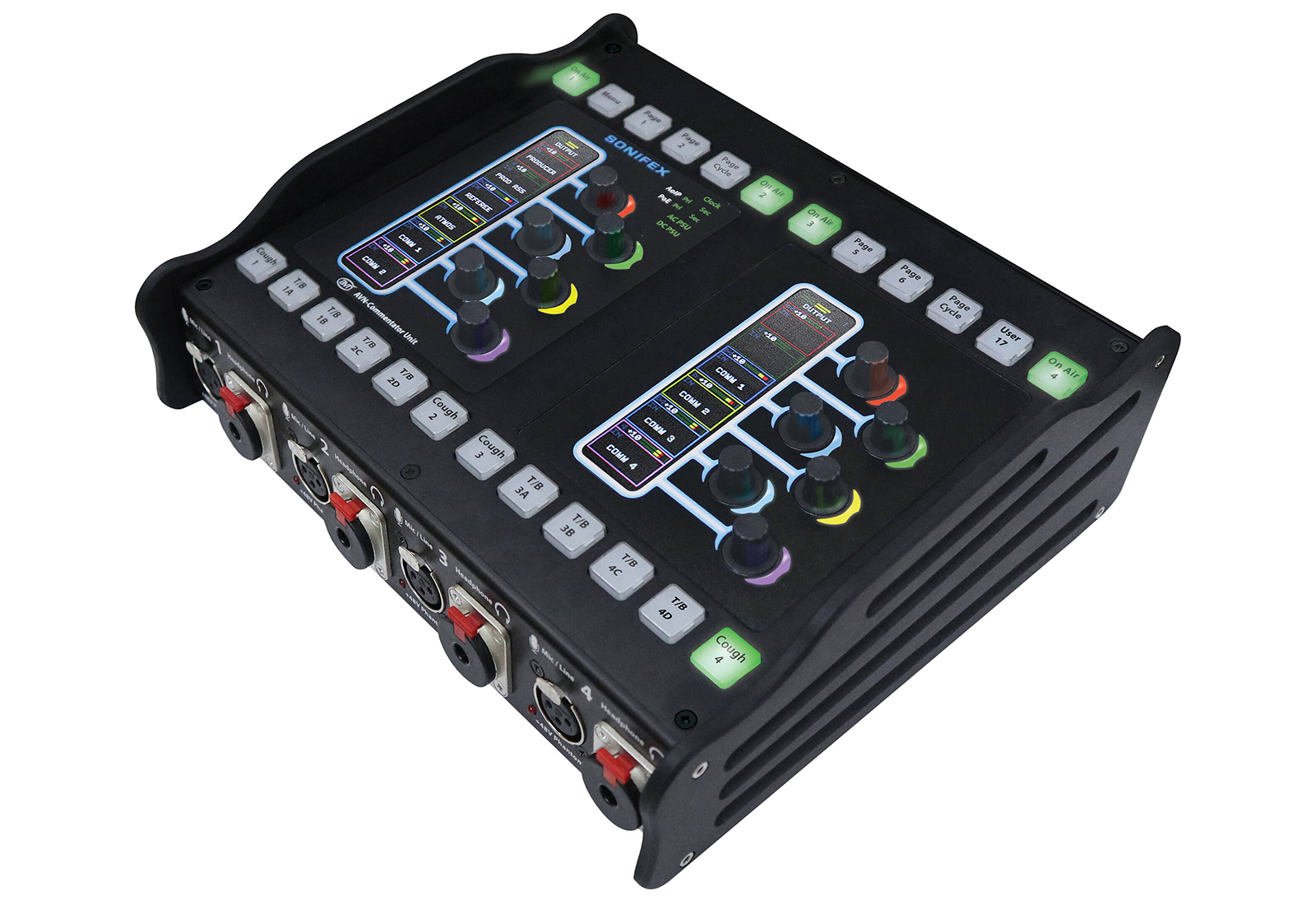

Sonifex AVN-CU4 Configurable Dante Commentary Unit

Expand

Gear Arrives On

Ships Back On

Total

4 Day Rental Price:

$411.00

The Sonifex AVN-CU4 Configurable Dante Commentary Unit is a sleek and configurable hub designed to support between three and four commentators through Dante AoIP or 4-wire connections. Key features include:

16×16 Dante stream
Four lockable 1/4" headphone outputs
PoE+ or AC powered
16-, 24-, 32-Bit/48 kHz Audio

Broadcast and Commentary Solution. Power through virtually any event or broadcast with the versatile Sonifex AVN-CU4 Configurable Dante Commentary Unit! Capable of hosting up to four commentators, this unit supports modern AoIP and traditional workflows thanks to both Dante AoIP and 4-wire connections.

Inputs and Outputs Galore. This unit operates with four locking XLR mic/line inputs that are equipped with with +48V phantom power and a wide gain range, four stereo headphone outputs with locking 1/4" jack sockets for commentators, and four XLR line inputs/six XLR line outputs that are able to act as concurrent analog backups to your Dante AoIP connections.

Dante Connectivity and Audio Routing. Supporting up to 16 configurable AoIP input and output channels with 16 Dante AoIP streams, the AVN-CU4 uses programmable buttons and rotary encoders to seamlessly route audio signals between physical and AoIP connections. Additionally, two locking Ethernet ports deliver connectivity for AoIP, and using the Dante Controller interface, can function in either redundant or switched mode.

User-Friendly Controls and Operation. The AVN-CU4’s programmable and customizable interface provides broadcasting techs with a slew of knobs and buttons to perfect the production’s needs. This unit features 12 rotary encoders buttons for pan/tilt/level adjustments, four On-Air buttons to connect mic audio to the main output (AoIP or AES Digital), a menu button, page buttons for up to 8 pages of pre-programmed changes in the display and encoders to monitor various mix points or outputs, 4 cough buttons, 8 talkback buttons, 12 rotary encoders, and 3 user-programmed buttons for any function of your choice. As a preventative measure when less-techy hosts and commentators are using the system, all buttons and rotary encoders can be locked out from use. Additionally, the AVN-CU4 is capable of being remotely controlled from the web interface!

Flexible Fueling. While this unit supports Power over Ethernet+ (PoE+) through the AVN-CU4’s Neutrik etherCON connectors, this unit is also equipped with an additional 4 pin XLR 12V DC input for an optional PSU. An AC input mains with the universal power supply.

Q & A

Does this rental include XLR cables?

No, this rental will not include XLR cables. Check out the Recommended section on your screen, or click here for our inventory.

Resources

Analog I/O	Analog Line Inputs Input Impedance: >20 Kilohms, Electronically Balanced 0 dBFS Line-Up: User-Selectable 15 / +18 / +20 / +22 / +24 dBu = 0 dBFS Frequency Response: +0/-0.2 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THDN: <-110 dBFS, -30 dBFS, 20 Hz to 20 kHz, 20 kHz BW Noise: <-110 dBFS, 20 kHz BW, Rs = 200 Ohms C.M.R.R: >60 dB Analog Line Outputs Output Impedance: <50 Ohms 0 dBFS Line-Up: User-Selectable 0 dBFS = 15 / +18 / +20 / +22 / +24 dBu Frequency Response: +0/-0.5 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THDN (Analog Mode): <-110 dBFS, -30 dBFS, 20 Hz to 20 kHz, 20 kHz BW Noise: <-110 dBFS, 20 kHz BW
Audio Type	Processor and Communication
Brand	Sonifex
Connections	Front-Panel Connections Headphone Outputs: 4 x Neutrik 1/4" / 6.35 mm Locking Jack Sockets Microphone/Line Inputs: 4 x Neutrik 3-Pin XLR Connectors Rear-Panel Connections Stereo Analog/Digital Input: RJ45 Socket (Electronically Balanced) Stereo Analog/Digital Output: RJ45 Socket (Electronically Balanced) Analog Line Inputs: 4 x Neutrik Locking XLR Sockets Analog Line Outputs: 6 x Neutrik Locking XLR Plugs GPIO Port: 15-Way D-Type Socket DC Input: Neutrik 4 Pin-XLR Plug Network: 2 × 1 Gb/s Neutrik EtherCON Receptacles (with PoE+), 2 x SFP Slots for Alternative Interfaces
Controls	6 x Rotary Encoders 12 x Pushbuttons 480 × 107 Color TFT Display
Dimensions	10.1 × 9 × 3.6″
Headphone Output	Drive Capability Drives 150 mW into 32 to 600 Ohms Headphones 0 dBFS Line-up Fixed 0 dBFS = 18 dBu Frequency Response 0/-0.2 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THD+N <-108 dBFS, -30 dBFS, 20 Hz to 20 kHz, 20 kHz BW Noise <-110 dBFS, 20 kHz BW
Item Type	Audio
Mfr. Model Number	#AVN-CU4
Mic/Line Inputs	Input Impedance (Mic Mode) 2.5 Kilohms, Electronically Balanced Input Impedance (Line Mode) >10 Kilohms, Electronically Balanced Preamp Gain (Mic Mode) User-Selectable 0 to 60 dB in 3 dB Steps 0 dBFS Line-Up (Mic Mode) -58 dBu at Max Preamp Gain, 2 dBu at Min Preamp Gain 0 dBFS Line-Up (Line Mode) User-Selectable +15 / +18 / +20 / +22 / +24 dBu = 0 dBFS Frequency Response (Mic Mode) +0/-0.2 dB 20 Hz to 22 kHz, Ref 40 dB Gain at 1 kHz Frequency Response (Line Mode) +0/-0.2 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THDN (Mic Mode) <-90 dBFS, -64 dBFS, 20 Hz—20 kHz, 40 dB gain, 20 kHz BW THD+N (Line Mode) <-98 dBFS, -30 dBFS, 20 Hz—20 kHz, 20 kHz BW Equivalent Input Noise (Mic Mode) 127 dB Ref. 60 dB Preamp Gain, Rs = 200 Ohms Noise (Line Mode) <-110 dBFS, 20 kHz BW, Rs = 200 Ohms C.M.R.R. >60 dB Phantom Power (Mic Mode) +48 VDC
Network	AoIP Standard Dante Number of Channels 16 Receive, 16 Transmit Number of Streams 16 Receive, 16 Transmit Sample Rate 48 kHz Format Linear PCM, 16-, 24-, or 32-Bit AES67 Support Yes Connectivity 2 x RJ45 and 2 x SFP Speed 1 Gb/s or 100 Mb/s Network Modes Switched or Redundant Dante Domain-Manager-Ready Yes
Power	PoE Standard: 802.3at Type 2 Class: 4 PD Power Range: 12.95 to 25.50 W Typical PSE Power Usage: 20 W Max PSE Power Usage: 30 W Mains Input Filtered IEC, 85-264 VAC, 47 to 63 Hz, 30 W Max External PSU (Optional) 12 VDC, Maximum 30 W, Anti-Surge Fuse 2 A / 20 × 5 mm
Stereo Digital I/O	Stereo Digital Input Input Impedance: 110 Ohms Supported Input rates: 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz Stereo Digital Output Output Impedance: 110 Ohms Supported Output Rate: 48 kHz
Weight	6.6 lb
