Blackmagic Design PYXIS 6K Standard Kit (L-Mount)

Expand
Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$379.64

You Save

$213.36

Shipping
Included*

*up to 2nd day air - overnight available

If you’re looking for a production bundle offering dedicated power, storage, and accessories for the Blackmagic PYXIS, you’re in the right place! This L-mount package covers the basics, providing you with the compatible EVF and top handle, with a couple little extras. Feel free to click on any of the highlighted links below for additional information and specifications!

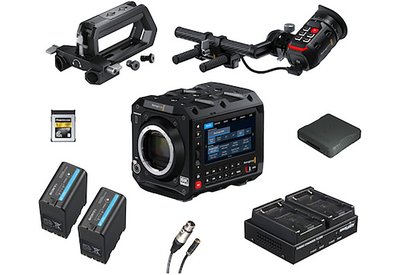

The Blackmagic Design PYXIS 6K Standard Kit (L-Mount) includes:

Q & A

Does this top handle include rods?
  • No, 15mm rods are not included.

Can the screen flip out?
  • No, the screen on the Blackmagic Design PYXIS is not an articulating screen and is built into the camera itself.

Does this camera have internal ND filters?
  • No, the Blackmagic Design PYXIS does not have internal neutral density filters.

Resources

Brand

Blackmagic

Camera Type

Camcorder

General

Dimensions (W x H x D)

  • 4.17 × 4.69 × 5.94″
Weight
  • 3.3 lb.
Accessory Mounts
  • 5x 1/4"-20 (bottom)
  • 5x 3/8"-16 (bottom)
  • 2x 1/4"-20 (body)
  • 1x 3/8"-16 (body)
  • 4x M4 (body)
  • No shoe mount
Battery Type
  • BP-U series



Imaging

Maximum Resolution

  • 6K (6048 × 4032)
Sensor
  • Type: Full Frame, CMOS
ISO
  • Dynamic Range: 13 Stops
  • Maximum ISO: 25,600 (expanded)
  • Base ISO: 400, 3200 (dual gain)
Neutral Density Filters
  • None



Interface

Media/Memory

  • Dual CFexpress Type B slots
Audio
  • 1x 3.5mm TRRS headphone jack
  • 1x 3.5mm TRS stereo mic jack
  • 1x 3-pin mini-XLR mic/line (+48V phantom power)
Video
  • 1x BNC (12G-SDI)
Power I/O
  • 12V DC input
  • BP-U battery port
Other
  • 2x USB-C
  • 1x BNC (reference/timecode)
  • 1x RJ45 (10 gigabit Ethernet)



Item Type

Camera

Mfr. Model Number

CINECAMCPYXA60LFL

Monitor

Viewfinder

  • None
LCD Panel
  • Fixed (in-body) 4" HDR Touchscreen (1920 × 1080)



Mount

L-Mount

Video Capture

Shooting Resolutions, Blackmagic RAW

  • 6048 × 4032 (Open Gate 3:2) up to 36 fps
  • 4832 × 4032 (Anamorphic 6:5) up to 36 fps
  • 6048 × 3408 (6K 16:9) up to 46 fps
  • 6048 × 3200 (6K DCI 17:9) up to 48 fps
  • 6048 × 2520 (6K 2.4:1) up to 60 fps
  • 4096 × 3072 (Super 35 4:3) up to 50 fps
  • 4096 × 2304 (4K 16:9) up to 60 fps
  • 4096 × 2160 (4K DCI 17:9) up to 60 fps
  • 2112 × 1184 (Super 16 16:9) up to 100 fps
  • 1920 × 1080 (1080 HD 16:9) up to 120 fps
