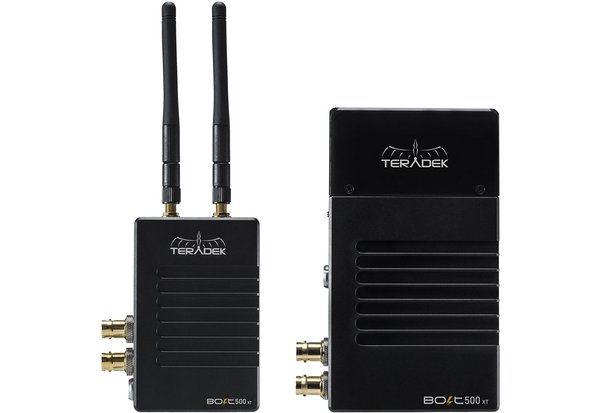

Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Kit

Gear Arrives On
Ships Back On
? ? ?
? ? ?

4 Day Rental Price:



*up to 2nd day air - overnight available

The Teradek Bolt 500 XT is an update to the Teradek Bolt 500 that has external transmitter antennas to improve signal strength and a redesigned housing with new mounting options. Key features include:

  • Transmit wireless, encrypted 1080/60p video without delay up to 500-feet line-of-sight.

  • Accepts and outputs 3G-SDI and HDMI signals with cross conversion

  • Backwards compatible with Bolt Pro 500, Sidekick II / LT / XT, & 703 Bolt

  • Multiple Powering Options

What’s New? The Teradek Bolt 500 XT is functionally the same as the Bolt 500. This wireless kit features the same inputs, outputs, and wireless video transmission, but the lightweight, aluminum housings are all new here with external transmitter antennas & transmitter-integrated ARRIrosette.

SDI and HDMI Input and Output. This kit accepts video via SDI or HDMI and can output SDI and HDMI with cross conversion of SDI and HDMI signals. An SDI loop through connector allows passthrough of transmitter video to monitors and secondary wireless devices.

1080/60p Wireless Monitoring. The transmitter offers support for uncompressed 10-bit 4:2:2 1080p video at up to 60 frames per second. Teradek states that line-of-sight transmission is up to 500 feet without break-up or image degradation and up to 100 feet without line-of-sight with less than 1ms latency. If you lose the signal, the Bolt 500 XT will instantaneously reconnect once you move back into range.

1:1 Kit That’s Expandable. This kit includes one transmitter and one receiver; however, the Bolt 500 XT transmitter lets you send video to up to four Bolt 500 XT, Bolt 500, Sidekick II, Sidekick LT, Sidekick XT, or 703 Bolt receivers simultaneously.

Multiple Powering Options. By default, each kit will include one D-Tap to 2-pin Lemo cable for powering the transmitter and one 18W 6-foot AC adapter for powering the receiver. Additionally, we include one Teradek Bolt XT Sony/Canon Bidirectional Battery Plate pre-attached to the receiver unit, enabling the receiver to be powered from your choice of Sony NP-F970 / Anton Bauer NP-F976 or Canon LP-E6 / LP-E6N battery. If you need battery power for the transmitter as well, you can rent an additional Sony L Series / Canon LP-E6 Bidirectional battery plate. Do note batteries / chargers are not included with the kit but are available for rent separately, depending on your needs.

Q & A

How is this receiver powered?

  • This receiver includes a single AC adapter for a continuous, long-term power option.

  • We also include the Teradek Bolt XT Sony/Canon Bidirectional Battery Plate. However, you’ll need to provide your own or rent compatible Sony NP-F970 / Anton Bauer NP-F976 or Canon LP-E6 / LP-E6N battery

How is this transmitter powered?

Is there anything else I need?

  • Video cables are not included with this kit! With there being so many different variations of HDMI and SDI cables that you could possibly need depending on your rig, we've elected to not bundle any video cables with the rental.  However, they are available to rent separately: HDMI Cables & SDI Cables.
Can the Bolt 500 transmitter or receiver be used with other Teradek Bolt series such as the Bolt Pro 300 or 1000?
  • No, each Bolt series can only send and receiver signals to other units within that same series.

Does the Bolt 500 XT really work at up to 500 feet?
  • The 500-foot range is a theoretical maximum distance in absolutely perfect conditions. Actual performance varies greatly depending on the location. Tests at our Memphis headquarters usually get about 50 feet indoors and 100 feet outdoors.



Item Type


Monitoring Type


AC Adapter - Teradek Bolt Pro 2-pin LEMO

Cable - USB 2.0 A Male to Mini-B

D-Tap Cable - Teradek 2-pin LEMO

Hardware - Teradek Bolt XT

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Support Accessory - 5/8 Receiver w/ 1/4-20 Threading

Teradek Bolt 500 XT NP-F970 / LP-E6 Battery Plate

Teradek Bolt 500 XT NP-F970 / LP-E6 Battery Plate

Teradek Bolt 500 XT SDI/HDMI Receiver

Teradek Bolt 500 XT SDI/HDMI Transmitter

Teradek Bolt Pro Pairing Guide

Video Support - Teradek Bolt TX Mounting Bracket
