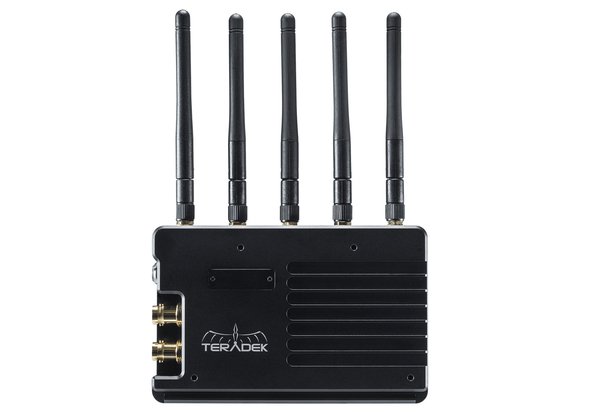

The Teradek Bolt 3000 XT 3G-SDI/HDMI Dual V-Mount Receiver is an add-on unit for the Teradek Bolt 3000 XT 3G-SDI/HDMI Dual V-Mount Kit. Key features include:

  • Add-on long-range receiver

  • Receive wireless, encrypted 1080/60p video without delay up to 3000 feet line of sight

  • Outputs 3G-SDI and HDMI signals

  • V-Mount batteries not included!

XT Upgrades. This long-range wireless receiver builds on the success of the Teradek Bolt 1000 XT and features the same 3G-SDI and HDMI inputs and outputs as well as the redesigned lightweight aluminum chassis design, complete with pre-installed pass-through battery plates.

Receiver Only. The Bolt 3000 XT series is capable of sending video to 4 receivers simultaneously. This rental includes a single receiver intended to be an add-on option for multicasting with our Teradek Bolt 3000 XT 3G-SDI/HDMI Dual V-Mount Kit. The 3000 XT receiver is also compatible with the Bolt Sidekick II, Sidekick LT, and Sidekick XT.

V-Mount Powered. In addition to a single 6-foot AC adapter, this kit includes one V-Mount male and one V-Mount female plate attached to the receiver unit. Do note, batteries / chargers are not included with the kit but are available for rent separately.

Realistic Wireless Expectations. While this kit is rated for wireless transmission up to 3,000 feet without break-up or image degradation, performance varies greatly from one location to the next. In our experience, we’ve found that use at the maximum distance is generally unreliable under normal circumstances due to RF interference. We recommend pairing the Bolt 3000 with an Antenna Array when long-distance transmission is critical.

Q & A

  • Does this rental include a battery or charger?
    • This rental does not include a V-Mount battery or charger but are they available as separate rentals here.

  • What's the best way to pair this receiver?
    • While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

  • Brand

    Teradek

    Item Type

    Monitoring

    Mfr. Model Number

    10-1997-V

    Monitoring Type

    Wireless

    Receiver

    Outputs

    • HD/3G-SDI (2x)
    • HDMI Type A (1x)
    Dimensions
    • 5.4” x 3.5” x .95”
    Weight (RX Only)
    • 13.3 oz
    Mount Compatibility
    • NATO rail
    • 3/8"-16
    • M3 (2x)
    Multicast Capable
    • 4 (RX):1 (TX)



    Video Processing

    Color Sampling

    • SDI: YCbCr 4:2:2 8-bit/10-bit (without format conversion)
    • HDMIRGB 4:4:4 8-bit
    Supported Formats
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080psf: 23.98/24
    • 1080i: 50/59.94/60
    • 720p: 50/59.94/60
    LUT Support
    • Alexa Log C – 709
    • BMCC Film – 709
    • Log C – 709
    • SGamut – 709
    Lut Display Options
    • Full Screen
    • Split Screen



    Wireless

    Latency

    • <0.001 sec
    Range
    • Up to 3000’ line of sight (under ideal conditions)
    Non-DFS Frequencies
    • 5.19 ~ 5.23 GHz
    • 5.755 ~ 5.795 GHz (US only)
    DFS Frequencies
    • US: 5.27 ~ 5.55 GHz and 5.67 GHz
    • EU & JP: 5.27 ~ 5.67 GHz
