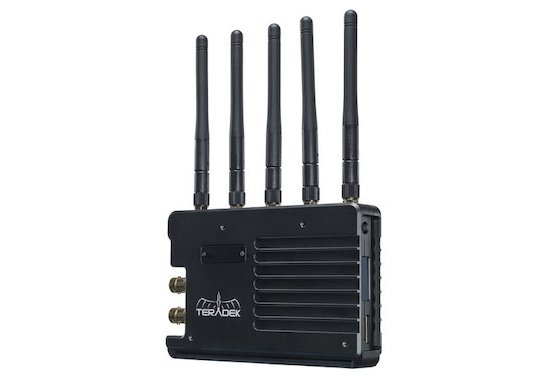

Teradek Bolt 1000 XT 3G-SDI/HDMI Gold Mount Receiver

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$180.00

Shipping
Included*

*up to 2nd day air - overnight available

The Teradek Bolt 1000 XT 3G-SDI/HDMI Dual Gold Mount Receiver is an add-on unit for the Teradek Bolt 1000 XT 3G-SDI/HDMI Dual Gold Mount Kit. Key features include:

  • Add-on Receiver

  • Receive wireless, encrypted 1080/60p video without delay up to 1000-feet line-of-sight

  • Outputs 3G-SDI and HDMI signals

  • Gold Mount batteries not included!

Product Updates. The Teradek Bolt 1000 XT Receiver functions nearly identically to the previous Teradek Bolt Pro 1000 Receiver. The most notable update is a redesigned aluminum housing that features an integrated nato rail, 3/8"-16, and dual M3 mounts.

SDI and HDMI Output. This kit can output SDI and HDMI with cross conversion of the two from a transmitter. Dual SDI outputs on the receiver provide more options for viewing the transmitted image.

1080/60p Wireless Monitoring. The transmitter offers support for uncompressed 10-bit 4:2:2 1080p video at up to 60 frames per second. Teradek states that line-of-sight transmission is up to 1000 feet without break-up or image degradation with less than 1ms latency. If you lose the signal, the Bolt 1000 XT will automatically reconnect once you move back into range.

Receiver Only. This kit includes one receiver because a Bolt 1000 XT transmitter is capable of sending video to up to four Bolt 1000 XT receivers, Bolt Pro 1000 receivers, Sidekick II, Sidekick LT, Sidekick XT, or 703 Bolt receivers simultaneously.

Gold-Mount Powered. Each kit will include one 18W 6-foot AC adapter for powering the receiver. Additionally, we include one Gold-Mount male and one Gold-Mount female plate attached to the receiver unit. Do note, batteries / chargers are not included with the kit but are available for rent separately.

Q & A

What's the best way to pair this receiver?
  • While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

Does this rental include a battery or charger?
  • This rental does not include a gold mount battery or charger but they are available here as separate rental items.

Brand

Teradek

Item Type

Monitoring

Monitoring Type

Wireless

Receiver

Outputs

  • HD/3G-SDI (2x)
  • HDMI Type A (1x)
Dimensions
  • 5.4” x 3.5” x .95”
Weight (RX Only)
  • 13.3 oz
Mount Compatibility
  • NATO rail
  • 3/8"-16
  • M3 (2x)
Multicast Capable
  • 4 (RX):1 (TX)



Video Processing

Color Sampling

  • SDI: YCbCr 4:2:2 8-bit/10-bit (without format conversion)
  • HDMIRGB 4:4:4 8-bit
Supported Formats
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080psf: 23.98/24
  • 1080i: 50/59.94/60
  • 720p: 50/59.94/60
LUT Support
  • Alexa Log C – 709
  • BMCC Film – 709
  • Log C – 709
  • SGamut – 709
Lut Display Options
  • Full Screen
  • Split Screen



Wireless

Latency

  • <0.001 sec
Range
  • Up to 1000’ line of sight (under ideal conditions)
Non-DFS Frequencies
  • 5.19 ~ 5.23 GHz
  • 5.755 ~ 5.795 GHz (US only)
DFS Frequencies
  • US: 5.27 ~ 5.55 GHz and 5.67 GHz
  • EU & JP: 5.27 ~ 5.67 GHz
