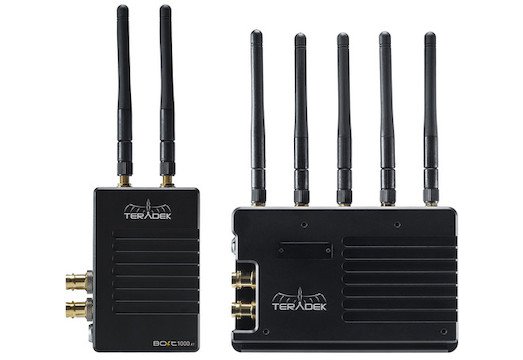

The Teradek Bolt 1000 XT 3G-SDI/HDMI Dual Gold Mount Kit is a professional quality wireless video transmission system and an update to the Teradek Bolt Pro 1000. Key features include:

  • Transmit wireless, encrypted 1080/60p video without delay up to 1000-feet line-of-sight

  • Accepts and outputs 3G-SDI and HDMI signals with cross conversion

  • Backwards compatible with Bolt Pro 1000, Sidekick II / LT / XT, & 703 Bolt

  • Batteries not included!

  • Product Updates. The Teradek Bolt 1000 XT functions nearly identically to the previous Teradek Bolt Pro 1000. The most notable update is a redesigned Bolt 1000 XT receiver with aluminum housing that features an integrated nato rail. Additionally there are 3/8"-16 and dual M3 mounts on the receiver and a 3/8"-16 ARRI accessory mount, dual M3 threaded holes, and a 1/4"-20 threaded hole on the transmitter.

SDI and HDMI Input and Output. This kit accepts video via SDI or HDMI and can output SDI and HDMI with cross conversion between the two. An SDI loop through connector allows passthrough of transmitter video to monitors and secondary wireless devices while dual SDI outputs on the receiver provide more options for viewing the transmitted image.

1080/60p Wireless Monitoring. The transmitter offers support for uncompressed 10-bit 4:2:2 1080p video at up to 60 frames per second. Teradek states that line-of-sight transmission is up to 1000 feet without break-up or image degradation with less than 1ms latency. If you lose the signal, the Bolt 1000 XT will automatically reconnect once you move back into range.

1:1 Kit That’s Expandable. This kit includes one transmitter and one receiver; however, the Bolt 1000 XT transmitter lets you send video to up to four Bolt 1000 XTBolt 1000, Sidekick II, Sidekick LT, Sidekick XT, or 703 Bolt receivers simultaneously.

Gold-Mount & NP-F/LP-E6 Powered. Each kit will include one D-Tap to 2-pin Lemo cable for powering the transmitter and one 18W 6-foot AC adapter for powering the receiver. Additionally, we include one Gold-Mount male and one Gold-Mount female plate attached to the receiver unit for standard gold mount brick batteries. On the transmitter, we include one Sony/Canon bidirectional battery plate attached for powering via your choice of Sony L-series or Canon LP-E6N batteries. Do note, batteries / chargers are not included with the kit but are available for rent separately.

Q & A

What's the best way to pair this kit?
  • While pairing in the field without a computer is an option, we highly recommend using the Bolt Manager app and a laptop, at least for initial setup. Software pairing should be the first step, with field pairing only being used as necessary to troubleshoot dropouts or interference on location. We include USB-A cables, so you’ll just need a computer with enough USB-A ports to accommodate the devices. If you’re pairing multiple receivers to a single transmitter, a USB hub might be helpful. Instructions for both software pairing and field pairing are included in the rental.

Does this rental include batteries or chargers?
  • This rental does not include batteries or chargers but they are available as separate rental items. The receiver is compatible with standard gold mount brick batteries. The transmitter features a bi-directional plate that is compatible with your choice of Sony L-series or Canon LP-E6N battery.

  • If you have any questions regarding battery compatibility, contact us and a tech will be happy to discuss the best options for your shoot.

Does this rental include any mounting hardware?
  • The Bolt 1000 XTs feature several versatile mounting options including 1/4-20 threads on the transmitter and 3/8-16 ARRI standard mounts on the receiver. The receiver also features an integrated nato rail. If you need the nato lock and rail clamp, they are available by request.



Brand

Teradek

Item Type

Monitoring

Monitoring Type

Wireless

Receiver

Outputs

  • HD/3G-SDI (2x)
  • HDMI Type A (1x)
Dimensions
  • 5.4” x 3.5” x .95”
Weight (RX Only)
  • 13.3 oz
Mount Compatibility
  • NATO rail
  • 3/8"-16
  • M3 (2x)
Multicast Capable
  • 4 (RX):1 (TX)



Transmitter

Inputs

  • HD/3G-SDI (1x)
  • HDMI Type A (1x)
Output
  • HD/3G-SDI Loop-out (1x)
Dimensions
  • 0.95” x 2.6” x 4.47”
Weight (TX Only)
  • 8oz
Mount Compatibility
  • ¼-20"
  • 3/8-16"
  • M3 (2x)
Multicast Capable
  • 1 (TX):4 (RX)



Video Processing

Color Sampling

  • SDI: YCbCr 4:2:2 8-bit/10-bit (without format conversion)
  • HDMIRGB 4:4:4 8-bit
Supported Formats
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080psf: 23.98/24
  • 1080i: 50/59.94/60
  • 720p: 50/59.94/60
LUT Support
  • Alexa Log C – 709
  • BMCC Film – 709
  • Log C – 709
  • SGamut – 709
Lut Display Options
  • Full Screen
  • Split Screen



Wireless

Latency

  • <0.001 sec
Range
  • Up to 1000’ line of sight (under ideal conditions)
Non-DFS Frequencies
  • 5.19 ~ 5.23 GHz
  • 5.755 ~ 5.795 GHz (US only)
DFS Frequencies
  • US: 5.27 ~ 5.55 GHz and 5.67 GHz
  • EU & JP: 5.27 ~ 5.67 GHz

AC Adapter - Teradek Bolt Pro 2-pin LEMO

Cable - USB 2.0 A Male to Mini-B

D-Tap Cable - Teradek 2-pin LEMO

Hardware - Teradek Bolt XT

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Support Accessory - 5/8 Receiver w/ 3/8-16 Threading

Teradek Bolt 1000 XT 3G-SDI/HDMI Receiver

Teradek Bolt 1000 XT 3G-SDI/HDMI Transmitter

Teradek Bolt 1000 XT RX Gold Mount Female Battery Plate

Teradek Bolt 1000 XT RX Gold Mount Male Battery Plate

Teradek Bolt 500 XT NP-F970 / LP-E6 Battery Plate

Teradek Bolt Pro Pairing Guide

Video Support - Teradek Bolt TX Mounting Bracket
