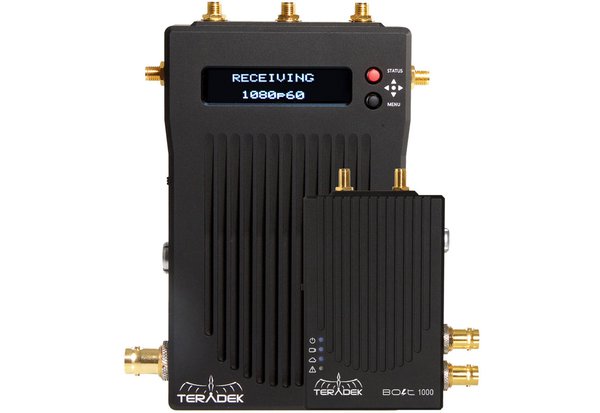

The Teradek Bolt Pro 1000 Wireless 3G-SDI/HDMI Gold Mount Kit is an industry favorite for wireless video transmission. Key features include:
Lossless video up to 1000’ with no delay
Small and lightweight
Built-in HDMI to SDI converter
Gold Mount batteries not included!
Long Range. The Teradek Bolt Pro 1000 transmits visually-lossless, uncompressed 10-bit 4:2:2 1080/60p video at theoretically up to1000’ with virtually no delay.*
Gimbal Friendly. The transmitter for the Bolt Pro 1000 is small and lightweight, making it a great partner to your gimbal system of choice.
Criss-Cross Signals. A built-in SDI/HDMIconvertor allows you manage devices and monitors on a single signal, regardless of Input/Output limitations.
Other Notable Features. The Bolt Pro 1000 has a host of other great features like the ability to rapidly reconnect a dropped signal once you move back to range automatically, support for 3D LUTs, and USB 3.0 GRAB Engine.
Dual Gold Mount Battery Plates. This version of the Bolt Pro 1000 Kit includes dual Gold Mount plates for both the transmitter and receiver. This allows you to sandwich the Bolt Pro units between the camera / monitor and battery. Since we have Gold Mount battery and charger options, we’ve elected to not include any with the rental.
Powering. In addition to the battery plates mentioned above, we also include (2) AC adapters and (2) D-Tap to Lemo Power Cables with the rental.
Video cables not included! With there being so many different variations of HDMI and SDI cables you could possibly need depending on your rig, we've elected to not bundle any video cables with the rental. However, here are links our available cables: HDMI Cables & SDI Cables
Transmitter | |
---|---|
Video Input | 1 x 3G/HD/SD-SDI, BNC (75 Ohms) 1 x HDMI |
Video Output | 1 x 3G/HD/SD-SDI, BNC (75 Ohms), loop-through out |
Channels | Number of 20 MHz DFS Channels: 24 (200 MHz channels cannot utilize interlaced, PsF, or 1080p 60/50) Number of 40 MHz DFS Channels: 11 (USA) |
Delay | <0.001 sec (when no video format conversion is enabled) |
Color Sampling | RGB 4:4:4 (HDMI out, 8-bit color) YCbCr: 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v1.1.0 or later) |
Formats | 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080PsF 30/29.97/25/24/23.98 1920 x 1080i 60/59.94/50 1280 x 720p 60/59.94/50 576 50 (via HDMI ports only) 480p 59.94 (via HDMI ports only) 576i/480i NTSC/PAL |
Wireless | Range: Up to 1000' / 305 m line-of-sight Non-DFS Frequencies: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz (US) / 5.19 to 5.23 GHz (EU & JP) DFS Frequencies: 5.27 to 5.55 GHz and 5.67 GHz (US) / 5.27 to 5.67 GHz (EU & JP) |
RF Power | 22 dBm EIRP (with two 5 dBi TX antennas) |
Noise Rejection | Can coexist with Wi-Fi and 5 GHz cordless phones |
Audio | 48 kHz, 24-bit PCM |
Mounting | 1/4"-20 threaded mounting holes |
Power | Volts: 7 to 28 VDC Consumption: 7.5 W Connector: 2-pin LEMO |
Dimensions | 0.9 x 2.6 x 4.0" / 2.4 x 6.6 x 10.2 cm |
Weight | 8 oz / 226.8 g |
Receiver | |
---|---|
Video Output | 1 x 3G/HD/SD-SDI, BNC (75 Ohms) 1 x HDMI 1 x Micro-USB 3.0 |
Delay | <0.001 sec (when no video format conversion is enabled) |
Color Sampling | RGB 4:4:4 (HDMI out, 8-bit color) YCbCr: 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v1.1.0 or later) |
Formats | 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080PsF 30/29.97/25/24/23.98 1920 x 1080i 60/59.94/50 1280 x 720p 60/59.94/50 576 50 (via HDMI ports only) 480p 59.94 (via HDMI ports only) 576i/480i NTSC/PAL |
Wireless | Range: Up to 1000' / 305 m line-of-sight Non-DFS Frequencies: 5.19 to 5.23 GHz and 5.755 to 5.795 GHz (US) / 5.19 to 5.23 GHz (EU & JP) DFS Frequencies: 5.27 to 5.55 GHz and 5.67 GHz (US) / 5.27 to 5.67 GHz (EU & JP) |
RF Power | 17 dBm EIRP (with one 2 dBi TX antenna) |
Noise Rejection | Can coexist with Wi-Fi and 5 GHz cordless phones |
Audio | 48 kHz 24-bit PCM |
Power | Volts: 7 to 28 VDC Consumption: 8.5 W Connector: 2-pin LEMO |
Dimensions | 5.5 x 3.5 x 0.9" / 13.9 x 8.9 x 2.5 cm |
Weight | 13.3 oz / 376 g |
