SmallHD Focus 5-inch On-Camera Monitor

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$77.00

Free

Shipping Included*

*up to 2nd day air - overnight available

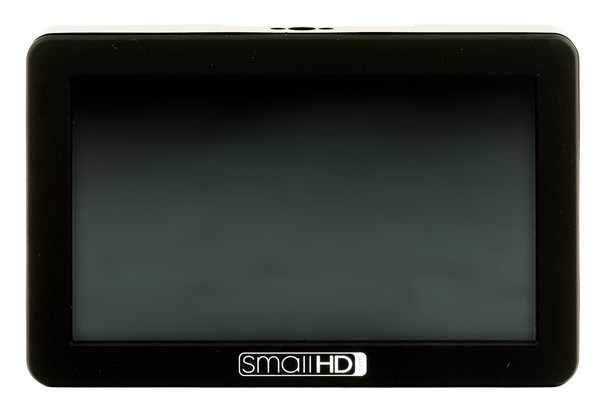

The SmallHD FOCUS 5-inch On-Camera Monitor is a lightweight monitor with a sharp display. It’s perfect for DSLRs and mirrorless cameras. Key features include:

  • Bright touchscreen LCD with micro-HDMI input

  • New Swipe OS interface

  • NP-F976 battery to increase run-times

  • Easy mounting via FOCUS Tilt Arm or 1/4"-20 thread

Bright Touchscreen. The SmallHD FOCUS 5-inch On-Camera Monitor’s bright, 800 cd/m² touchscreen 1280 × 720 IPSLCD is viewable even in daylight. It’s driven by a single micro-HDMI input.

Swipe OS Interface. The new Swipe OS system gives you graphical user interface (GUI) intuitiveness with touchscreen navigation. It lets you use the touchscreen to apply monitoring tools like waveform and vectorscope to twelve different “pages,” swipe through different preset pages, and adjust settings, saving you from endless menu diving.

3D LUTs. You can apply 3D LUTs to the monitor while still viewing your video in real time.

Camera Setup Integration. The FOCUS’s headphone jack and power output make it perfect for use with smaller cameras. If your camera doesn’t have a headphone jack, this monitor can give you real-time audio playback. Using a separately available power adapter cable, you can increase run-times by powering your camera directly from the included Anton Bauer NP-F976 Battery that’s mounted on the monitor.

Easy Mounting. You can use the included FOCUS Tilt Arm via shoe mount or the 1/4"-20 thread to secure this monitor to your camera. The Tilt Arm enables 180° of tilt for convenient monitoring, and its cold shoe lets you use equipment—such as microphones, LED lights, and wireless receivers—that’d normally be displaced from the camera’s accessory shoe.

HDMI Compatibility. Do note that the SmallHD Focus requires a microHDMI cable with a somewhat custom-sized plug. We carry separately rentable versions of the required cable in Micro-MaleMicro-Mini and Micro-Micro configurations.

NO HDMI CABLES ARE INCLUDED, please rent the appropriate proprietary SmallHD FOCUS HDMI cable here.

Display



Panel Type 5-Inch Touchscreen
Size Diagonal 5
Resolution 1280x720
Pixel Density (PPI) 294
Aspect Ratio 16:9
Active Area 5.0”
Brightness 800nits
Contrast
Color Gamut
Color Depth 10-bit
Viewing Angle 160 Degrees
Backlight Type White LED
Adjustable Backlight Y
Temperature Adaptive Color N

Input Signal Types/Formats



3G-SDI Not Supported
HD-SDI Not Supported
SD-SDI Not Supported
HDMI Supports UHD-1 4K at 30/29.97 @ RGB 444 8bit, YCC 444 8bit, YCC 422 12 bit & 24/23.98 @ RGB 444 10/8 bit, YCC 444 10/8bit, YCC 422 12 bit Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Component Not Supported
Composite Not Supported
Audio HDMI and SDI

Output Signal Types/Formats



3G-SDI Not Supported
HD-SDI Not Supported
SD-SDI Not Supported
HDMI Not Supported
Component Not Supported
Composite Not Supported
Audio Stereo Out (Headphones)

Connector Type



SDI
HDMI 1x Micro-HDMI Input
Component
Composite
Audio ⅛” Stereo mini-jack
Power In 1x Sony L-Style Battery slot
Power Out Barrel output for powering cameras via adaptor
USB 1x Micro-USB Connector

Controls



Primary Control Interface Capacitive Touchscreen
Record/Capture
User Defined Functions
RF Wireless Remote / External Control Compatible with SmallHD BTR1 Wireless Remote
USB Remote / External Control

Data I/O



Storage SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades
USB
Wireless Compatible with SmallHD BTR1 Wireless Remote
Wifi

Power



Connector Type 1x Sony L-Style Battery slot, 1x barrel connector for powering camera
Voltage 6.0 - 8.4V
Power Consumption
Battery Plate Included
Recommended Power Supply Battery Only Device
Overload Protection Yes
Smart Battery Compliant
Battery Types Sony NPF (L-Series)
Battery Chemistry Li-ion
Output Voltage (VDC) Mirrors Input Voltage from battery
Battery Capacity (mAh) 2000mAh - 6300mAh
Battery Charging Time (hours) Monitor does not support the charging of batteries.

Environmental



Compliance
Operating Temperature
Storage Temperature
Screen Protection
Height 3.3" (8.38cm)
Width .75" (1.91cm)
Depth/Length 5.25" (13.34cm)
Weight (Item Only without battery) 3.75oz (106.31g)
Weight (Packaged) 4.16oz (117.93g)

Charger - Sony AC-VQ1051D

Charger - Polarized Cable

Monitor Accessory - SmallHD Focus Sun Hood

Monitor Accessory - SmallHD Focus Cable Clips

Monitor Accessory - SmallHD Focus Tilt Arm

Monitor Accessory - SmallHD Focus Arm Cold Shoe

Bag - Porta Brace PB-B9 Stuff Sack

Battery - Anton Bauer NP-F976
