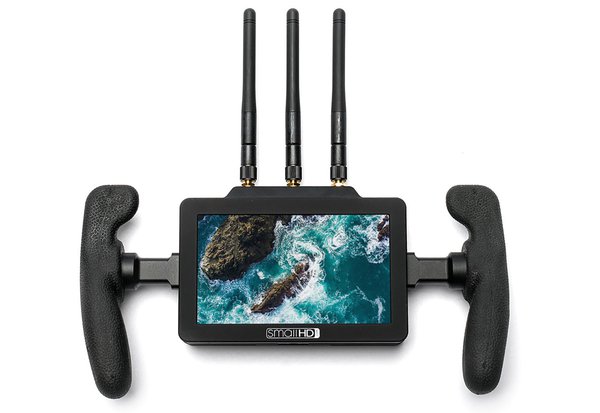

The SmallHD Focus Bolt 500 RX Wireless Monitor is a version of the original Focus monitor with a built-in Teradek Bolt 500 RX for receiving wireless video to compatible devices. Key features include:

  • Built-in Teradek Bolt 500 receiver for wireless video

  • Bright touchscreen LCD with micro-HDMI input

  • Included side grips and neck strap

  • Uses Anton Bauer L-series NP-F976 batteries

Same Focus Monitor. New Internal Wireless Receiver. The SmallHD Focus Bolt 500 RX Wireless Monitor builds on the very popular SmallHD Focus monitor by finding room in the housing for a Teradek Bolt 500 receiver that allows for up to a reported 500ft of wireless video transmission. This package does not include a wireless transmitter, but you can rent the SmallHD Focus Bolt 500 TX On-Camera Monitor for an on-camera monitor/transmitter combo. Alternately, we do also rent full Teradek Bolt 500 / Bolt 500 XT wireless kits that include the TX unit.

Side Grips & Neck Strap. This kit is built as a director’s monitor and comes with contoured side handles and a neck strap to redistribute weight from your arms and prevent fatigue.

Bright Touchscreen. The SmallHD Focus Bolt 500 RX Wireless Monitor’s bright, 800 cd/m² touchscreen 1280 × 720 IPS LCD is viewable even in daylight, and attaching the included sun hood makes daylight viewing even better.

Swipe OS Interface. The new Swipe OS system gives you graphical user interface (GUI) intuitiveness with touchscreen navigation. It lets you use the touchscreen to apply monitoring tools like waveform and vectorscope to twelve different “pages,” swipe through different preset pages, and adjust settings, saving you from endless menu diving. The monitor’s OS also allows for 3D LUTs to be applied for real-time viewing.

Camera Setup Integration. The FOCUS’s headphone jack and power output make it perfect for use with smaller cameras. If your camera doesn’t have a headphone jack, this monitor can give you real-time audio playback. Using a separately available power adapter cable, you can increase run-times by powering your camera directly from the included Hawk-Woods DV-F590 Battery that’s mounted on the monitor. See recommended or Q&A sections for full list of power adapters available.

HDMI Compatibility. Do note that the SmallHD Focus requires a microHDMI cable with a somewhat custom-sized plug. We carry separately rentable versions of the required cable in Micro-MaleMicro-Mini and Micro-Micro configurations.

Brand

SmallHD and Teradek

Item Type

Monitoring

Monitoring

LCD Panel

  • 5” IPS LCD
  • Brightness: 800 nits
  • Resolution: 1280 × 720
  • Touchscreen
  • PPI: 294
  • Aspect Ratio: 16:9 native
LUT Support
  • 3D LUT
Anamorphic De-Squeeze
  • 2x, 1.5x, 1.33x, 1.66x



Monitoring Type

Monitor

Physical

Dimensions (W x H x D)

  • 1.18 × 3.3 × 5.25″ (without grips)
Accessory Mounts
  • ¼-20 (center top and bottom, right)
  • Shoe clamp
Weight
  • 9.2 oz (without battery)
Operating Temperature
  • 32°-113°F



Power Supply

AC Adapter

  • Not Available
Battery
  • Type: Anton Bauer Type-L (NP-F976 supplied)
  • Operating Time: Up to 2 hrs while powering a camera

Battery - Hawk-Woods DV-F590

Battery - Hawk-Woods DV-F590

Charger - Polarized Cable

Charger - Sony AC-VQ1051D

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - Bolt 500 / 1000 Antenna

Monitor Accessory - SmallHD Bolt Neck Strap

Monitor Accessory - SmallHD Bolt Side Handle Bracket (Short)

Monitor Accessory - SmallHD Bolt Side Handle Bracket (Short)

Monitor Accessory - SmallHD Bolt Side Handle (Left)

Monitor Accessory - SmallHD Bolt Side Handle (Right)

Monitor Accessory - SmallHD Focus Cable Clips

Monitor Accessory - SmallHD Focus Sun Hood

Monitor - SmallHD FOCUS Bolt 500 RX
