SmallHD Focus 5.5-Inch OLED HDMI Monitor

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$86.00

Free

Shipping Included*

*up to 2nd day air - overnight available

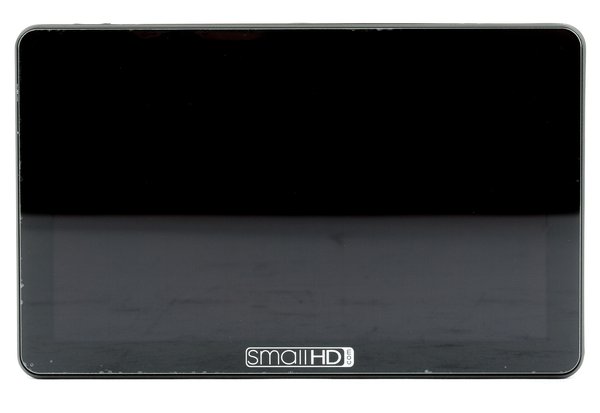

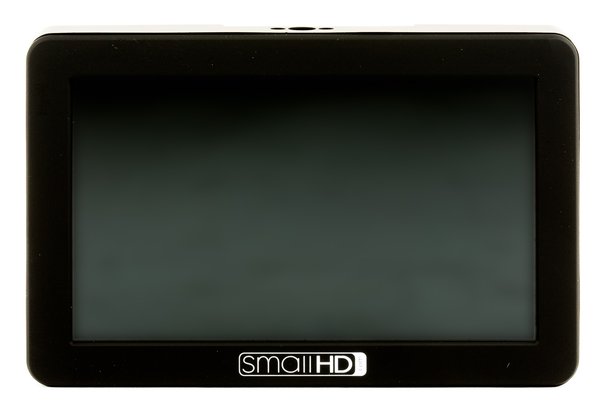

The SmallHD FOCUS 5-inch OLED On-Camera HDMI Monitor is a lightweight HDMI monitor with a sharp, high-contrast, 1080p display. It’s perfect for compact HDMI capable camera rigs. Key features include:

  • Touchscreen 5.5" 1080p OLED display with HDMI input

  • Intuitive swipe OS interface

  • NP-F976 battery to increase run-times

  • Easy mounting via Focus tilt arm or 1/4"-20 thread

1080p OLED Touchscreen. The SmallHD FOCUS 5-inch On-Camera Monitor’s vidid, touchscreen OLED screen makes pulling focus a cinch thanks to its sharp 5.5" 1080p display . It’s driven by a single HDMI input.

Swipe OS Interface. The new Swipe OS system gives you graphical user interface (GUI) intuitiveness with touchscreen navigation. It lets you use the touchscreen to apply monitoring tools like waveform and vectorscope to twelve different “pages,” swipe through different preset pages, and adjust settings, saving you from endless menu diving.

3D LUTs. You can apply 3D LUTs to the monitor while still viewing your video in real time.

Camera Setup Integration. The FOCUS’s headphone jack and power output make it perfect for use with smaller cameras. If your camera doesn’t have a headphone jack, this monitor can give you real-time audio playback. Using a separately available power adapter cable, you can increase run-times by powering compatible cameras directly from the included Anton Bauer NP-F976 Battery that’s mounted on the monitor.

Easy Mounting. You can use the included FOCUS Tilt Arm via shoe mount or the 1/4"-20 thread to secure this monitor to your camera. The Tilt Arm enables 180° of tilt for convenient monitoring, and its cold shoe lets you use equipment—such as microphones, LED lights, and wireless receivers—that’d normally be displaced from the camera’s accessory shoe.

HDMI Compatibility. Do note that the SmallHD Focus requires a microHDMI cable with a somewhat custom-sized plug. We carry separately rentable versions of the required cable in Micro-MaleMicro-Mini and Micro-Micro configurations.

NO HDMI CABLES ARE INCLUDED, please rent the appropriate proprietary SmallHD FOCUS HDMI cable here.

Brand

SmallHD

Item Type

Monitoring

Monitoring

LCD Panel

  • 5.5” OLED
  • Brightness: 350 nits
  • Resolution: 1920 × 1080
  • Touchscreen
  • PPI: 402
  • Aspect Ratio: 16:9 native
LUT Support
  • 3D LUT
Anamorphic De-Squeeze
  • 2x, 1.5x, 1.33x, 1.66x



Monitoring Type

Monitor

Physical

Dimensions (W x H x D)

  • 1.18 × 3.45 × 5.54″
Accessory Mounts
  • ¼-20 (center top and bottom, right)
  • Shoe clamp
Weight
  • 9.2 oz (without battery)
Operating Temperature
  • 32°-140°F



Power Supply

AC Adapter

  • Not Available
Battery
  • Type: Anton Bauer Type-L (“NP-F976”:/rent/anton-bauer-np-f976-battery supplied)
  • Operating Time: Up to 2 hrs while powering a camera
