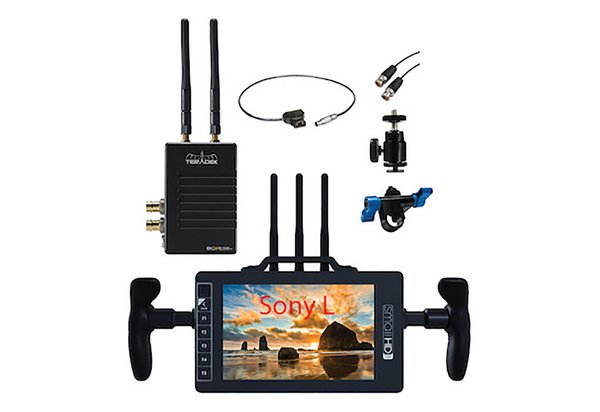

The SmallHD 703 Bolt Monitor w/ Bolt 500 XT Transmitter Kit is a wireless monitoring kit that bundles a 703 Bolt Sony L Monitor and Teradek Bolt 500 XT Transmitter. Key features include:
1080p monitor w/ Teradek Wireless Rx & bundled Tx
SDI & HDMI transmitter inputs
Includes side handles, neck strap & Sony L battery plate
Teradek Bolt 500 XT Transmitter included
1080p Monitor, Receiver, & Transmitter. The SmallHD 7-inch 703 Bolt Monitor w/ Bolt 500 XT Transmitter Kit pairs a 703 Bolt Sony L Monitor featuring an integrated Teradek Sidekick Wireless Rx with a Teradek Bolt 500 XT Transmitter to make this a functioning wireless system. Most of the features of the SmallHD 703 are here including a 7" 1080p display, SDI in & out ports, and bright 300 cd/m² lcd backlight. Please note that this kit is good for a maximum of 300 feet of wireless HD video with no perceptible latency, regardless of the transmitters reported working distance.
Teradek Bolt 500 XT Transmitter. Features include SDI & HDMI inputs capable of ingesting uncompressed 10-bit 4:2:2 1080p video at up to 60 fps. The Bolt 500 XT transmitter lets you send video to four Bolt receivers simultaneously, and you can rent additional receivers here.
Side Grips & Neck Strap. This kit is built as a director’s monitor and comes with contoured side handles and a neck strap to redistribute weight from your arms and prevent fatigue.
SDI & HDMI. The monitor accepts inputs up to 1080/60p via 3G-SDI, and second SDI port functions as another input or an output. Audio can be monitored through an 1/8" (3.5mm) headphone jack. We include an ultra-lightweight 2.6ft SDI cable for connecting cameras with BNC SDI video outputs.
Power. This kit includes Sony L-series battery plates for powering both the 703 Bolt Monitor and Bolt 500 XT Transmitter and 3 Hawk-Woods DV-F790 L-Series Battery. We also include a Teradek 2-Pin LEMO to D-Tap Cable for powering the transmitter via D-Tap.
Other Notable Features. The SmallHD PageBuilder OS allows you to set up discreet pages with augments like 3d LUTs, frame guides, HD scopes, focus assist, exposure control, and peaking tools. The IPS LCD display has a 160° viewing angle and 1150:1 contrast ratio to ensure that accurate colors are always represented.
The Teradek Bolt 500 XT Transmitter has a Teradek Bolt XT Sony/Canon Bidirectional Battery Plate pre-attached enabling it to be powered from your choice of Sony L-series or LP-E6N battery. We also include a Teradek 2-Pin LEMO to D-Tap Cable for powering the transmitter via D-Tap.
No. The monitor itself does not have an HDMI input port, but the included Bolt 500 transmitter does and will allow for cameras with HDMI outputs to be wirelessly streamed to the monitor.
Yes! This kit includes both the SmallHD 703 Bolt Sony L Monitor and a Teradek Bolt 500 XT Transmitter for a complete wireless kit.
