SlingStudio Hub Production Kit

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$139.00

Shipping
Included*

*up to 2nd day air - overnight available

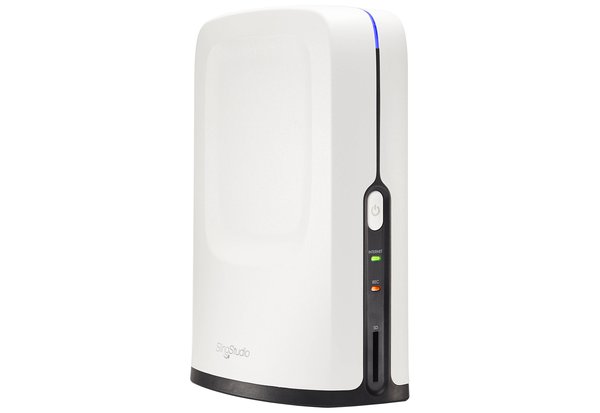

The SlingStudio Hub Production Kit is a package that allows for completely wireless camera switching, recording, and streaming of up to four 1080p 30 fps video signals to YouTube, Facebook Live, and other RTMP streaming services. Key features include:

  • Up to four-camera wireless streaming

  • Wireless camera link included for HDMI video sources

  • Up to three hours of streaming from one battery

  • iPad or Mac computer required!

Four-Camera Wireless Switching. The SlingStudio Hub Production Kit is a package that allows for completely wireless camera switching, streaming, and recording at up to 1080p 60 fps over 802.11ac wifi. The hub can handle two inputs carrying a 1080p 60 fps signal or four inputs at 1080p 30 fps, and up to 10 wireless video devices can be simultaneously connected to the hub for quick swapping of inputs. There are a few options for wired input by way of an HDMI port and 3.5mm audio jack. Switching is done via the SlingStudio Console iPad or Mac OSX app. Cut, wipe, and dissolve transitions are simple but effective, and audio can be mixed and matched from wireless inputs or the line level, two-channel, line-in jack.

YouTube, Facebook Live, Twitch, & Other RTMP Streaming. The Sling Studio Hub can send your live production out to YouTube, Facebook Live (information regarding new API restrictions can be found here), Twitch, Livestream, Ustream, Restream.io, and any other RTMP compatible streaming service at up to 8mbps. Streams can be sent out to these services via the devices built-in wifi or Gigabit ethernet via the included USB-C breakout adapter.

Three-Hour Battery Life. To make this package completely wireless, we include the SlingStudio Hub battery which will power the hub for up to three hours. The battery takes four hours to fully charge, so renting extra batteries or setting up close to AC power should be considerations. The wireless camera link has its own internal battery that will last two hours before needing to be charged or plugged into a 10W USB charger, and charging the CameraLink will also take four long hours.

Smartphones As Video Inputs. One of the cooler features of the SlingStudio is the ability to install the Sling Capture app on your compatible iPhone or Android phone and wireless send video from your mobile device directly into the hub. This lets you expand beyond a one camera livestream without the need for additional CameraLinks and expensive cameras.

Smooth Post-Production Workflow. The SlingStudio has multiple options for recording the video being streamed. Footage can be stored on SD cards or USB 3.0 storage drives in a manageable H.264 4:2:0 codec at up to 30Mbps. The hub can simultaneously record four inputs, a quad view, program out, and line-in audio, and what’s even more impressive, is the ability to pull this recording into Adobe Premiere Pro CC or Final Cut Pro and have all of your tracks neatly aligned and complete with transitions made during the stream.

CameraLink Pairing Tutorial.

Q & A

  • How many CameraLinks can be connected to one SlingStudio Hub?
    • Up to 10 CameraLinks or mobile devices can be simultaneously connected to one SlingStudio Hub. However, only four of those can be actively switched at any given time.

  • Does this rental include recording media?
    • This rental doesn’t include a memory card or hard drive for recording. You’ll need to provide one of your own or rent one here.

  • Do I really need an iPad or Mac computer?
    • Yes! The entire setup process / interface requires an iPad or Mac. There is absolutely no way around this.

    • Since many people own an iPad of their own, we do not include one to try to keep cost down. However, check the compatibility list first to ensure yours is compatible.

  • What if I need to shoot for longer than 2-3 hours?
    • While we do include an AC Adapter, you can rent additional batteries here. Do note that spare batteries do not include a charger, so you’ll have to use the power supply that comes standard with the SlingStudio Hub Production Kit.

    • The CameraLink transmitter runs off of an internal battery that is rated to last approximately 2 hours. For longer shoots, you can switch to a new, fully charged CameraLink with a brief video feed interruption. Additional CameraLinks can be found here.

  • What is the operating range of the CameraLink?
    • The transmitter will work up to 300 feet away line-of-sight in an interference free environment.

  • Are HDMI cables included in this package?
    • No. Compatible cables can be found on the right of this page under the Recommended tab or by clicking here. The Hub and CameraLink have different HDMI sizes, so choose accordingly.

  • Brand

    SlingStudio

    CameraLink

    Video Input

    • 1x HDMI Type D (micro)
    Supported Video Encoding
    • 1080p60 up to 30 Mbps
    • 1080p30 up to 16 Mbps
    • 720p60 up to 16 Mbps
    • 720p30 up to 4 Mbps
    Supported Audio Encoding
    • AAC-LC at 320 kb/s
    • 2-channel 48 KHz, 16-bit (HDMI embedded)
    Internal Battery
    • Operation Time: 2+ hours
    • Recharge Time: 3-4 hours (Micro USB)
    Wireless
    • 802.11ac Standard
    • Up to 300’ transmission distance



    Item Type

    Monitoring and Switcher

    Monitoring Type

    Streaming and Wireless

    Production Hub

    Inputs/Outputs

    • Video In: 1x HDMI Type A (full)
    • Video Out: 1x HDMI Type C (mini)
    • Analog Audio In: 3.5mm line-level (external preamp or mixer required)
    Wireless Video Support
    • 4x sources (1080p30/720p60/720p30)
    • 2x sources (1080p60)

    Recording Media
    • SDHC/SDXC
    • External drive compatible
    Multi-Stream Recording
    • 4x Video sources/inputs
    • 1x Quad view
    • 1x Program stream
    • 1x line-in (audio only)



    Video Effects

    Transitions

    • Cut
    • Dissolve
    • Wipe
    Compositions
    • Picture-in-picture
    • Split views
    Graphics
    • Chroma Key (green screen)
    • Text overlay
    • Lower-thirds (title and scoreboard)
    • Motion Graphics
    Graphics Support
    • JPG/PNG 1920×1080
    • MP4/MOV 1920×1080 (H.264 required, 4 GB maximum file size)
    Additional Support
    • Auto-Switching (interval or voice-activated)
    • Low-Delay/Video Conferencing Mode

    AC Adapter - SlingStudio PA-1500-5ES1

    Cable - Anker PowerExpand+ 5-in-1 USB-C HDMI Ethernet Hub

    Cable - USB 2.0 A Male to Micro B

    Charger - Non-Polarized Cable

    Support Accessory - Hot Shoe to 1/4-20" Adapter

    Switcher - SlingStudio CameraLink

    Switcher - SlingStudio Hub

    Switcher - SlingStudio Hub Battery

    USB Charger - Type-A 5V/2.1A 1-Port
