Sachtler DV-12SB Fluid Head & Carbon Fiber Tripod Legs

Gear Arrives On
Ships Back On
? ? ?
? ? ?

4 Day Rental Price:



Shipping Included*

*up to 2nd day air - overnight available

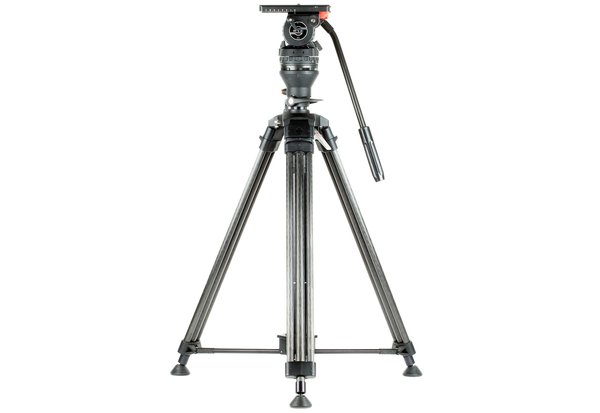

Our Sachtler DV-12SB Fluid Head with 100mm ball is mounted to the CF-100ENG 2CF carbon fiber tripod legs. This system includes a mid-level spreader, rubber feet, and a padded carrying bag. This system will hold up to 31 lbs, giving you the smoothest pans even with a heavy rig. The head offers a 12-step counterbalance with a 3" sliding plate to make the balance ideal on any configuration. It also has 5 steps of drag in both axes to give you just the right amount of push back. Sachtler's Touch & Go quick release system allows you to snap a heavy rig into place and lock it down easy. The feet feature the included rubber feet, or take them off to use the spikes. The 4-stop multi-level spreader is a favorite around the office here for it's ability to consistently give you the spread you need at the right time. The whole system weighs a little over 12 lbs.

  • Sachtler DV 12SB Fluid Head (100mm)
  • Load Capacity 2.2 - 31 lbs (1 - 14 kg)
    Diameter/Thread 100mm 4" Half Ball
    Counter Balance System Torsion Springs
    Counter Balance Range 12 Steps
    Quick Release/Wedge Plate Yes (Cat #1063)
    Balance Plate Yes, 2.8" (70mm) Sliding Range
    Tilt Drag 5 steps plus zero
    Tilt Range +90 to -75°
    Tilt Lock Yes
    Spring Loaded Counter Balance 5 steps plus zero
    Pan Range 360°
    Pan Lock Yes
    Leveling Bubble/Illuminated Yes / Illuminated
    Temperature Range -40 to 140°F
    Height 7" (17.7 cm)
    Weight 6 lbs (2.7kg)
  • Sachtler CF-100ENG 2CF Carbon Fiber Tripod Legs
  • Material Carbon Fiber
    Load Capacity 88 lb
    Bowl Diameter/Thread 100mm 4" Half Bowl
    Minimum Height 15.5"
    Maximum Height 59.0"
    Leg Stages/Sections 2/3
    Leg Lock Type Quick Clamp Torque Lock
    Center Brace/Mid-Level Spreader No
    Spiked/Retractable Feet Spiked
    Folded/Transport Length 27.2"
    Weight 5.3 lb
    Other Spreader Required

Sachtler QR Plate for DV-12SB
