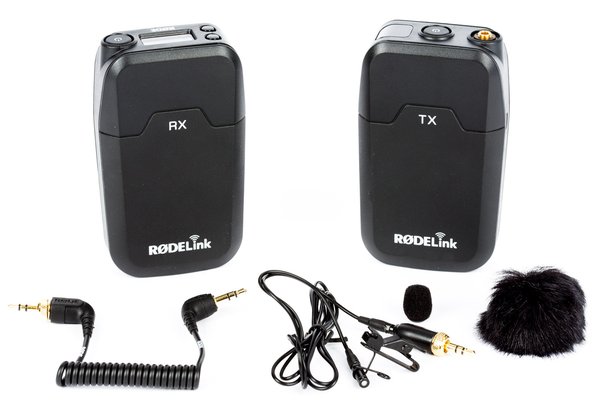

This is Rode's answer to Sennheiser's G3 and Shure's FP wireless Lav system. The RodeLink Wireless system includes a Rode Lav Mic, Wireless Transmitter, Wireless Receiver, and 3.5mm-3.5mm Audio Cable. The kit is capable of providing 24-bit 44.1 kHz lossless audio at a distance of up to 300 feet! The system constantly changes frequencies to obtain the strongest signal with the least interference. A unique one-touch operation automatically scans and pairs the transmitter and receiver over 8 different channels with 8000 combinations. The pair can be powered directly by 2x AA batteries each or by micro USB cables. You can plug the receiver directly into your DSLR Mic input or into an external digital audio recorder using the included 1/8"-1/8" audio cable. If your recorder of choice requires XLR, check out our 1/8" to XLR adapters.
The transmitter features a locking 3.5mm input, 3 stage gain adjustments, and a locking mute switch.
Batteries not included. Speaking of batteries:
General Specifications | |
---|---|
Transmission Type | 2.4 GHz fixed frequency agile system |
Dynamic Range | 112 dB |
Range | 100 m |
Frequency Range | 35 Hz to 22 kHz |
Maximum Output Level | 1 Vrms (2.8 V, peak to peak) |
Maximum Input Sound Level | 1 Vrms (2.8 V, peak to peak) |
Latency | Maximum Latency: 4 ms |
Receiver | |
---|---|
Power Source | 2 x AA battery and micro-USB |
Antenna | Internal |
Output Connection | 3.5 mm TRS jack socket (dual mono with thread lock) |
Output Impedance | 300 ohms |
Transmitter | |
---|---|
Power Source | 2 x AA battery and micro-USB |
Antenna | Internal |
Input Connection Type | 3.5 mm TRS jack socket (with thread lock) |
Input Impedance | 10 kOhms |
Lavalier Microphone Specs | |
---|---|
Acoustic Principle | Pressure gradient |
Active Electronics | JFET impedance converter |
Capsule | 0.1" / 2.5 mm |
Polar Pattern | Omnidirectional |
Frequency Response | 60 Hz to 18 kHz |
Output Impedance | 3 kOhms |
Max SPL Level | 110 dB SPL (@ 1 kHz, 1% THD into 1 ohm load) |
Maximum Output Level | 189 dBu (@ 1 kHz, 1% THD into 1 kOhm load) |
Sensitivity | -33.5 dB, 1 V/Pascal (21.00 mV @ 94 dB SPL) ±2 dB @ 1 kHz |
Equivalent Noise Level | 25 dB-A (A-weighted) |
Physical Dimensions | |
---|---|
Dimensions (H x W x D) | Receiver: 4.4 x 2.6 x 2.0" / 11.1 x 6.5 x 5.2 cm Transmitter: 4.4 x 2.6 x 1.6" / 11.1 x 6.5 x 4.0 cm Lavalier: 47.2 x 0.2 x 0.2" / 120.0 x 0.5 x 0.5 cm |
Weight | Receiver: 6.7 oz / 190.0 g Transmitter: 6.7 oz / 190.0 g Lavalier: 0.04 oz / 1.00 g |
