RED RAVEN 4.5K Digital Cinema Camera EF Mount
becomes available?

Want to add more than this item? Head to our waitlist builder

×

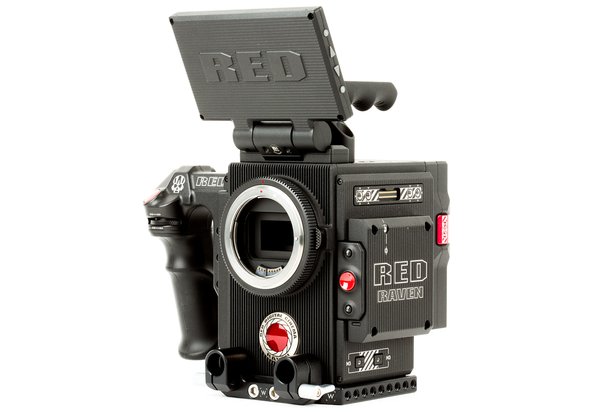

RED RAVEN 4.5K Digital Cinema Camera EF Mount

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$750.00

Free

Shipping Included*

*up to 2nd day air - overnight available

The RED RAVEN 4.5K Digital Cinema Camera EF Mount brings RED's famous DRAGON sensor to a much smaller EF mount body. Designed to be used on gimbals as well as a main camera, this thing is small, light, and agile. This beast can shoot 4.5K resolution at up to 120 fps and 2K resolution at up to 240 fps. You can even record REDCODE RAW and Apple ProRes simultaneously. Each 120GB Mini Mag can record REDCODE for 14 minutes of 4.5K @ 24fps 2:1, 57 minutes of 4.5K @ 24fps 11:1, 29 minutes of 4.5K @ 60fps 14:1, or 17 minutes of 4.5K @ 120fps 15:1. Rent additional Mini Mags here. We also include a V-mount plate and 2x Blueshape BV090 batteries and chargers, you can rent additional batteries and chargers here. Our RED RAVENs now include the DSMC2 side handle!

Ues this tool here to help calculate recording times on the Raven or any red camera http://www.red.com/tools/recording-time

SENSOR TYPE RED DRAGON® 9.9 Megapixel CMOS
EFFECTIVE PIXELS 4608 (h) x 2160 (v)
SENSOR SIZE 23.04 mm (h) x 10.8 mm (v) x 25.45 mm (d)
DYNAMIC RANGE 16.5+ stops
SIGNAL-TO-NOISE-RATIO 80 dB
MAX DATA RATES Up to 140 MB/s using RED MINI-MAG®
MAX FRAME RATES 1 120 fps at 4.5K 2.1:1 (4608 × 2160) and 15:1REDCODE
120 fps at 4.5K 2.4:1 (4608 × 1944) and 13:1REDCODE
120 fps at 4K Full Frame (4096 × 2160) and 13:1REDCODE
150 fps at 4K 2.4:1 (4096 × 1728) and 14:1REDCODE
150 fps at 3K Full Frame (3072 × 1620) and 10:1REDCODE
200 fps at 3K 2.4:1 (3072 × 1296) and 11:1REDCODE
240 fps at 2K Full Frame (2048 × 1080) and 8:1REDCODE
300 fps at 2K 2.4:1 (2048 × 864) and 8:1REDCODE
PLAYBACK FRAME RATES
(PROJECT TIMEBASE)
23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions
REDCODE® SETTINGS
RANGE FROM 2:1 UP TO 22:1 1
3:1 REDCODE for 4.5K 2.1:1 (4608 × 2160) at 24 fps
8:1 REDCODE for 4.5K 2.1:1 (4608 × 2160) at 60 fps
3:1 REDCODE for 4K (4096 × 2160) at 24 fps
7:1 REDCODE for 4K (4096 × 2160) at 60 fps
REDCODE RAW
ACQUISITION FORMATS 2
4.5K 2.1:1 (4608 × 2160), 2.4:1 (4608 × 1944)
4K Full Frame (4096 × 2160), 2:1 (4096 × 2048), 2.4:1 (4096 × 1728), UHD/16:9 (3840 × 2160)
3K Full Frame (3072 × 1620), 2:1 (3072 × 1536), 2.4:1 (3072 × 1296), 16:9 (2880 × 1620), 3:2 (2880 × 1920)
2K Full Frame (2048 × 1080), 2:1 (2048 × 1024), 2.4:1 (2048 × 864), 16:9 (1920 × 1080), 3:2 (1920 × 1280)
APPLE PRORES Apple ProRes 422 HQ up to 2K (2048 × 1080) and up to 60 fps
Apple ProRes 422 up to 2K (2048 × 1080) and up to 60 fps
Apple ProRes 422 LT up to 2K (2048 × 1080) and up to 60 fps
TYPICAL MAX RECORDING TIME
USING RED MINI-MAG 120GB 4
4.5K 2.1:1 (4608 × 2160) at 24 fps and 11:1REDCODE: 57 minutes
4.5K 2.1:1 (4608 × 2160) at 60 fps and 14:1REDCODE: 29 minutes
4.5K 2.4:1 (4608 × 1944) at 120 fps and 15:1REDCODE: 17 minutes
CONSTRUCTION Aluminum Alloy
WEIGHT 3.5 lbs (BRAIN® with Integrated Media Bay and Canon Lens Mount)
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
AUDIO Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Optional 2 additional channels with DSMC2™ expander module, uncompressed, 24-bit 48 kHz
REMOTE CONTROL Integrated REDLINK® WiFi antenna
Ethernet, RS232, and GPI Trigger with DSMC2 expander module
MONITOR OUTPUTS 3G-SDI (HD-SDI) and HDMI® with DSMC2 expander module
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI® only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection.
RED Touch 9.0" LCDRED Touch 7.0" LCDREDTouch 5.0" LCDRED PRO 7" LCDBOMB EVF® (OLED) and BOMB EVF® (LCOS) compatible with DSMC2 LEMO® Adaptor A and LCD/EVF cable.
REDCINE-X PRO®
DELIVERY FORMATS
4K: DPXTIFF, OpenEXR (.RED via RRencode plugin)
2K: DPXTIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime®, JPEG, AVID® AAFMXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
VIDEO EDITING SOFTWARE
COMPATIBILITY 3
Adobe® Premiere® Pro, AVID® Media Composer®,
DaVinci Resolve®, Edius Pro®, Final Cut Pro®, Vegas Pro®

RED DSMC2 4.7" Touch LCD

RED DSMC2 Universal Handle

RED DSMC2 AC Adapter

RED Station Mini Mag USB 3.0 Reader

RED 120GB Mini Mag

Red USB 3.0 SS USB Cable

RED Mini Mag Reader USB Barrel Power Cable

RED Sidewinder Multi-Tool with Case

USB Wall Charger

BlueShape BV090 Battery

BlueShape BV090 Battery

BlueShape CVTR1M Battery Charger

BlueShape CVTR1M Battery Charger

Universal Power Cable

Universal Power Cable

Universal Power Cable

RED EF Body Cap

Wooden Camera Easy Riser Plate for RED

RED DSMC2 Side Handle
