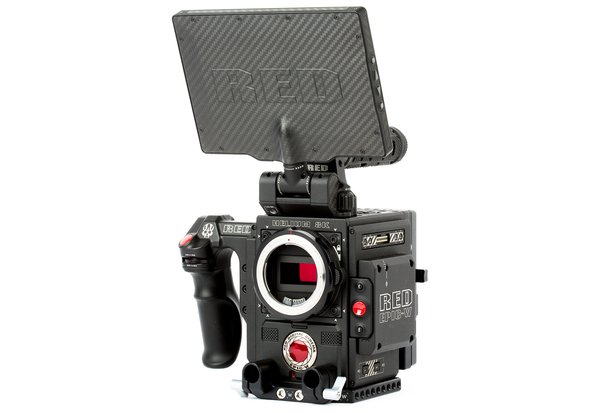

The RED EPIC-W Digital Cinema Camera brings RED's newest HELIUM 8K sensor to an incredibly small body with DSMC2 compatibility. Shooting a Super 35 sensor at 8K resolution gives you incredible options during post to reframe, VFX, motion stabilization and more. The HELIUM 8K sensor has 16.5 glorious stops of dynamic range. REDCODE RAW formats give you tons of editing options as well as recording formats that range from 8K full format at 30 fps, 6K full format at 75 fps, 4K full format at 120 fps, and 2K full format at 240 fps. Just a quick note about changing resolutions; 8K will give you full format S35. Changing the resolution to 4K will crop the sensor by 2x, and 2K will crop the sensor by 4x. This means that a super 35 focal length of 50mm @ 8K will appear like a 100mm at 4K and 200mm at 2K.

We've outfitted our EPIC-Ws with a DSMC2 Base Expander with V-Mount plate, which provides DC IN, HDMI, 3G-SDI, CTRL & SYNC ports for timecode and genlock, 3.5mm mic in, and 3.5mm line-level headphone out. It also allows the whole system to run on V-Mount batteries with 2x P-Tap outs. A DSMC2 RED Touch 7.0" LCD controls everything with a 1920x1136 resolution touchscreen which weighs only 1.1 pounds. A DSMC2 top handle sits on top and gives you a record stop/ start button right at your fingertips. A DSMC2 side handle (the same on our RAVEN and SCARLET-W) provides focus control and iris control on certain EF lenses. Four customizable buttons give you ultimate control over quick camera settings. It even has a "mark frame" feature! A Wooden Camera A-Box provides 2x XLR inputs and plugs into the EPIC-W's 3.5mm line input. Note: The A-Box DOES NOT provide phantom power, you'll still need powered mics like the Rode NTG4+ to use. The A-Box mounts to either a 15mm or 19mm rail (not included.) A Wooden Camera Easy Riser baseplate with 15mm rod raises the rod height on RED cameras, this is crucial for matte box & follow focus fitment on RED bodies. We include 1x 512GB RED MINI-MAG SSD, but you might want more, it will only last about 27 minutes at 8K resolution! Rent additional Mini- Mags here. The included RED Mini-Mag reader is powered solely by 1x USB 3.1 cable which also supports data transfer. We include 2x Anton Bauer CINE V-Mount batteries, each last about 75 minutes. You can rent additional batteries here. We include a RED Sidewinder multi-tool to make set up a snap.
The EPIC-W will come with your choice of either PL or EF mount. You'll see the option of which to choose at checkout.

SENSOR

SENSOR TYPE HELIUM 35.4 Megapixel CMOS
EFFECTIVE PIXELS 8192 x 4320
SENSOR SIZE 29.90 mm x 15.77 mm (Diagonal: 33.80 mm)
DYNAMIC RANGE 16.5+ stops
SIGNAL-TO-NOISE-RATIO 80 dB



RECORDING

MAX DATA RATES Up to 275 MB/s using RED MINI-MAG (512GB & 1TB)
Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)
REDCODE RAW MAX FRAME RATES  1 30 fps at 8K Full Format (8192 x 4320), 30 fps at 8K 2.4:1 (8192 x 3456)
30 fps at 7K Full Format (7168 x 3780), 40 fps at 7K 2.4:1 (7168 x 3024)
75 fps at 6K Full Format (6144 x 3240), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES
(PROJECT TIMEBASE)
23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions
REDCODE SETTINGS
RANGE FROM 2:1 UP TO 22:1  1
6:1 REDCODE for 8K Full Format (8192 x 4320) at 24 fps
7:1 REDCODE for 8K Full Format (8192 x 4320) at 30 fps
2:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
4:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps
REDCODE RAW
ACQUISITION FORMATS  2
8K Full Format (8192 x 4320), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
7K Full Format (7168 x 3780), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
6K Full Format (6144 x 3240), 2:1, 2.4:1, 16:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
APPLE PRORES 422 HQ, 422 and 422 LT at 4K (4096 × 2160) up to 29.97 fps
4444 XQ and 4444 at 2K (2048 × 1080) up to 120 fps
422 HQ, 422 and 422 LT at 2K (2048 × 1080) up to 120 fps
AVID CODECS  3 DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps



GENERAL

CONSTRUCTION Magnesium and Aluminum Alloy
WEIGHT 3.35 lbs (BRAIN with Integrated Media Bay)
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
RELATIVE HUMIDITY 0% to 85% non-condensing



FEATURES

COLOR MANAGEMENT Supports 33×33×33, 32×32×32, 26×26×26, and 17×17×17 3D LUTs
Variable number of 3D LUT outputs with DSMC2 expander module
User programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing
AUDIO Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz
REMOTE CONTROL Integrated REDLINK WiFi antenna
Ethernet, RS232, and GPI Trigger with DSMC2 expander module
MONITOR OUTPUTS 3G-SDI (HD-SDI) and HDMI with DSMC2 expander module
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI Only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection.
RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LEMO Adaptor A and LCD/EVF cable.



SOFTWARE

REDCINE-X PRO
DELIVERY FORMATS
4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
VIDEO EDITING SOFTWARE
COMPATIBILITY  4
Adobe Premiere Pro, Avid Media Composer
DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro

RED DSMC2 Touch 7.0" Carbon Fiber LCD

RED DSMC2 Top Handle

RED DSMC2 AC Adapter

RED Station Mini Mag USB 3.1 Reader

Red 512GB Mini Mag

RED USB-C 3.0 Cable

RED Sidewinder Multi-Tool with Case

Anton Bauer CINE 90 V-Mount Battery

Anton Bauer CINE 90 V-Mount Battery

Anton Bauer LP2 Dual V-Mount Battery Charger

Universal Power Cable

Universal Power Cable

Wooden Camera A-Box

Wooden Camera A-Box Mount Kit

RED DSMC2 Side Handle
