RED DSMC2 REDVOLT Expander

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$236.00

Shipping
Included*

*up to 2nd day air - overnight available

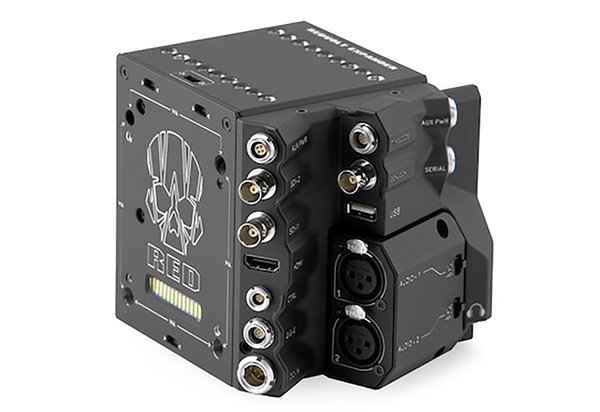

The RED DSMC2 REDVOLT Expander allows users to power a RED DSMC2 brain with REDvolt batteries and also adds two phantom powered XLR ports, two SDI ports, an HDMI port, and tons more. Key features include:

  • Two 3G-SDI & one HDMI video outputs

  • LEMO ports for power in/out, ethernet, timecode, & RS-232

  • Two phantom powered XLR audio inputs

  • One REDvolt battery slot

REDvolt Battery Powered. The RED DSMC2 REDVOLT Expander gives you new options for powering a RED DSMC2 camera brain and accessories. Use RED’s REDvolt batteries as a short term power solution or to simply save time when swapping between batteries. The expander holds one battery.

Inputs. For projects needing professional audio recorded in-camera, this expander gives users two 24-bit/48 kHz XLR ports with optional 48V phantom power. Also available is BNC input for genlock, and the standard RED 6-pin LEMO DC power port.

Outputs. Video can be sent out via two 3G-SDI or one HDMI port, and audio can be monitored with the 3.5mm (1/8") headphone port. 5 volts of USB power are available as well as auxillary power from a 2-pin LEMO port. There are many more options for I/O with a 9-pin LEMO for gigabit ethernet, 4-pin LEMO for RS-232 I/O, 5-pin LEMO for timecode I/O, 4-pin LEMO power/trigger/tally I/O, and 7-pin LEMO power/trigger I/O.

Brand

RED

Inputs/Outputs

Audio Inputs

  • 2 x XLR, balanced audio
Audio Output
  • 3.5mm (1/4"), stereo headphone
Video Out
  • HDMI Type A, v1.2
  • 2 x BNC 3G-SDI
Additional Inputs/Outputs
  • 6-pin 1B LEMO, DC power
  • USB Type A, 5 VDC, 1.5 A power
  • 2-pin 0B LEMO, 3.0 A aux power
  • 13-pin pogo, power delivery
  • BNC, genlock
  • 13-pin pogo, power delivery
  • 9-pin 0B LEMO, gigabit Ethernet
  • 4-pin 00B LEMO, RS-232 I/O, tally output
  • 5-pin 0B LEMO, timecode I/O
  • 4-pin 0B LEMO, power output, trigger input, tally output
  • 7-pin 0B LEMO, RS-232, 1.5 A power output, trigger input
  • 4×40 pin, DSMC2 BRAIN connection



Item Type

Power

Power Compatibility

RED

Power Type

Other
