Flanders Scientific BM210 Production Monitor
becomes available?

Want to add more than this item? Head to our waitlist builder

×

Flanders Scientific BM210 Production Monitor

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$335.00

Free

Shipping Included*

*up to 2nd day air - overnight available

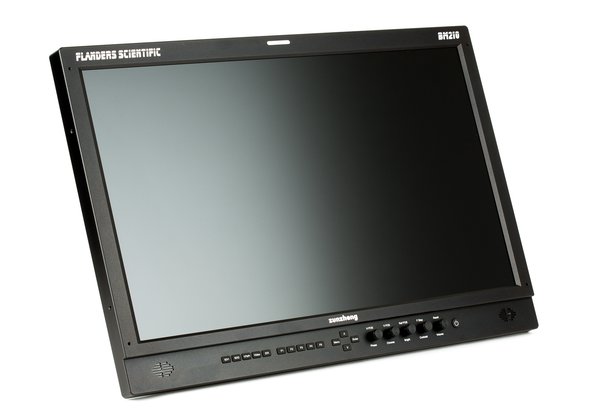

The Flanders Scientific BM210 Production Monitor has Greg, our youtube dude ooohing and ahhhing all over the place. Here is a quote from Greg, "It looks awesome." He loves the beautiful 21.5" 1920x1080 8-bit panel and all its 16 different 3D DIT LUT holding ability. He also enjoys the ridiculous amount of hardware video scopes that the Flanders has, and that you can display 2 at a time in any of 6 different positions. I don't even think he realizes you can display up to 16 channels of audio horizontally or vertically. This thing gives you all the crazy markers, crosshatches, and custom graticules you can shake a C-stand at. Speaking of C-stands, we include a C-stand mount to attach this monitor directly in its case. But wait, there's more! The carrying case, which also has convenient pockets for storing cables, also doubles as a monitor hood! Greg said he loves the live side by side monitoring. I think his favorite feature though, is the Lum coloring. This gives you an adjustable false color display of luminance value. You can adjust the IRE values to create your own clipping to get consistent exposure between shots. We include a V-mount plate with 4-pin XLR cable, AC power cable, USB to RJ45 Cable to get your LUTs on the monitor, and your choice of 1x 3ft SDI, 10ft SDI, or 25ft SDI cable at checkout. Until Greg gets his act together and shoots a video on this monitor, this demo from FSI will have to suffice:

Technical Specifications

Panel Specifications
Screen Size 21.5"
Resolution 1920x1080
Bit Depth (Color) 8bit (16.7 Million Colors)
Contrast Ratio 1000:1
Max Native Color Gamut
Backlight White LED
Pixel Efficiency 99.999%
Max Luminance 250nit
Viewing Angle 178°
Inputs
1 x DVI-I DVI-I (Analog/Digital)
2 x BNC 3Gbps/Dual Link/HD/SD-SDI
1 x BNC Composite
3 x BNC Component (YPbPr/RGB)
Outputs
2 x BNC 3Gbps/Dual Link/HD/SD-SDI
1 x BNC Composite
3 x BNC Component (YPbPr/RGB)
Supported SDI Formats
ITU-R BT.656 (PAL) 576i (50)
SMPTE-125M 480i (59.94)
SMPTE-274M

1080i (60/59.94/50)
1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
SMPTE-296M 720p (60/59.94/50/30/29/25/24/23.98)
2K 2048x1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
SMPTE-372M

1080p (50/59.94/60) 4:2:2 YCbCr, RGB
 1080i (29.97/25/24/23.98) 4:4:4 YCbCr, RGB
1080p (30/29.97/25/24/23.98) 4:4:4 YCbCr, RGB
720p (60/59.94/50) 4:4:4 YCbCr, RGB
SMPTE-425M-AB
- Level A & Level B supported
- Level B supports 2 x SMPTE
292M image format mapping
372M image format mapping
- RGB, YCbCr, & XYZ supported
12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
12 & 10bit 2k (2048x1080) (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
*XYZ mapped to Selected Color Gamut on Color Management Menu
Supported DVI-I Formats
DVI-Analog & DVI-Digital VGA (640x480), NTSC (720x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024)
DVI Digital Only 1280x720, 1440x900, 1920x1080
Audio
Audio Disembedding Yes
Audio Level Meters Yes
Internal Speakers 2
Audio In (Mini-Jack) 1
Audio Out (Mini-Jack) 1
Features
Rack Mount Kit Optional
Desktop Stand Standard
External Mounting Points 100mm VESA
VESA to Light Stand Mount Optional
Carrying Case with Integrated Hood FSI Solutions CH23
Clear Protective Cover Optional
On-Screen Scopes Yes
Measurement Function Yes
Timecode Display (SD/HD-SDI) LTC, VITC 1, VITC 2
Color Fidelity Engine Yes
1:1 Pixel Mapping Yes
Blue Only & Mono Mode Yes
Side by Side Monitoring Yes
3D LUT Color Space Selection SMPTE C/EBU/REC709/REC2020 Emulation/DCI P3 Emulation/USER
Color Temperature Select 3200K, 5000K, 5600K, 6500K, 9300K
Gamma Selection 1.0 / 1.8 / 2.0 / 2.2 / 2.35 / 2.4 / 2.6 / 2.8
Power
AC Input IEC / C14
DC Input 4 PIN XLR
Battery Plate Optional
Power Requirement 100~240 VAC / 12 VDC
DC Power Consumption (Appx.) 28 Watts
Physical Characteristics
Weight (without stand) 9 lbs (4.1 kg)
Weight with Basic Desktop Stand 11.2 lbs (5.1 kg)
Weight in Carrying Bag with Hood 17.8 lbs (8.1 kg)
Chassis Aluminum Frame

Flanders Scientific Case with Integrated Hood

Flanders Scientific 4-Pin XLR to D-Tap Cable

Flanders Scientific USB to RJ45 Cable

Universal Power Cable
