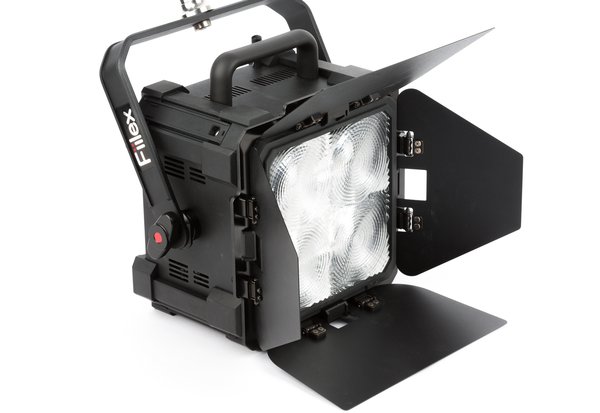

Fiilex Matrix LED Light kit

Gear Arrives On
Ships Back On
? ? ?
? ? ?

4 Day Rental Price:



Shipping Included*

*up to 2nd day air - overnight available

Our Fiilex Matrix kit provides 1500W of tungsten equivalent light. Thanks to the LED tech inside, the Matrix is flicker free, water resistant and fully dimmable. A built in softbox mount means there is no need for a speed ring. Both WiFi and DMX control mean you don’t need to be behind your light to manage it. Color temperature control from 2800K to 6500K with a CRI of >93 means the Matrix provides professional quality light. The inclusion of hue control means, no matter the situation, you’ll be prepared to light it. All of this for the draw of 340W.



  • 1500W Tungsten Output Equivalent, 320W Power Draw
  • Built-In Softbox Mount (Speed Ring Not Required)
  • Full Dimming
  • Tunable CCT (2800 - 6500K)
  • Fully Dimmable
  • IP-24 Rating (Water-Resistant)
  • High CRI (>93) at any Color Temperature
  • WiFi Control
  • Multiple Dense Matrix LED Light Sources
  • LCD Display
  • Flicker Free at any Frame Rate
  • Broadband Full Spectrum LED Source
  • DMX (512 channels)
  • Generates Minimal Heat
  • Custom Travel Case Available
  • Does Not Emit UV Light / Radiation
  • Designed in USA, Assembled in Taiwan


Size L 6.7″ x W 11.6″ x H 16.5″ (with Yoke)
171mm X 294mm x 418mm (with Yoke)
L 6.7″x W 8.7″ x H 8.7″ (without Yoke)
171mm X 220mm x 220mm (without Yoke)
Weight (Include Yoke) 9.5 lbs / 4.3kg
Ballast Weight 5.1 lbs / 2.3kg
IP Rating IP Rating of 24 (Water-Resistant)
LED 4x Dense Matrix LED
Thermal Design Advanced Vapor Cooling System
Beam Angle 110°
33° with M1 Fresnel Lens (Not Included)
CCT Range 2800-6500K Continuous Tuning
Hue Control ±.25 Magenta/Green
CRI >93
LED Life 42,000 hrs - (15 Years of Average Use)
Power Consumption 320W Max AC / 300W Max DC / Comparable in Output to 1500W Tungsten
Input Voltage AC Power: 100-240 VAC, 50~60Hz, Max 340W AC
DC Power 45-54V, Max 300W
Input Port Detachable Power Con Cable
DMX Control 2 XLR ports(512 Addresses)
Temperature Range 32-104ºF / 0-40º C (Over Temperature Protection)
Mount Style Junior Pin Receiver - 5/8th Inch (C-Stand, [other mounts available])
Barndoor Mount Size Size IV

Fiilex M1 Photometric figure

Fiilex M1 Photometric figure

Fiilex Matrix Power Adapter

Fiilex Matrix Power Cable

Fiilex Matrix Fresnel Lens

Fiilex Matrix Barn Door

Super Clamp
