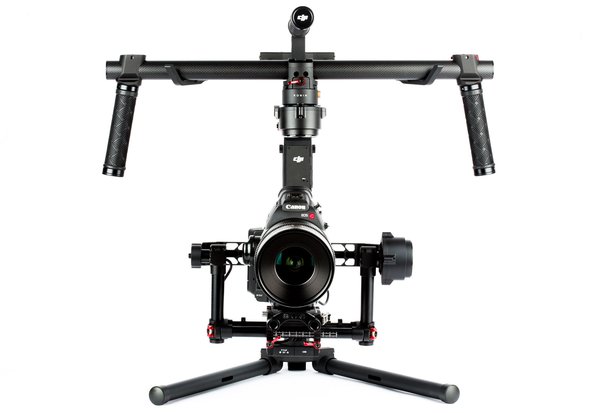

DJI Ronin Gimbal w/ Extended Arms

Gear Arrives On
Ships Back On
? ? ?
? ? ?

4 Day Rental Price:



Shipping Included*

*up to 2nd day air - overnight available

This version of the DJI Ronin features extended arms designed to accommodate heavier or longer cameras like Sony FS series or BlackMagic URSA Mini (with a small battery and small lens.)

The DJI Ronin Gimbal is an amazing, relatively inexpensive (if a bit heavy) alternative to FreeFly's Movi gimbals. The Ronin can support camera and lens systems up to 16 pounds, this means it can support full rigs like Canon's Cinema EOS bodiesSony FS Series (WITHOUT Raw Extension Unit,) BlackMagic Cameras, and DSLRs. The Ronin includes a remote control for two operators, allowing one to carry the rig and another to control panning and tilting. Just like any gimbal, set up is key; you really have to take your time and balance your rig properly so the gimbal has less work to do. The included "smart" battery can last up to 4 hours with light use, but plan on about 2 hours of shooting under heavy loads and lots of movement.

The DJI Ronin connects to iOS devices using the DJI Assistant app, available for free here. You can also use a Windows PC with free software here.

Please see the Ronin instruction manual here. After you've read the manual, check out some helpful videos here.

Supported Camera Dimensions



Built-In Functions
  1. Three Operation Modes
    · Underslung Mode
    · Upright Mode
    · Briefcase Mode
  2. Built-in independent IMU module
  3. DJI Specialized Gimbal Drive Motors with Encoders
  4. Bluetooth Module
  5. USB Connection
  6. 2.4GHz Receiver
  7. Temperature Sensor
  8. DJI Advanced 32-Bit DSP Processor
  9. D-Bus Supported


Accessory Power Connections
12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power
4S Ronin Battery
2.4GHz Remote Control, Bluetooth, USB
PC Assistant Software Requirements
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mobile Assistant Software Requirements
iOS version 6.1 or above Mobile Device iPhone 4s, iPhone 5, iPhone 5s, iPod touch 5 , iPad 3, iPad 4, iPad mini

Mechanical & Electrical Characteristics

Working Current
Static current: 300mA (@16V)

Dynamic current: 600mA (@16V)

Locked motor current: Max 10A (@16V)
Operating Temperature
-15°C ~ 50°C (5°F ~ 120°F)
4.20kg (9.26lbs) fully loaded with handlebar
Gimbal Dimensions
620mm(W) x 280-380mm (D)x 500mm(H)
Supported Camera Dimensions
Maximum depth at center of mass on camera base plate: 140mm

Maximum height measured from top of camera base plate: 225mm

Maximum width: 195mm

Working Performance

Load Weight (Reference Value)
7.25kg (16lbs)
Controlled Angle Accuracy
Maximum Controlled Rotation Speed
Pan axis: 90°/sec

Tilt axis: 100°/sec

Roll axis: 30° /sec
Controlled Rotation Range
Pan axis control: 360°
Tilt axis control: Up 45° to Down 120°
Roll axis control: ± 25°

DJI Ronin & Ronin-M Battery

DJI Ronin & Ronin-M Battery Charger

Round-Edge Power Cable

DJI Ronin Stand

DJI Ronin Remote Control

DJI Ronin & Ronin-M 6x Camera Screws

DJI Ronin Camera Plate

DJI Ronin 2x Rails w/ Extensions

DJI Ronin QR Accessory Bracket

DJI Ronin QR Accessory Bracket

DJI Ronin 3mm, 4mm, & 3/16" Drivers

DJI Ronin & Ronin-M Lens Support w/ Screw

Cable - USB 2.0 A Male to Micro B
