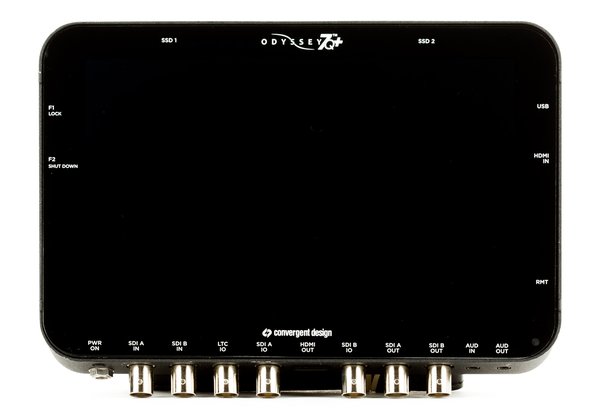

Convergent Design’s Odyssey7Q+ Monitor and Recorder retains all of the features that made their Odyssey7Q successful, and adds support for 4K HDMI video sources! Key features include:
Raw bundle upgrade
DCI and UHD 4K Recording over HDMI or SDI
7.7-inch, 1280 × 800 OLED monitor with 3400:1 contrast
3G/6G-SDI inputs; 3G-SDI outputs
High Frame Rate and RAW. This version of the Odyssey7Q+ includes the RAW bundle upgrade, allowing RAW recording with popular cameras like the Varicam LT, Sony FS7M2, and Canon C300 Mark II. The Odyssey7Q+ can continuously capture 4K RAW footage at up to 60 fps or 2K RAW footage at up to 240 fps with compatible camera models.
High-Quality Monitoring. The Odyssey7Q+ features a 7.7-inch, 1280 × 800 LCD with a 3400:1 contrast ratio. It also has many advanced image-analysis tools, including Vectorscope, Waveform, RGB Parade, and extensive LUTsupport.
Super High-Quality Recording. Don’t like that crummy old 4:2:0 file? No problem! This recorder captures video in compressed (4:2:2), lossless (4:4:4:4), or uncompressed Cinema DNG (4:4:4) formats.
Battery/AC Powered. This rental includes a Sony battery plate that allows the unit to be battery powered with the included batteries. This rental also includes an AC adapter for powering the unit via wall outlet.
Multiple SSDs Required. This rental doesn’t include any SSDs and they fill up quickly. Please note, this recorder requires specific SSDs and most RAW and HFR shooting modes require you to use two SSDs simultaneously.
What type of connector does the Odyssey7Q+’s HDMI input take?
This recorder’s HDMI input uses a mini connector (type C). If you need an full-size HDMI male (type A) to mini-HDMI male (type C) cable, you can find them here (See ones labeled Male-Mini).
Does this rental include HDMI or SDI cables?
This rental doesn’t include any HDMI or SDI cables. However, here are links to our available HDMI Cables & SDI Cables. If you’re unsure about which cord is right for your application, please contact us for verification.
Does this rental include an SSD?
This rental doesn’t include any SSDs.
The Odyssey 7Q requires Convergent-Design brand SSDs, which you can find here. This monitor isn’t compatible with standard, off-the-shelf 2.5-inch SSDs.
|Display||7.7" OLED (19.5 cm)
1280 x 800 resolution
3400:1 contrast ratio
RGB 8-bit color depth
176° viewing angle
|Video I/O||2 x 3G/HD/SD-SDI inputs (BNC)
2 x 3G/HD/SD-SDI outputs (BNC)
2 x 3G/HD/SD-SDI bi-directional (BNC), assignable as inputs or outputs via menu
1 x HDMI mini input, Version 1.4b, 8-bit (supports up to 1080p60 4:2:2, up to 30 fps in UHD 3840x2160, and up to 24 fps in DCI 4K 4096x2160)
1 x HDMI mini output, Version 1.4a, 8-bit (supports up to 1080p30 4:2:2)
|SDI Formats Supported||Single Link, Dual Link, Quad Link|
|Recording Formats||Compressed Formats:
4K/UHD 10-bit YCC 4:2:2 up to 30fps in Apple ProRes 422 HQ, 422, 422 LT
2K/1080p 12-bit RGB 4:4:4: up to 30fps in Apple ProRes 4444 Regular and XQ
2K/1080p 12-bit RGB 4:4:4: up to 60fps with Canon C500 in Apple ProRes 4444 Regular and XQ
2K/1080p 10-bit YCC 4:2:2 up to 60 fps in Apple ProRes 422 HQ, 422, 422 LT
1080i 10-bit YCC 4:2:2 up to 60 fps in Apple ProRes 422 HQ, 422, 422 LT
720p 10-bit YCC 4:2:2 up to 60 fps in Apple ProRes 422 HQ, 422, 422 LT
2K/1080p RGB 10/12-bit 4:4:4 up to 30 fps in DPX file format
1080p RGB 10-bit 4:4:4 up to 60 fps in DPX file format
|Digital Audio I/O||2-channel SDI or HDMI embedded audio (48 kHz, 24-bit)|
|Analog Audio I/O||1 x 3.5 mm input (line level, 2-channel unbalanced or 1-channel balanced input up to -10 dB, 48 kHz, 24-bit)
1 x 3.5 mm headphone output
|Recording Media Support||2 x 2.5" SSD slots (Requires Convergent Design Premium 2.5" SSDs or approved third party SSDs)|
|Timecode||LTC I/O (BNC) or embedded via SDI/HDMI|
|Firmware Updates||Via USB port to host computer|
|DC Power Input||6.5 to 34 VDC with built-in reverse polarity protection; locking power connector; built-in power switch|
|Power Draw||8 W (monitor only), 9 to 15 W (monitor and record mode)|
|Operating Temperature||14 to 104°F (-10 to 40°C)|
|Storage Temperature||-4 to 128°F (-20 to 70°C)|
|Dimensions||Measured from end of BNC to SSD tabs:
7.9 x 6.1 x 1.0" (20.0 x 15.5 x 2.5 cm)
1.2 lb (0.56 kg)
