Convergent Design Odyssey 7Q Kit with Canon C500 Raw option

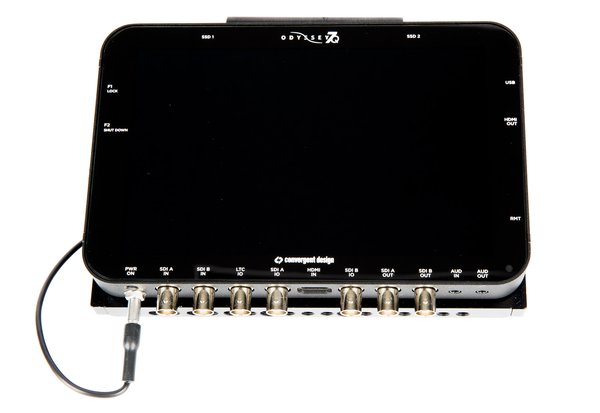

Convergent Design Odyssey 7Q is a professional 7.7" OLED monitor that features high end functions like Zebras, Waveform, Histogram, Vectorscope, Focus Assist, False Color, RGB Parade, Timecode display, Audio levels and it also doubles as a 4K RECORDER capable of recording 4K Raw video from Canon C500, 2K Raw from Sony FS700R and ArriRaw. This unit is no bigger than a typical professional 7" monitor, in fact it has a smaller footprint and is lighter than most of the pro monitors in the 7" category. An externar recorder such as Odyssey 7Q is required to take advantage of the Canon's amazing 4K sensor in C500.

This kit includes:

  • Odyssey 7Q
  • Nebtek Power Cage with dual slots for Sony L series batteries
  • 2x Sony L series batteries
  • 2x 512Gb SSD's
  • Articulating mounting arm
  • Dual battery charger for Sony batteries
  • Canon C500 4K Raw option installed
  • USB 3.0 to SATA Adapter for footage transfer
  • 2x HDSDI Cables


Display 7.7" OLED (19.5 cm)
1280 x 800 resolution
3400:1 contrast ratio, true blacks
RGB 8-bit color depth
176° viewing angle
Video Connections 2x 3G/HD/SD-SDI, single/dual link inputs
2x 3G/HD/SD-SDI, single/dual link outputs
2x 3G/HD/SD-SDI, single/dual link assignable as inputs or outputs via menu

1x HDMI 1.4a input
1x HDMI 1.4a output
Video Formats SDI:
For recorder options --
HD/2K RGB 444 8/10/12-bit up to 60p/60psf
HD/2K YCC 422 8/10-bit up to 120p, QHD/4K 422 up to 30fps
ARRIRAW (16:9) 12-bit up to 60fps, ARRIRAW (4:3) 12-bit up to 48fps
Canon RAW QHD/4K 10-bit up to 60fps

For included DNxHD codec --
720p to 1080p60/50 and 1080i60/50 4:2:2, 36Mbps 8-bit, 145Mbps 8-bit, 220Mbps 8-bit, 220Mbps 10-bit

Up to 1080p60 4:2:2 8-bit
Digital Audio 8-channel embedded audio (48 kHz, 24-bit)
Analog Audio Mono speaker
3.5 mm headphone output
Mono unbalanced consumer input
LUT Support ARRI, Canon, Sony
Recording Media Support Odyssey7Q requires Convergent Design 2.5" SSDs for optional recording
Remote Control RS-232 I/O, programmable GPIO
Timecode LTC I/O (BNC) or embedded SDI/HDMI TC
Wireless Control Bluetooth LE with iPhone / Android app
User Interface Capacitive touchscreen, two mechanical function keys
Material Cast-magnesium case
Firmware Updates Via USB port to host computer
Power Input 10 to 34 VDC with built-in reverse polarity protection; built-in power switch
Power Dissipation 8 W (monitor only), 8-15 W (monitor and record mode)
Operating Temperature 14 to 104°F (-10 to 40°C)
Storage Temperature -4 to 128°F (-20 to 70°C)
Dimensions Measured from end of BNC to SSD tabs:
7.9 x 6.1 x 1" (20 x 15.5 x 2.5 cm)
Weight 1.2 lb (.54 kg)
