BlackMagic URSA Mini Pro 4.6K Digital Cinema Camera EF Mount
becomes available?

Want to add more than this item? Head to our waitlist builder

×

BlackMagic URSA Mini Pro 4.6K Digital Cinema Camera EF Mount

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$366.00

Free

Shipping Included*

*up to 2nd day air - overnight available

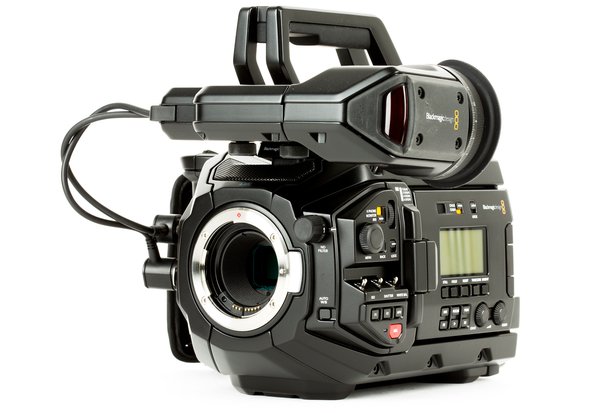

The BlackMagic URSA Mini Pro 4.6K Digital Cinema Camera is now here! The new hotness features several welcomed advantages over the original URSA Mini. The body of the URSA Mini Pro no has MOAR BUTTONS! Lots of external buttons control many settings such as exposure, slow motion, focus assist, etc. This means you don't have to dig through the menus anymore to operate basic functions. Neutral Density filters are finally built in!!! Dial in 2, 4, or 6 stops of ND goodness. Two SD Card slots have been added to allow the use of cheaper media when you aren't shooting intense formats requiring lots of bandwidth. An external LCD screen now displays timecode, frame rate, shutter angle, aperture, white balance, ISO, and iris. The other big feature is an interchangeable lens mount; you can now choose between EF or PL Mount for the same body! The bad news is that the PL mounts won't be available until "Summer 2017" but we will update this listing with a lens mount choice as soon as we have the PL Mounts.

This machine weighs a svelte 7 pounds, less than half what the original URSA weighed (16.5 lbs.!!!) The Mini Pro features the same 4.6K sensor with 15 stops of dynamic range as the previous Mini. The Mini Pro can record UHD (3840x2160) in ProRes 444 XQ at 312.5 MB/s all the way down to 1080p in a ProRes 422 Proxy at 5.6 MB/s. It can record uncompressed raw data into CinemaDNG at up to 60p as well as compressed raw at 3:1 and 4:1. It can also record slow motion footage up to 120p at 1080p. This thing has so many recording options it will make you dizzy. Good thing it has dual CFast 2.0 memory card slots! A fold out 4 inch 1920x1080 touchscreen monitor allows you to change all camera settings right from the touch screen. Tons of connections are here, giving you 12G-SDI out, HD-SDI monitoring out, 2 LANC inputs, balanced XLR with switchable phantom power, timecode in, and reference input. We include the V-mount plate and a V-mount battery and the BlackMagic included 4-pin XLR AC power adapter.

Please read the User's Manual here

Sensor
Size 25.34 x 14.25 mm (Super-35)
Lens Mount Active Canon EF (interchangeable)
Effective Resolution 4608 x 2592
Dynamic Range 15 stops
Shooting Resolutions 4608 x 2592
4608 x 1920 (4.6K 2.4:1)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K DCI)
3840 x 2160 (Ultra HD)
3072 x 2560 (3K Anamorphic)
2048 x 1152 (2K 16:9)
2048 x 1080 (2K DCI)
1920 x 1080
Frame Rates 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps



Display
Dimensions 4" diagonal
Screen Type LCD capacitive touchscreen
Resolution Not specified by manufacturer



Recording
Media Card Slots 2 x CFast 2.0
2 x SD UHS-II
Recording Formats CinemaDNG Raw (Uncompressed or Lossless 3:1/4:1 Compressed):
4608 x 2592
4096 x 2304
4608 x 1920
3072 x 2560
2048 x 1152

Apple ProRes:
4608 x 2592
4608 x 1920
4096 x 2304
4096 x 2160
3072 x 2560
2048 x 1152
2048 x 1080
1920 x 1080
Data Rates 4608 x 2592:
Uncompressed CinemaDNG Raw - 513MB/s
CinemaDNG Raw 3:1 - 180 MB/s
CinemaDNG Raw 4:1 - 135 MB/s

3840 x 2160:
Apple ProRes 444 XQ - 312.5 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s

1920 x 1080:
Apple ProRes 444 XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s

Rates based on 30 frames per second.
Metadata Support Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses.

Automatic recording of camera settings and slate data such as project, scene number, take and special notes.



Connections
Input 1 x BNC, HD/3G/6G/12G-SDI
Output 2 x BNC, HD/3G/6G/12G-SDI (clean output and monitor output)
Reference Tri-Sync/Black Burst/Timecode
Analog Audio Inputs 2 x XLR (mic/line/AES, phantom power output)
Audio Output 1 x 3.5mm headphone (TRRS connection supports in-line microphone)
Remote Control 2 x 2.5mm LANC (controls record start/stop, electronic iris, and electronic focus)
USB 1 x USB Type C for software updates
Supported Standards SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1

SDI Audio Sampling: 48 kHz and 24-bit



General
Microphone 2 x Built-in cardioid microphones for stereo recording with -10dB pad and low-cut filter
Speaker Integrated mono (enabled in playback when headphones are not used)
System Requirements Mac OS X 10.11 or newer
Windows 8.1 or newer
Power Connectors Inputs:
1 x 4-pin XLR input for external power supply or battery
1 x 12-pin molex connector on rear battery plate

Outputs:
1 x 12V output using 4-pin XLR for powering external accessories such as EVF
1 x 12V regulated output from rear molex 12-way connector
Battery Plate Support Mounting holes for V-mount and Gold mount battery plates
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Humidity 0 to 90% RH, non-condensing
Dimensions 8.2 x 8 x 5.8" / 21 x 20.1 x 14.7 cm
Weight 5.1 lb / 2.3 kg

BlueShape BV090 Battery

BlueShape CVTR1M Battery Charger

BlackMagic URSA Mini Grip

BlackMagic Viewfinder

BlackMagic Viewfinder Mounting Screw

BlackMagic Shoulder Plate with 2x Screws

BlackMagic Grip Relocator Arm

BlackMagic Grip Relocator Cable

BlackMagic 4-Pin XLR AC Adapter

Universal Power Cable

Universal Power Cable

Canon Body Cap
