Blackmagic Design HyperDeck Studio 12G

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$122.00

Shipping
Included*

*up to 2nd day air - overnight available

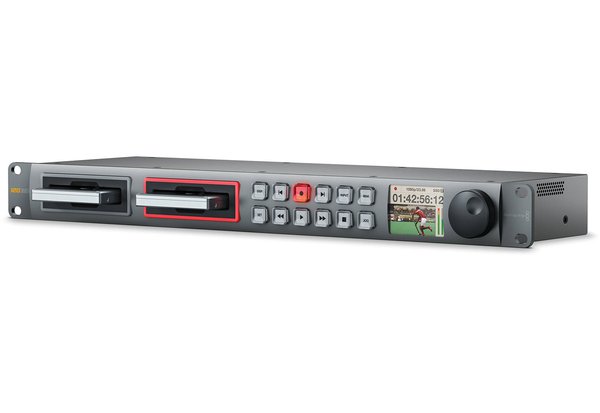

The Blackmagic Design HyperDeck Studio 12G is an external capture and play back device for BMD ATEM switchers that allows for recording up to UHD 4K/60p. Key features include:

  • 1RU video recorder for capture and playback

  • Records uncompressed 10-bit, ProRes, or DNx to SSDs at up to UHD 4K/60p

  • On-board display and illuminated controls

  • Does not communicate with computers or other Blackmagic devices

Pro-Grade Recording Up To UHD 4K/60p. The Blackmagic Design HyperDeck Studio 12G records uncompressed Quicktime video at 10-bit with 4:2:2 color sampling. It also records to ProRes 422, ProRes 422 (HQ), ProRes 422 (LT), ProRes 422 (Proxy), Avid DNxHD, and Avid DNxHD MXF. This 12G version of the Hyperdeck can do it at frame rates up to UHD 4K/60p

Dual SSD Slots. This recorder’s two 2.5-inch SSD slots give you the potential to record almost endlessly, since recording seamlessly switches to the second SSD once the first one fills up.

Output Options. Regardless of the original input, playback from SSDs is available from all outputs simultaneously. An SDI output, SDI loop through, SDI monitor out, and HDMI output will be your options for interface.

Intuitive Controls. You get VTR-style front-panel record and playback controls. The built-in jog wheel gives you analog-style control over playback. The buttons are illuminated, so you can easily work in low light.

Q & A

  • How is this rack mount device cased?
    • This HyperDeck will arrive in a 2U rack mount case. If you are ordering multiple units, feel free to consolidate them into a single case upon arrival.

  • How many HyperDecks can be connected to a single ATEM?
    • You can connect up to four HyperDecks to any ATEM running firmware version 6.8 or newer.

  • Will I need anything else?
    • This rental does not include SSDscables, or an ATEM switcher.

    • When used with an ATEM switcher, you will need some form of ethernet hub (not included). If you have any questions about using the HyperDeck with you existing network contact us and a tech will be happy to help you determine if this is the right gear for you.

  • Resources

  • ATEM Software
  • ATEM Manual
  • Audio Inputs

    Analog
    None

    Digital
    SDI
    16x channels embedded in QuickTime files
    2x channels in Avid DNxHD MXF files

    HDMI
    8x channels embedded in QuickTime files
    2x channels in Avid DNxHD MXF files

    Audio Outputs

    Analog
    None

    Digital
    SDI
    16x channels embedded in QuickTime files
    2x channels in Avid DNxHD MXF files

    HDMI
    8x channels embedded in QuickTime files
    2x channels in Avid DNxHD MXF files

    Brand

    Blackmagic

    Codec / Format Support

    Uncompressed QuickTime
    Apple ProRes 422 (HQ) QuickTime
    ProRes 422 QuickTime
    ProRes 422 (LT) QuickTime
    ProRes 422 (Proxy) QuickTime
    Avid DNxHD QuickTime
    Avid DNxHD MXF

    Color Precision

    10-bit

    Color Space

    REC 601, REC 709, REC 2020 (playback only)

    Computer Interface

    1x USB 2.0 mini B-type for initial setup, software updates and HyperDeck Utility software control

    Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

    Device Control

    Sony compatible RS-422 deck control port

    Display

    Built-in LCD for video, audio and timecode monitoring

    Formats

    SD
    525i59.94 NTSC, 625i50 PAL

    HD
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60

    4K
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

    Item Type

    Switcher

    Recorder Control

    12 buttons and jog wheel for local control

    SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B

    SDI Metadata Support

    HD RP188 and closed captioning CEA-708.

    SSD Interface

    2x 2.5" SATA-II or -III

    Sample Rate

    Video: 4:2:2 Audio: 48kHz/24-bit

    Sync Input

    Blackburst or Tri-Sync

    Video Inputs

    Digital Video
    SDI (10-bit SD/HD/3g/6G/12G Ultra HD switchable)
    HDMI 2.0 type A (supports Ultra HD 4K)

    Analog Video
    None

    Video Output

    Digital Video
    SDI Out
    SDI Loop Through
    SDI Monitor Output
    HDMI 2.0 type A (supports Ultra HD 4K)

    Analog Video
    None

    Cable - Monoprice SlimRun Cat6A Ethernet (7-foot / Yellow)

    Cable - USB 2.0 A Male to Mini-B

    Case - SKB 3I-2011 9-inch Fly Rack 2U (H12)

    Case - SKB 9-inch Shock Rack Cage (2U)

    Charger - 3 Prong Universal Power Cord 6ft

    Switcher - Blackmagic HyperDeck Studio 12G
