Atomos Shogun Flame 4K HDMI HDSDI Field Recorder
becomes available?

Want to add more than this item? Head to our waitlist builder

×

Atomos Shogun Flame 4K HDMI HDSDI Field Recorder

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$124.00

Free

Shipping Included*

*up to 2nd day air - overnight available

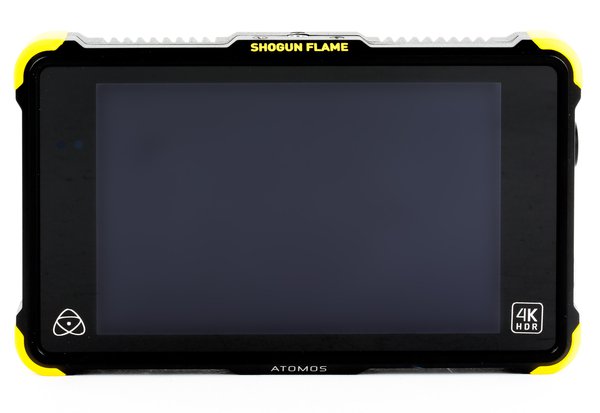

The Shogun Flame is here and it gives you 4K recording from either HDMI or HDSDI sources with a 7" IPS touchscreen. Record 4K Apple ProRes or Cinema DNG Raw over HDMI and 12G-SDI. HDMI to SDI and SDI to HDMI conversion allows you to seamlessly switch between sources all with the same recorder. A gorgeous 7" 1920x1200 320ppi IPS panel gives you a super wide viewing angle, ensuring a proper image for a variety of situations. The new screen on the Flame packs 1500 nits of brightness!!! Your iPhone has a max brightness of 600 nits for reference; this new screen is BRIGHT. The Flame also includes a hood so there is always a way to see the screen, even if you're on the surface of the sun. Standard monitor features such as waveform, focus assist, zebras, and a 2:1 Zoom make sure you get the perfect shot. You can even sync using timecode and genlock to make sure everything stays consistent.

Another big feature that the flame has that the regular Shogun does not is Atomos's new HDR recording mode. The AtomHDR technology is supposed to display 10 stops of dynamic range which is useful if you're recording flat log footage. The Shogun Flame also sports new protective bumpers all around the edges of the body. We happily accept this new change as we have noticed that the old Shogun was quite fragile.

The Shogun Flame uses Atomos's extended batteries, clones of the ever popular Sony L-Series NP-F550/570, but now has 2 hot swappable battery slots! The new battery charger included from Atomos will now charge 1 battery faster than the Shogun Flame can deplete it, even though each battery still lasts only about 45 minutes. This coupled with the 2x hot swappable battery plates means you shouldn't need any extra batteries beyond the 2x included in the kit. Though if you prefer to get your power from a different source, Atomos includes a P-tap connector, so if you already have a P-tap system for you camera, you can plug right in to a Gold Mount or V-Mount Battery.

Solid State Hard Drives are NOT included and can be found here.

If you need a mounting solution, check out our custom Israeli Arms here.

We'll include your choice of one 3ft HDMI or HDSDI cable, you'll see an option at checkout.





We include the following with our Shoguns:

1x Shogun Flame 4K HDMI HDSDI Field Recorder

5x Atomos SSD Caddies w/ Screws

2x Atomos Battery

1x P-Tap Battery Cable

1x Atomos USB 3.0 SSD Reader

2x AC Adapter

1x Battery Charger

1x Hood Assembly

1x Lemo to XLR Breakout Cable

1x Remote Link Splitter Cable



For a list of supported cameras please click here





Weight
Without batteries & media 650g / 22.9oz
With batteries & media 1094g / 38.6oz
Dimensions (W x H x D mm) 214 x 127 x 45mm, 8.4 x 5 x 1.8”
Construction High quality lightweight ABS Polycarbonate for durability & portability
  Built-in armor protection





Power
Operating power 10 - 24W
Compatible batteries NP series and supporting accessories
Input voltage (battery) 6.2V to 16.8V
Battery time (based on 7.4V) -
  5200mAh - up to 1.5hrs (monitor & record 4K)
  7800mAh - up to 2.2hrs (monitor & record 4K)
DC In 1 x DC in (6.2 - 16.8V)
Continuous power
* Patent pending
Primary-secondary battery system Change batteries without losing power Loop batteries continuously





Touchscreen
Size 7.1”
Resolution 1920 x 1200
PPI 325
AtomHDR Yes
Bit depth 10-bit (8+2 FRC)
Brightness 1500nit (+/- 10%)
Aspect ratio 16:9 native
Color Gamut REC709 HDTV
Look up table (LUT) support 3D LUT (.cube le format)
Technology SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional Atomos Spyder





Video input/loop out
HDMI 1 x HDMI (1.4b)
SDI 1 x 4K-SDI 6G or HD-SDI 3G/1.5G (SMPTE)
Signal Uncompressed true 10-bit or 8-bit 422 (camera dependent)





Video output (play out)
HDMI 1 x HDMI (1.4b)
SDI 1 x 4K-SDI 6G or HD-SDI 3G/1.5G (SMPTE)
Signal Uncompressed true 10-bit or 8-bit 422 (playback file dependent)





Supported loop out formats
HDMI to HDMI 720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/120*, 2160p 24/25/30
SDI to SDI 720p 50/60, 1080i 50/60
1080pSF 24/25/30
1080p 24/25/30/50/60/120*, 2160p 24/25/30





Video signal conversion
HDMI to SDI 720p 50/60, 1080i 50/60 1080p 24/25/30/50/60/120, 2160p 24/25/30
SDI to HDMI 720p 50/60, 1080i 50/60 1080p 24/25/30/50/60/120, 2160p 24/25/30





Supported formats (Record & Playback)
4K 2160p 24/25/30
HD - high frame rate** 1080p120*, 1080p60/50
HD** 1080i60, 1080i50, 1080p30, 1080p25, 1080p24, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p50
4K UHD downscale for HD monitoring Yes - loop-out & playback
Anamorphic de-squeeze 2x, 1.5x, 1.33x, Panasonic 8:3





Realtime hardware encoding
4K - DCI RAW 4096x2160 to
Supported cameras;
Sony FS700, FS7
Canon C300MKII, C500
Apple ProRes
HQ, 422, LT
DNxHR
HQX, HQ, SQ, LB
4K-UHD 3840x2160 8/10-bit 4:2:2 to Apple ProRes
HQ, 422, LT
DNxHR
HQX, HQ, SQ, LB
1920x1080 8/10-bit 4:2:2 to Apple ProRes
HQ, 422, LT
DNxHD
220x, 220, 145, 36





Onboard processing
Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)





Audio in/out (48kHz PCM audio)
HDMI 2 or 8ch 24-bit, camera dependent
SDI 12ch 48kHz 24-bit
Audio 2ch balanced XLR analog in/out
Dynamic range >90dB
Max signal level +24dBu
Max analog gain +52dB
48V Phantom Power for Mic





Remote start/stop
HDMI Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open Standard
SDI SDI trigger camera selectable
Other LANC control - Slave





Playback
Playlist Yes
Genlock / LTC Yes / Yes





Playback
Pre-roll record Yes (HD 8s, 4K 2s)
Custom timelapse Yes
Meta data tagging Yes (10 tags available)
Supported media
(Approved List Only)
4K / HD (50/60/120p*)
SSD 2.5”, HDD (7,200 up to 1080p60)

HD
SSD 2.5”, HDD (5,400 up to 1080p30)
Master caddy case Master Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock 2.5” SATA to USB 2.0/3.0
Supported applications Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+
EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
Autodesk Smoke 2015
XML support FCPX XML native, FCP7 supported with conversion (Adobe compatible)
Accessories included Shogun Flame unit, Custom yellow HPRC case, Control cable, XLR breakout cable, 2x NP-F750 5200mAh batteries, Fast battery charger, SATA 3/2 to USB 3/2 HDD/SSD docking station, DC to D-Tap coiled cable, Master Caddy II x 5, 12V-3A AC adapter x 2 (Fast charger & DC power), HDR sunhood

Atomos Extended Life Battery

Atomos Extended Life Battery

Atomos SSD Caddy w/ Screws

Atomos SSD Caddy w/ Screws

Atomos SSD Caddy w/ Screws

Atomos SSD Caddy w/ Screws

Atomos SSD Caddy w/ Screws

Atomos Shogun Flame & Inferno Battery Charger

Atomos Shogun Flame & Inferno AC Adapter

Atomos Shogun Flame & Inferno AC Adapter

Atomos Shogun Flame & Inferno P-Tap Cable

Atomos Shogun Flame & Inferno SSD Reader

Atomos Shogun Flame & Inferno Hood Mount

Atomos Flame & Inferno Hood 2x Mounting Screws

Atomos Shogun Flame & Inferno Hood

Atomos Shogun Flame & Inferno Hood Window

Round-Edge Power Cable

Round-Edge Power Cable

Atomos Lemo XLR Breakout Cable

Atomos Remote Link Splitter Cable
