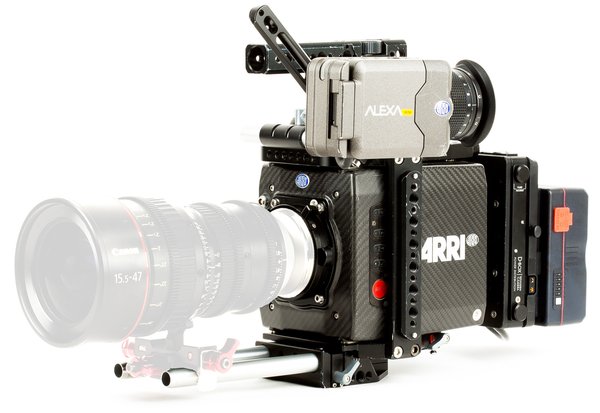

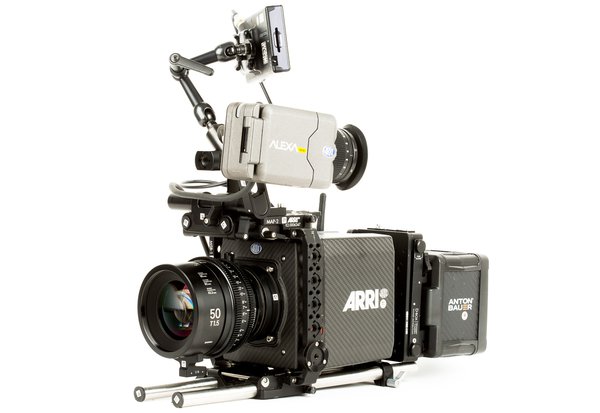

Arri Alexa Mini 4K Digital Cinema Camera PL & EF Mount

Gear Arrives On
Ships Back On
Total
? ? ?
?
? ? ?
?
Days
4

4 Day Rental Price:

$2365.00

Free

Shipping Included*

*up to 2nd day air - overnight available

The Arri Alexa Mini is Arri's newest little brother to their famous full size Alexa Digital Cinema Camera. Designed to be a perfect complement to the full size Alexa, the Alexa Mini certainly punches above it's weight. Arri's famous build quality is on display here, with a full carbon fiber body weighing it at only 5 pounds. The camera records directly to CFast 2.0 cards in a variety of flavors including ProRes at up to 200 fps and uncompressed ARRIRAW at 30 fps. We include BOTH the ARRIRAW and 4:3 license keys in our Alexa Mini. The Alexa Mini also allows for in-camera CDLs and 3D LUTs. Built-in Wi-Fi gives you remote control of camera functions directly from your iOS or Android device, no app required! Even the motorized ND filters are controllable from the Wi-Fi control! The awesome workflow that Alexa & Amira are known for also work for the Alexa Mini; the camera can record QuickTime ProRes files to clips in the Log C color space or Rec 709, popular for broadcast. Our kit includes everything you need to start shooting, aside from CFast 2.0 cards or a PL or EF lens.

We'll include your choice of EF or PL Lens Mount, you'll see an option at checkout.

Camera type 35 mm format film-style digital camera with lightweight and compact carbon body, switchable active sensor area, support for ARRI MVF-1 viewfinder, built-in remote control capabilities via ARRI Electronic Control System and Wi-Fi, support for cforce motors, built-in motorized ND filters, interchangeable lens mounts and ARRI Lens Data System as well as Lens Data Archive.
Dimensions Length: 185 mm/7.3"
Width: 125 mm/4.9"
Height: 140 mm/5.5"
(camera body with PL lens mount)
Click here for dimensional drawings
Weight ~ 2.3 kg/5 lbs (camera body with titanium PL lens mount)
Sensor 35 mm format ARRI ALEV III CMOS with Bayer pattern color filter array
Active photo sites
(with surround view)
S16 HD: 1600 x 900 (1760 x 980)
HD: 2880 x 1620 (3168 x 1772)
2K: 2868 x 1612 (3154 x 1764)
3.2K: 3200 x 1800 (3424 x 1926)
4K UHD: 3200 x 1800 (3424 x 1926)
4:3 2.8K: 2880 x 2160 (3168 x 2160)
2.39:1 2K Ana.: 2560 x 2145 (3424 x 2202)
HD Ana.: 1920 x 2160 (3424 x 2202)
Open Gate 3.4K: 3424 x 2202 (3424 x 2202)
Shutter Electronic shutter, 5.0° to 356.0°
Exposure latitude 14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart (DRTC-1)
Exposure index EI 800 base sensitivity
Filters Built-in motorized ND filters 0.6, 1.2, 2.1
Lens mounts Titanium PL mount with L-Bus connector and LDS
EF mount
PL mount with Hirose connector and LDS
B4 mount with Hirose connector(A)
Recording media CFast 2.0 memory cards
Recording formats ProRes:
S16 HD: 1920 x 1080 (up-sampled from 1600 x 900)
HD: 1920 x 1080
2K Cine 16:9: 2048 x 1152
3.2K: 3200 x 1800
4K UHD: 3840 x 2160 (up-sampled from 3.2K)
4:3 2.8K: 2880 x 2160 (padded to 2944 x 2160)

Anamorphic ProRes formats with 2x in-camera de-squeeze:
HD Anamorphic: 1920 x 1080*
2.39:1 2K Anamorphic: 2048 x 858*

MXF/ARRIRAW (in-camera recording to MXF-wrapped ARRIRAW files):
2.8K 16:9: 2880 x 1620**
Open Gate: 3424 x 2202***

MXF/ARRIRAW Open Gate modes with active image area matching 4:3 ProRes modes:
4:3 2.8K (OG 3.4K): 2880 x 2160 (Recording in Open Gate 3.4K)***
2.39:1 Ana. (OG 3.4K): 2560 x 2145 (Recording in Open Gate 3.4K)***
16:9 HD Ana. (OG 3.4K): 1920 x 2160 (Recording in Open Gate 3.4K)***

*) requires ALEXA Mini 4:3 License Key,
**) requires ALEXA Mini ARRIRAW License Key,
***) requires both ALEXA Mini 4:3 and ARRIRAW Licenses Keys

Click here for a drawing with details about the recording areas, surround views and framelines
Recording codec ProRes 4444XQ, 4444, 422 (HQ), 422, 422(LT), MXF/ARRIRAW
Recording frame rates 16:9
ProRes HD 0.75 - 200 fps
ProRes S16 HD 0.75 - 200 fps
ProRes 2K 0.75 - 200 fps
ProRes 3.2K 0.75 - 60 fps
ProRes UHD 0.75 - 60 fps
MFX/ARRIRAW 16:9 2.8K 0.75 - 48 fps

4:3
ProRes 4:3 2.8K 0.75 - 50 fps

6:5*
ProRes 2:39:1 2K Ana. 0.75 - 120 fps

8:9**
ProRes HD Ana. 0.75 - 120 fps

Open Gate
MFX/ARRIRAW 3.4K Open Gate 0.75 - 30 fps

* 4:3 cropped
** Center crop from anamorphic
(1) Minimum frame rate is always 0.75 fps
(2) The „recording resolution“ determines the number of horizontal pixels that will be recorded (the number of vertical pixels is dependent on the recording file type and sensor mode)

Click here for a detailed table of frame rates
Color output Rec 709, custom look or Log C
Look control Import of custom 3D LUT, ASC CDL parameter (slope, offset, power, saturation)
Adjustable image parameters Knee, gamma, saturation, black gamma, saturation by hue
Focus and exposure control Peaking, zebra, false color, waveform
White balance Manual and auto white balance
Sound level < 20 dB(A) at standard frame rates
Environmental '-20° C to +45° C (-4° F to +113° F) @ 95% humidity max, non-condensing splash and dust-proof through sealed electronics
Viewfinder Multi Viewfinder MVF-1 (OLED and LCD) with flip-out LCD screen and military-grade connector to camera Camera Control Panel (CCP-1) LCD control panel with option to daisy-chain MVF-1
Control interface Soft buttons and OSD on SDI output, integration of Transvideo Starlite HD5-ARRI touch interface WCU-4 hand-unit with control over operational parameters.
ARRI lens motor control Built-in white coded radio interface for ARRI lens and camera remote control LBUS motor output for daisy-chainable cforce lens control motors Lens Data Archive
Wi-Fi remote control Built-in Wi-Fi interface and web-based remote control from phones, tablets and laptops
Custom control Optional GPIO interface for integration with custom control interfaces
Power input Lemo 8-pin, 10.5-34 V DC
Video outputs 2x HD-SDI out 1.5G and 3G: uncompressed HD video with embedded audio and metadata, 6G SDI in UHD and 3.2K recording modes.
Inputs SDI-Genlock (optional activation through ARRI Service), Timecode (in and output)
Other interfaces USB 2.0 (for user sets, looks etc.)
Ethernet for service and web remote control
EXT accessory interface w. RS pin and unregulated power output (outputs battery voltage)

Arri Alexa Mini Cage w/ Nato, VF Arm & Bracket

Arri Alexa Mini NATO Top Handle

Arri Alexa Mini Baseplate

Arri Alexa Mini Dovetail Clamp w/ Screws

Arri Alexa Mini Safety Dovetail

Arri Alexa Mini A Box w/ Screw

Arri Alexa Mini NATO Rosette

Arri Alexa Mini NATO Rosette

RED Sidewinder Multi-Tool with Case

Arri Alexa Mini EVF

Arri Alexa Mini 4 Pin XLR Cable

Arri Alexa Mini 4 Pin XLR AC Adapter

Arri Alexa Mini 2x 15mm Rods

Anton Bauer G90 Battery

Anton Bauer G90 Battery

Anton Bauer Twin Battery Charger

Universal Power Cable

Universal Power Cable
